Introduction

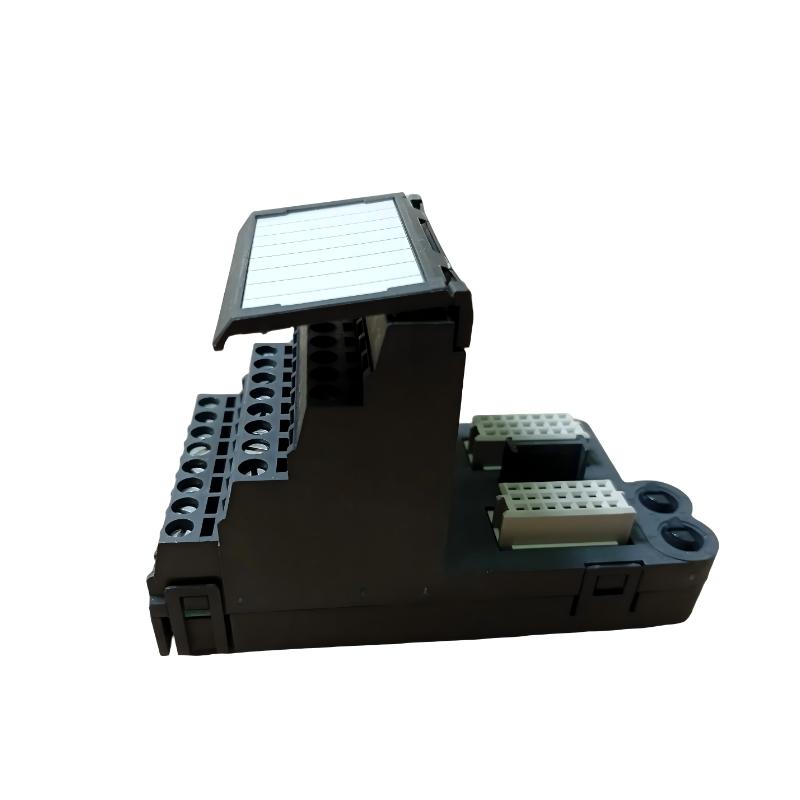

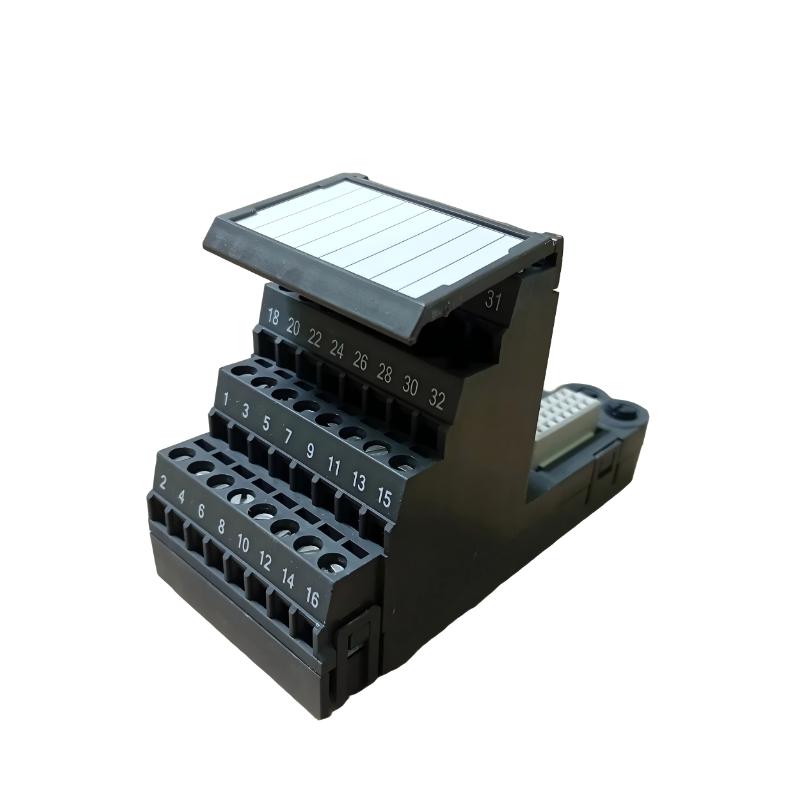

Emerson VE4003S6B1 Analog Input Card is a practical solution for organizing and consolidating analog input wiring from field sensors into a control system. It streamlines signal routing, reduces panel clutter, and supports clean integration with Emerson I/O architectures. For plants relying on multiple analog sensors for process monitoring — such as chemical, water treatment, or utilities — it offers a reliable termination interface that simplifies system wiring and eases maintenance.

Technical Specifications

Parameter	Details
Component Type	Analog Input Card / Termination Interface
Model	VE4003S6B1
Input Types	Analog input loops (current or voltage, system dependent)
Function	Consolidation and routing of analog signals to I/O modules
Wiring Type	2‑wire or 4‑wire analog loops
Construction	Industrial‑grade with EMI and vibration tolerance
Dimensions	107 × 41 × 105 mm
Weight	0.5 kg
Compatibility	Emerson analog I/O modules and control systems

Recommended Related Components

Model	Purpose / Description
Emerson VE4000	Analog input I/O module for processing signals from the card
Emerson VE4003S2B9	16‑channel 2‑wire AI terminal block — alternative input interface
Emerson VE4010	Redundant I/O architecture for critical processes
Emerson VE4040	Standard analog input module for current or voltage signals
Emerson VE4050	Digital input module for discrete sensors and switches
Emerson VE4051	Digital output module for actuators and alarms
Emerson VE4060	Communication interface module for network connectivity
Emerson VE4080	Redundant power supply unit for I/O racks
Emerson VE4070	I/O expansion module to increase channel capacity
Emerson VE4090	Safety interface module for critical safety applications

Popular Related Components

Model	Purpose / Description
Emerson VE4000	Standard analog input I/O module
Emerson VE4010	Redundant processor / I/O system for high-reliability applications
Emerson VE4020	Digital I/O module series for discrete signals
Emerson VE4030	I/O termination block for mixed signals
Emerson VE4040	Analog input module for current/voltage signals
Emerson VE4050	Digital output module for actuators and alarms
Emerson VE4060	Network communication module — connectivity extension
Emerson VE4070	I/O expansion module — system scalability
Emerson VE4080	Power supply module — stable rack power
Emerson VE4090	Safety interface module — for critical safety control

Applications

The Emerson VE4003S6B1 Analog Input Card is designed for centralized acquisition of analog signals in industrial control panels. It is commonly used in process instrumentation setups — such as chemical plants, refineries, water treatment facilities, and utility plants — where multiple analog sensors (e.g. 4–20 mA loops, voltage outputs) feed data into a control or DCS system. The card simplifies wiring, organizes analog input termination, and supports efficient field-to-controller signal conversion for process monitoring and control.

Advantages

Handles multiple analog inputs in a compact form factor, reducing cabinet footprint.
Robust construction ensures stable connections under industrial vibration, temperature, and EMI conditions.
Simplifies wiring and maintenance by consolidating input loops into a single module.
Compatible with Emerson control systems and I/O architectures, facilitating seamless integration.
Facilitates organized, modular analog input wiring, aiding diagnostics and system expansion.

FAQs

What input types does VE4003S6B1 support?
It supports standard analog input signals from 2‑wire or 4‑wire sensors, typically current loop (e.g. 4–20 mA) or voltage outputs.
How many analog channels can this card handle?
It manages multiple analog input channels (exact number depends on wiring and system configuration).
Is it suitable for industrial environments?
Yes — designed for resilience against vibration, EMI, and temperature fluctuations typical in industrial plants.
Does the card perform signal conditioning or scaling?
No — it primarily serves as a termination and routing interface. Signal conditioning and scaling are handled by the main I/O module or controller.
Can it be used in redundant or fail-safe systems?
Yes — when paired with compatible Emerson redundant I/O architectures, it supports standard redundant configurations.
Is the installation and wiring process simplified?
Yes — the card consolidates multiple analog inputs into a structured, maintainable block which simplifies wiring and labeling.
Does the card include diagnostic functions?
No — diagnostics rely on the main I/O module or controller; the card itself is a passive termination interface.
What kind of sensors can be connected?
Any analog sensors outputting standard industrial analog signals (current or voltage), e.g. transmitters, analog detectors.
Can wiring be updated or expanded later?
Yes — its modular structure and standardized connections make future expansions or re-wiring manageable.
What maintenance is required?
Periodic inspection of terminal connections and ensuring secure wiring; no active maintenance is needed since it's a passive component.
