Introduction

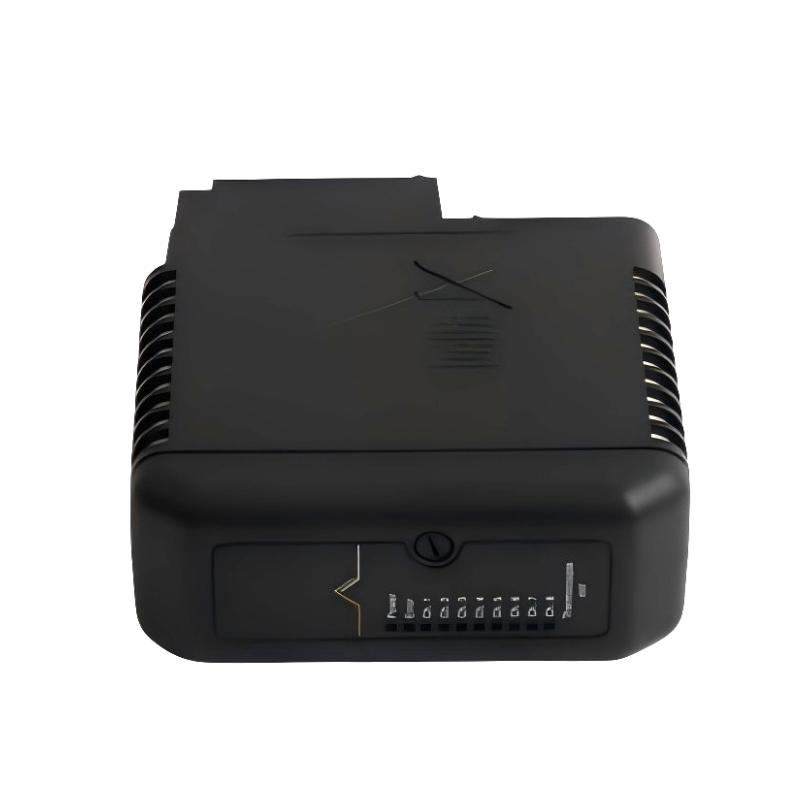

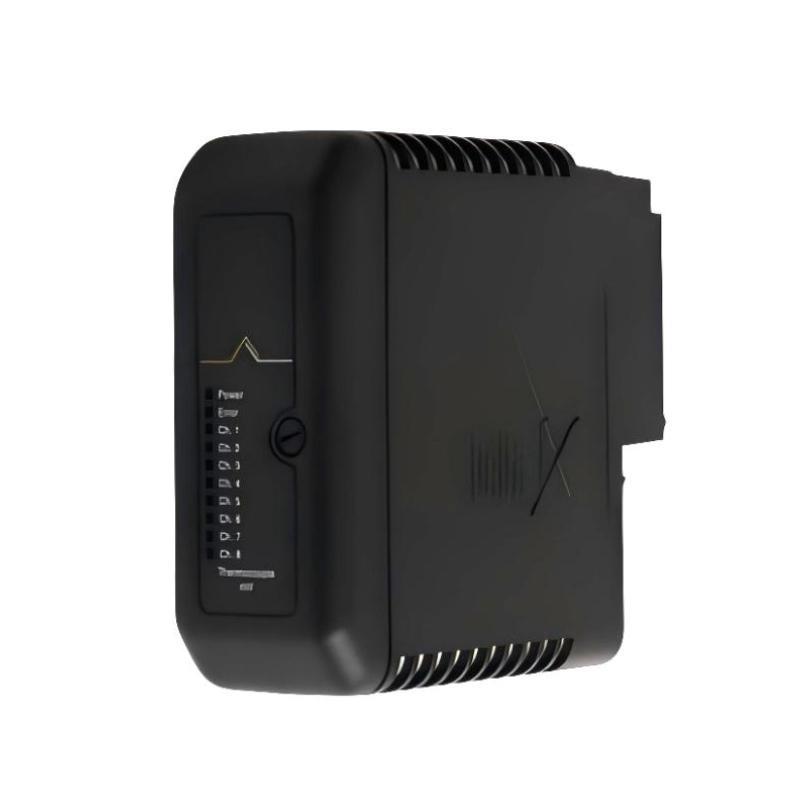

The Emerson VE4003S5B1 Thermocouple Input Module delivers reliable temperature monitoring in process and industrial control systems. Its compact and rugged design supports multiple thermocouple inputs while ensuring accurate measurements and compatibility with Emerson M-series I/O systems. The module is ideal for plants that require precise temperature control and robust, maintainable wiring solutions.

Technical Specifications

Parameter	Details
Module Type	Thermocouple Input Module
Model	VE4003S5B1
Input Type	Thermocouples (types J, K, T, E, configurable)
Channels	Multiple channels supported
Diagnostics	Detects open circuit or wiring faults
Redundancy	Compatible with redundant M-series systems
Environmental	Industrial-grade vibration, EMI, and temperature tolerance
Dimensions	107 × 41 × 105 mm
Weight	0.281 kg
Compatibility	Emerson M-series I/O modules and racks

Recommended Related Components

Model	Description
Emerson VE4000	Analog input module
Emerson VE4003S6B1	2/4-wire AI card
Emerson VE4040	Analog input module for current/voltage
Emerson VE4050	Digital input module
Emerson VE4051	Digital output module
Emerson VE4060	Communication interface module
Emerson VE4070	I/O expansion module
Emerson VE4080	Redundant power supply
Emerson VE4030	I/O termination block
Emerson VE4090	Safety interface module

Popular Related Components

Model	Description
Emerson VE4000	Standard analog input module
Emerson VE4010	Redundant I/O system
Emerson VE4020	Digital I/O modules
Emerson VE4030	I/O termination block
Emerson VE4040	Analog input module
Emerson VE4050	Digital output module
Emerson VE4060	Network communication module
Emerson VE4070	Expansion I/O module
Emerson VE4080	Power supply module
Emerson VE4090	Safety interface module

Applications

The Emerson VE4003S5B1 Thermocouple Input Module is designed for accurate temperature measurement in industrial control systems. It is widely used in chemical, petrochemical, power generation, water/wastewater treatment, and manufacturing plants. The module collects thermocouple signals from multiple sensors and delivers reliable data to Emerson I/O racks or control systems for process monitoring and control loops.

Advantages

Dedicated to thermocouple inputs, ensuring precise temperature measurement.
Compact, modular design allows easy installation in high-density control panels.
Industrial-grade robustness ensures reliable operation under vibration, EMI, and temperature variations.
Simplifies wiring management for multiple thermocouple sensors.
Fully compatible with Emerson M-series I/O systems for seamless integration.

FAQs

What types of sensors does the VE4003S5B1 support?
It supports various thermocouples (e.g., type J, K, T, or E depending on configuration).
Does it handle cold-junction compensation?
Yes, built-in compensation ensures accurate readings.
How many thermocouple channels are available?
Multiple channels are supported; exact number depends on system design.
Can it operate in industrial environments?
Yes, it tolerates vibration, EMI, and temperature fluctuations typical of industrial sites.
Is it compatible with redundant systems?
Yes, it can be integrated into Emerson redundant I/O architectures.
Does it provide diagnostics?
Yes, the control system can detect open thermocouples or wiring faults.
Can it be hot-swapped?
No, replacement or wiring changes should be done with system power off.
What is the module’s function in a control loop?
It converts thermocouple signals into digital data for monitoring, recording, or control.
What maintenance is needed?
Regular inspection of connections and verifying signal integrity.
Can it integrate with other Emerson I/O modules?
Yes, it works seamlessly with other M-series analog and digital modules.
