Introduction

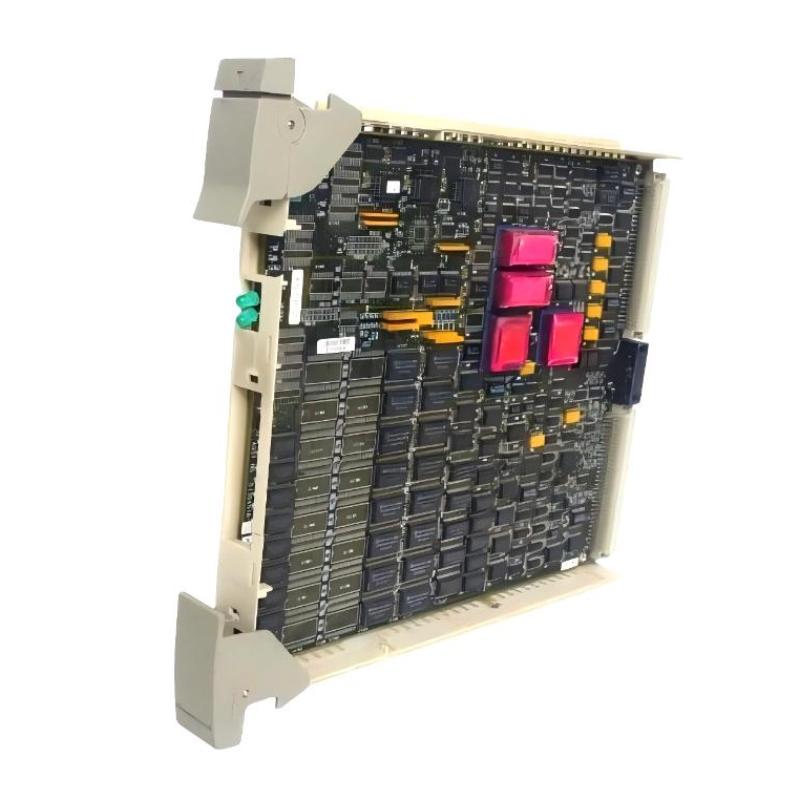

The Honeywell MC-PPIX02 Pulse Input Processor is engineered for accurate, high-speed pulse signal acquisition in industrial and process automation systems. Its compact design simplifies installation while maintaining robust performance in demanding environments. With built-in diagnostics and seamless integration with Honeywell control platforms, the MC-PPIX02 ensures precise data capture, real-time monitoring, and reliable operation for both new installations and system expansions.

Technical Specifications

Parameter	Specification
Function	Pulse Input Processor
Input Channels	Multiple pulse inputs
Signal Type	Pulse signals (flow meters, encoders, turbines)
Response Time	<5 ms
Isolation	Channel-to-channel isolation
Operating Temperature	-20°C to 70°C
Storage Temperature	-40°C to 85°C
Power Consumption	2.5 W typical
Mounting	DIN rail or rack
Dimensions	246 × 105 × 27 mm
Weight	0.8 kg

Recommended Related Models

Honeywell MC-PPIX03 Pulse Input Processor
Honeywell 8C-TDIL01 Numeric Input Module
Honeywell CC-GAIX11 Analog Input Module
Honeywell 8C-PAZHA1 Analog Input Module

Popular Related Models

Honeywell MC-PPIX02-EX for hazardous locations
Honeywell MC-PPIX04 High-Speed Pulse Processor
Honeywell 8C-PDIO01 Safety Digital I/O Module
Honeywell FS-PDC-IOIP1A Power Splitter Cable

Applications

The Honeywell MC-PPIX02 Pulse Input Processor is designed for precise and reliable pulse signal processing in industrial systems. Typical applications include:

Capturing and processing pulse signals from flow meters, turbines, and encoders
Integration with Honeywell ControlEdge, Experion PKS, and PLC systems
Redundant and safety-critical pulse signal acquisition
Industrial process monitoring and automation systems
OEM and system expansions requiring accurate pulse input handling

Advantages

Key benefits of the MC-PPIX02 include:

High-speed pulse signal processing for real-time monitoring
Compact, lightweight design for easy cabinet integration
Robust construction suitable for industrial environments
Seamless compatibility with Honeywell control and monitoring platforms
Built-in diagnostics to quickly identify input errors and reduce downtime

Technical FAQs

What type of signals does it process?
Pulse signals from flow meters, encoders, and turbines.
How many input channels are available?
Typically supports multiple pulse input channels (check configuration).
What is the operating temperature range?
-20°C to 70°C.
Is it suitable for safety-critical systems?
Yes, designed for redundant and safety applications.
How is the module powered?
Powered via standard Honeywell I/O bus with low power consumption.
Does it provide diagnostic features?
Yes, monitors pulse signal integrity and channel errors.
What is the response time?
Updates in milliseconds for real-time pulse acquisition.
Is field calibration required?
Factory-calibrated; optional software adjustments supported.
How is it mounted?
DIN rail or Honeywell standard rack installation.
Which systems is it compatible with?
Honeywell ControlEdge, Experion PKS, and standard PLC interfaces.
