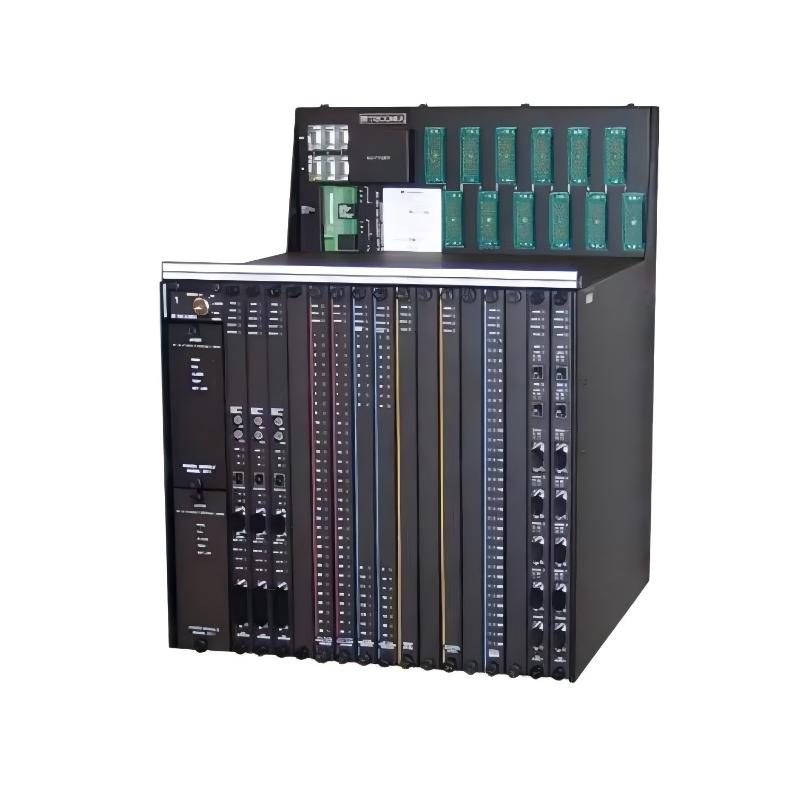

Invensys Triconex 8101 7400028-100 15-Slot Expansion Chassis

Applications

The Invensys Triconex 8101 15-Slot Expansion Chassis is designed for large-scale, safety-critical automation architectures that demand both capacity and absolute reliability. Typical use cases include:

• Expansion of Triconex safety instrumented systems in refineries and petrochemical plants

• Distributed process control networks requiring additional I/O and communication modules

• High-availability applications in power generation, LNG, and offshore production

• Large emergency shutdown (ESD) and fire & gas (F&G) systems

• System modernization projects that require scalable, backward-compatible expansion

Advantages

• High Slot Density – Expands system capacity significantly with fifteen available module positions.

• Rugged Industrial Construction – Engineered for long operating life in demanding plant conditions.

• Superior System Scalability – Allows plants to grow their Triconex safety systems as processes evolve.

• Stable, Noise-Resistant Backplane – Ensures consistent high-integrity communication across all installed modules.

• Simplified System Integration – Fully compatible with Triconex controllers, I/O modules, and communication units.

Technical FAQs

1. How many module slots are available?
   15 slots for I/O, communication, or controller expansion modules.

2. Is this chassis compatible with modern Triconex systems?
   Yes, it integrates seamlessly with existing Triconex architecture.

3. Can the chassis operate continuously in high-temperature environments?
   Yes, it is built for 24/7 duty in challenging industrial applications.

4. Does it support redundant configurations?
   Yes, redundancy is supported depending on the installed modules.

5. Is the chassis suitable for ESD or F&G applications?
   Absolutely—widely used in SIL3-rated safety systems.

6. How is the chassis mounted?
   Standard industrial mounting compatible with control room rack systems.

7. Does it require special cooling?
   Typically no, but proper cabinet ventilation is recommended.

8. Can it support high-density I/O modules?
   Yes, the backplane is optimized for both standard and high-density modules.

9. Is it field-serviceable?
   Yes, modules can be inserted or replaced without removing the chassis.

10. What type of industries typically use this chassis?
    Oil & gas, petrochemical, power generation, marine, and industrial automation sectors.
