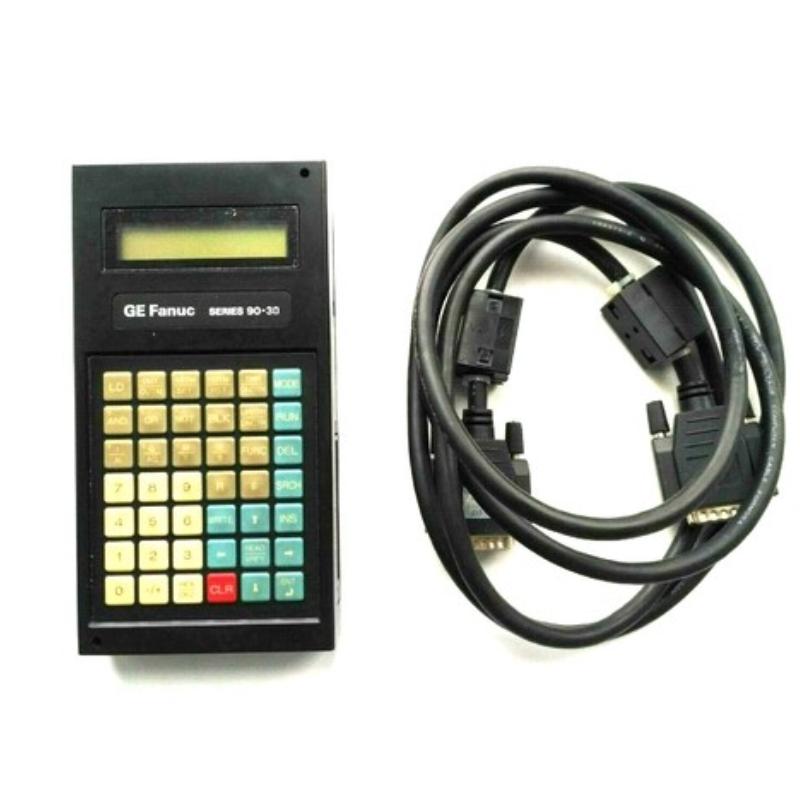

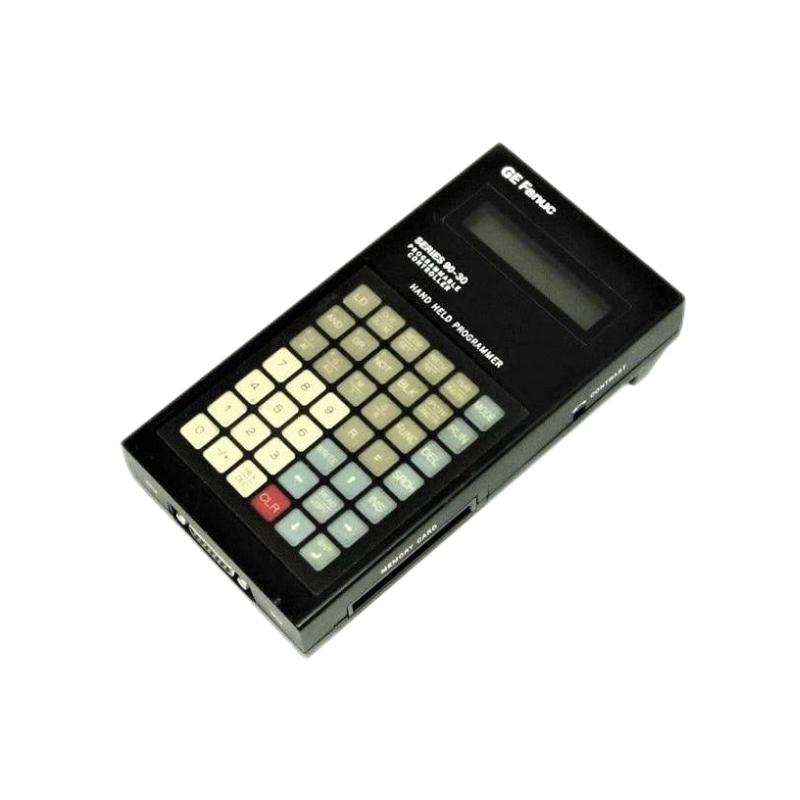

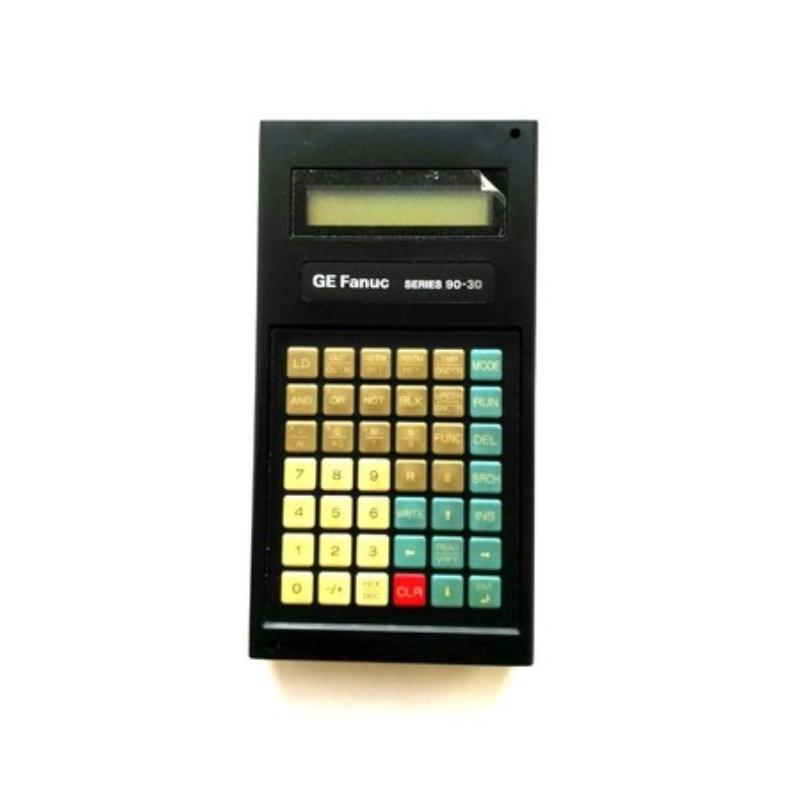

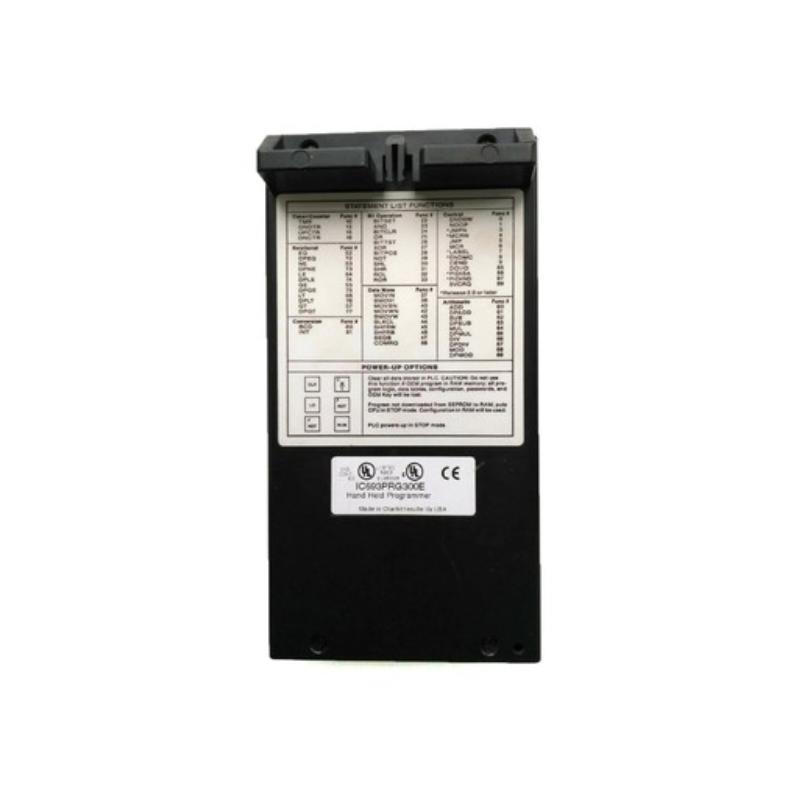

The GE IC693PRG300 is a dedicated handheld programming device developed for the GE Fanuc Series 90-30 PLC platform. It provides technicians and engineers with a portable interface for monitoring, configuring, troubleshooting, and basic program editing directly on PLC hardware without the need for a PC-based programming system. Its intuitive keypad and display make onsite tasks more efficient, especially during commissioning, maintenance, or when quick adjustments are needed.

Technical Specifications

Specification	Description
Module Type	Hand-Held Programmer (HHP)
Compatible PLC	GE Fanuc Series 90-30
Display	2-line × 16-character LCD
Keypad	42-key tactile feedback keypad
Connector	15-pin D-sub for PLC serial port
Memory	Non-volatile (expandable via memory card slot)
Operating Modes	Program, Protection, Data, Configuration
Mounting	Portable handheld device
Environment	Industrial control environments

Dimensions (L×W×H): ~203 × 76 × 102 mm
Weight: ~0.32–0.75 kg (varies by sourcing)

Recommended Related Models

GE IC693CBL303 – Serial cable to connect programmer to PLC CPU
GE IC693CPU374 – High-performance Series 90-30 CPU module
GE IC693CMM311 – Communications interface module
GE IC693MDL752 – Standard digital input module

Popular GE Series 90-30 Models

GE IC693CPU366 – Mid-range CPU for general control
GE IC693DNM200 – DeviceNet master communication module
GE IC693DNS201 – DeviceNet slave communication module
GE IC693DSM314 – High-density discrete output module

Applications

The IC693PRG300 is ideal for use when a PC isn’t readily available or where quick, local PLC adjustments are needed. Typical scenarios include:

On-site logic program monitoring and debugging
Configuration of I/O and PLC parameters
Routine maintenance checks without a laptop
Emergency troubleshooting in process or machine control systems
Field diagnostics and protection setup

It supports four operating modes — Program, Protection, Data, and Configuration — enabling flexibility in how the device interacts with the PLC and its logic.

Advantages

Portable and ergonomic handheld design for field use
No communication configuration required to connect directly to the PLC
Tactile keypad and clear display for intuitive control
Expandable non-volatile memory for data backup and restoration
Supports key tasks like editing, monitoring, and I/O parameter configuration
Useful for maintenance, testing, and commissioning workflows

This tool enhances on-site productivity by simplifying many PLC interaction tasks that would otherwise require full programming software.

Technical FAQs

What is the GE IC693PRG300 used for?
It is a handheld programmer used to monitor, configure, and debug Series 90-30 PLC logic and parameters without a PC.
How does it connect to the PLC?
The device connects via a 15-pin D-sub serial connector to the CPU’s serial port.
Does it require communication settings before use?
No — no communication parameter configuration is required.
What display does it use?
It features a two-line, sixteen-character LCD display.
How many keys does the keypad have?
It has a 42-key tactile feedback keypad.
Can it edit full user logic programs?
It can create, modify, and debug logic in many Series 90-30 CPUs, but it may not fully support models with program numbers 350 and above.
Does it have memory storage?
Yes — it includes a non-volatile memory slot for expandable program and data storage.
Can it be used while PLC power is on?
Yes — it can connect or disconnect while the PLC is powered.
Is it still supported by the manufacturer?
The device is considered discontinued and often sold as surplus, though it remains functional for legacy systems.
What operating modes does it support?
It supports Program, Protection, Data, and Configuration modes.
