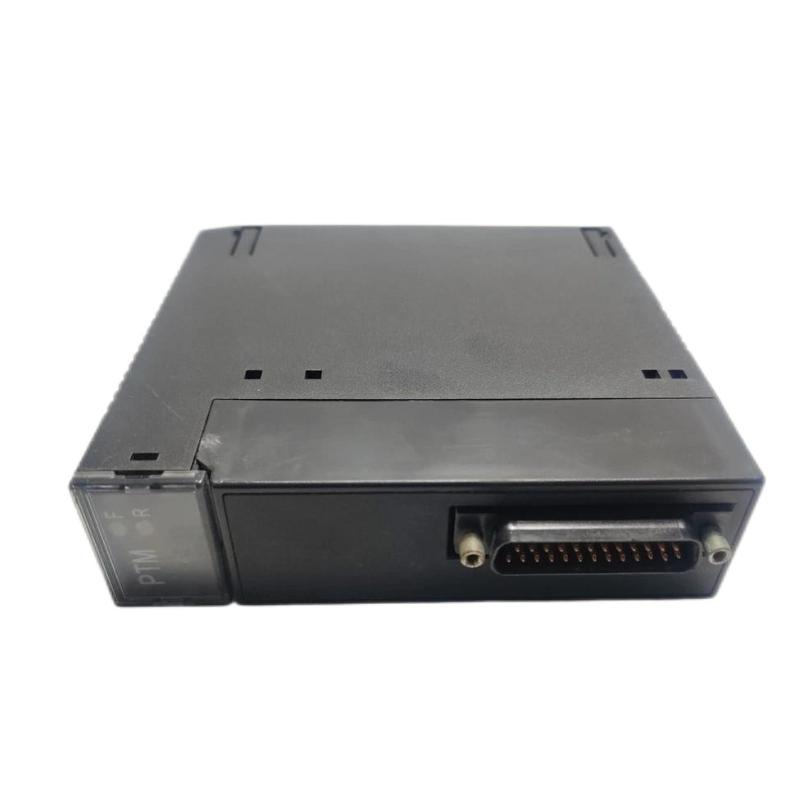

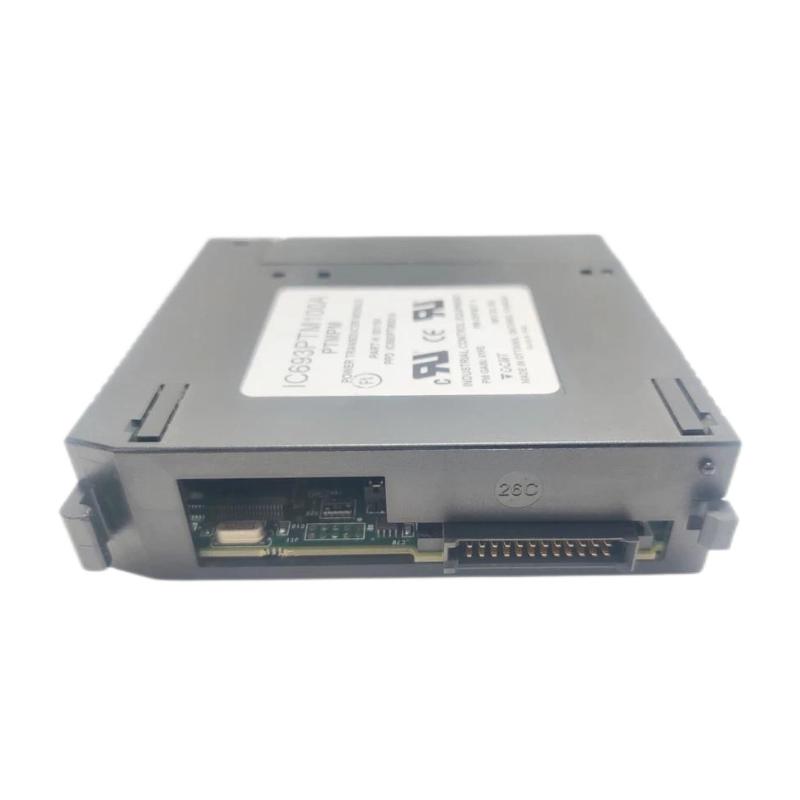

The GE IC693PTM100 is a power transducer module developed for the GE Fanuc Series 90-30 PLC family. It brings accurate electrical power measurement and monitoring directly into the PLC environment, enabling control systems to measure and analyze real-world electrical parameters such as voltage, current, power, energy, and frequency. As part of the specialty module lineup, the IC693PTM100 enhances automation solutions by allowing PLC logic to respond to energy usage, detect faults, or support generator control and load management strategies. This module is offered as a matched set — a processing module, interface board, and a 0.5 m interface cable — for easy integration into industrial control systems.
Technical Specifications
| Specification | Description |
|---|---|
| Module Type | Power Transducer Module |
| Function | Electrical parameter measurement & monitoring |
| Compatible PLC | GE Fanuc Series 90-30 |
| Components Included | Processing module, interface board, 0.5 m interface cable |
| Measured Parameters | Voltage, current, real/reactive/apparent power, energy, frequency, power factor |
| Input Interface | CT (current transformer) & PT (potential transformer) inputs |
| Mounting | Series 90-30 baseplate and panel interface board |
| Operating Environment | Industrial control cabinets |
| Dimensions (L×W×H) | Approx. 140 × 38 × 102 mm (module only) |
| Weight | ~0.50 kg (module only) |
Note: The processing module installs on the PLC backplane, while the interface board mounts near the field connections.
