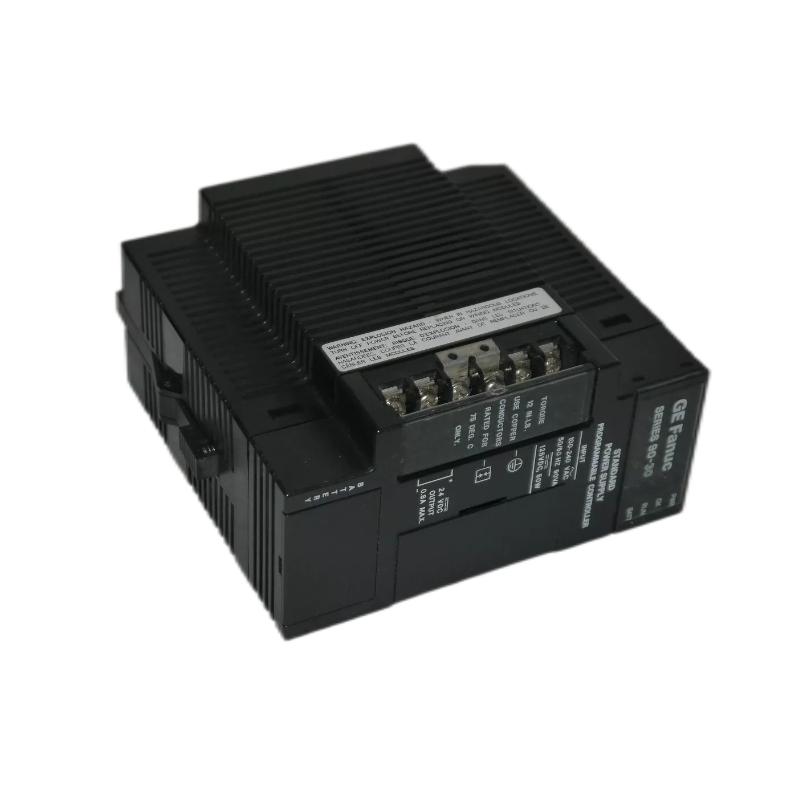

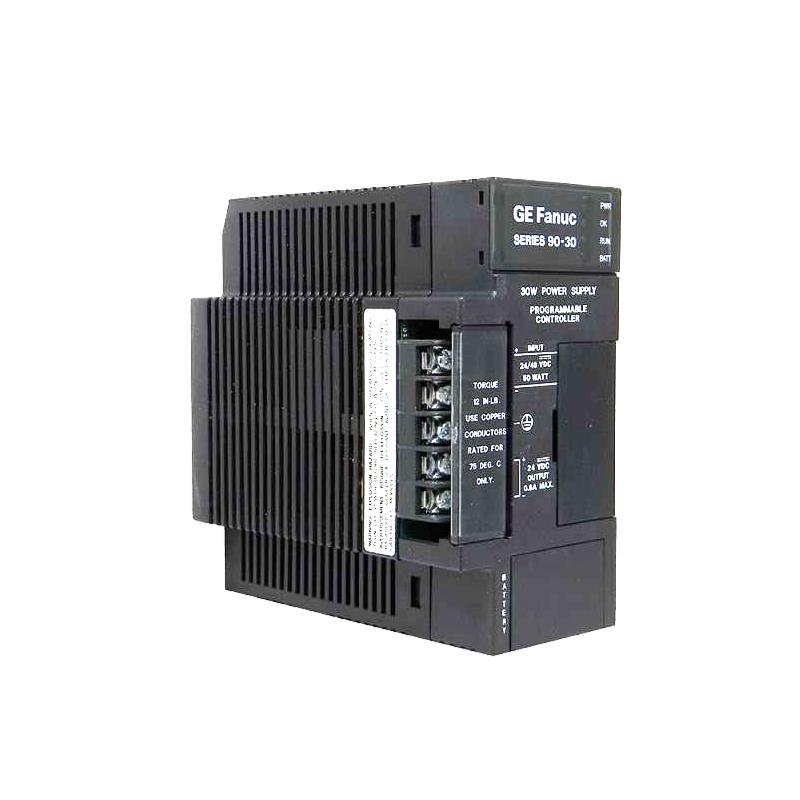

GE IC693PWR325 Power Supply Module for Series 90-30 PLC Systems
GE IC693PWR325 Power Supply Module for Series 90-30 PLC Systems
0.0
Points
Brand:GE Fanuc PLC Item No.:GE IC693PWR325 Product Origin:USA Product Dimensions:140 × 38 × 102 mm Product Weight:0.57 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The GE IC693PWR325 is a DC power supply module crafted for the GE Fanuc Series 90-30 PLC family. Designed to deliver clean, regulated power from DC sources, this module supports critical PLC logic and I/O modules with stable voltages — a foundational element for reliable automation control. Its ability to operate from a broad DC range makes it especially suitable for industrial environments that use battery backup, solar support, or 24 V/48 V DC distributed power systems.
This DC-powered supply is engineered to maintain regulated output voltages to power logic circuits and I/O expansion modules for stable operation of the Series 90-30 PLC system.
Recommended Related Models
GE IC693CPU374 – High-performance Series 90-30 CPU module
GE IC693CMM311 – Serial communications interface module
GE IC693MDL730 – 32-point digital input module
GE IC693DSM314 – High-density discrete output module
Popular GE Series 90-30 Models
GE IC693CPU366 – Mid-range PLC CPU module
GE IC693DNM200 – DeviceNet master communication module
GE IC693DNS201 – DeviceNet slave communication module
GE IC693MDL752 – Standard 16-point digital input module
Applications
The IC693PWR325 is ideal for DC-powered automation architectures, especially where traditional AC mains may not be available or where DC redundancy is required. Typical uses include:
DC-powered industrial control panels
Battery-backed automation systems
Remote or mobile PLC installations
Solar or distributed DC power environments
PLC retrofit applications with existing DC infrastructure
By supplying both logic and field power rails directly from DC supplies, this module helps achieve robust system uptime and reduces reliance on separate external power converters.
Advantages
Flexible DC input range supports 24 V and 48 V sources, adapting to diverse power environments.
Regulated multi-voltage outputs provide both logic and isolated I/O power.
Compact rack-mount design fits standard Series 90-30 baseplates.
RS-485 diagnostics port enables status and performance monitoring.
Industrial-rated performance ensures stable operation in harsh conditions.
This power supply module simplifies system design by combining essential power rails and diagnostics in one unit suitable for DC-centric PLC installations.
Technical FAQs
What input voltages are supported by the IC693PWR325?
It operates from a nominal 24 VDC or 48 VDC source with a usable range of 21–56 VDC.
How much total power can this power module supply?
Up to 30 Watts total, divided among its regulated outputs.
What output voltages are provided?
+5 VDC for logic, +24 VDC relay, and +24 VDC isolated power.
Where is the IC693PWR325 installed?
In the dedicated leftmost slot of a Series 90-30 PLC baseplate.
Does the module require AC mains?
No — it is designed to operate solely from a DC input source.
What is the peak inrush current rating?
Approximately 4 A for up to 100 ms during startup.
Can this module power both logic and I/O modules?
Yes — its outputs are tailored to support CPU logic and I/O power needs.
Is diagnostic communication supported?
Yes — it includes an RS-485 serial port for diagnostic access.
Is this module still in production?
It has been discontinued by the manufacturer and is commonly available as new surplus or refurbished inventory.
What happens if input voltage falls below 21 VDC?
The module may not start reliably if the input supply drops below 21 VDC.
