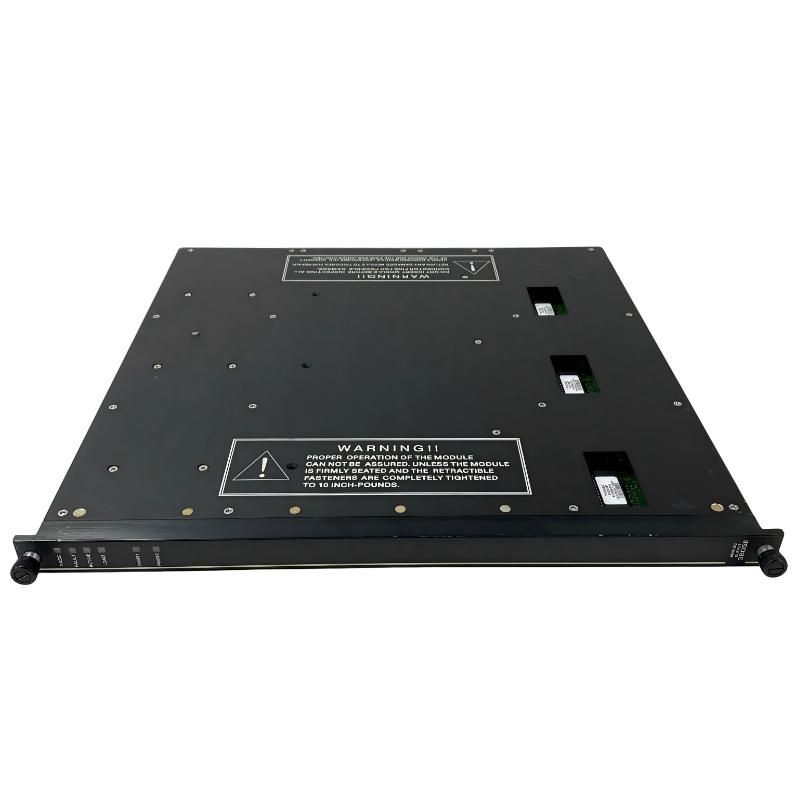

Triconex 3805E Analog Output Module

Applications

The Triconex 3805E is designed for high-integrity industrial systems where precise analog output control is critical. It is widely used in chemical plants, oil & gas facilities, power generation stations, and other mission-critical environments. The module converts digital control signals into accurate analog outputs for field devices such as control valves, actuators, and variable-speed drives, ensuring precise process regulation and operational safety.

Advantages

• High-precision output control, enabling accurate modulation of process devices.

• Redundant-ready design, fully compatible with Triconex Triple Modular Redundant (TMR) systems.

• Robust electrical isolation, protecting downstream devices from voltage spikes and interference.

• Industrial-grade durability, ensuring reliable performance under vibration, temperature variation, and high electrical noise.

• Advanced diagnostics and fault reporting, allowing operators to detect issues early and maintain continuous operation.

• Compact and high-capacity design, providing multiple output channels while optimizing rack space.

FAQs

1. What types of analog outputs does the 3805E support?
It supports standard industrial voltage and current outputs used for actuators, valves, and other control devices.

2. How accurate is the analog output?
The module provides high-resolution output, ensuring precise process control in safety-critical applications.

3. Are the output channels isolated?
Yes, each channel is electrically isolated to prevent cross-channel interference and protect field devices.

4. How does the module handle electrical noise?
The module includes robust filtering and conditioning to ensure stable outputs even in electrically noisy environments.

5. Can the module be used in redundant TMR systems?
Yes, it is fully compatible with Triconex Triple Modular Redundant configurations.

6. What diagnostic information is available to operators?
Operators can monitor channel status, output errors, and wiring faults through the Triconex monitoring interface.

7. Can output channels be individually configured?
Yes, each channel can be independently configured for voltage or current output ranges as required.

8. What surge protection is built into the module?
The 3805E includes internal protection against transient voltages and field wiring surges.

9. How does the module respond to faults in field devices?
It detects abnormalities such as open-circuit or shorted devices and reports them to the TMR system.

10. What operating environment conditions can the module withstand?
The module is designed for industrial-grade operation, tolerating high noise, vibration, and temperature fluctuations.
