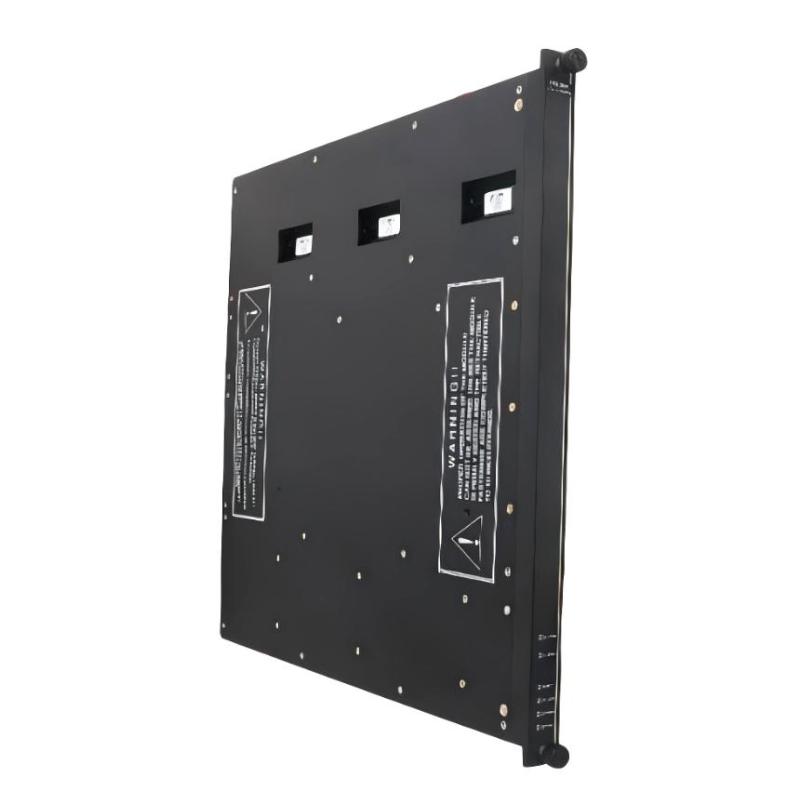

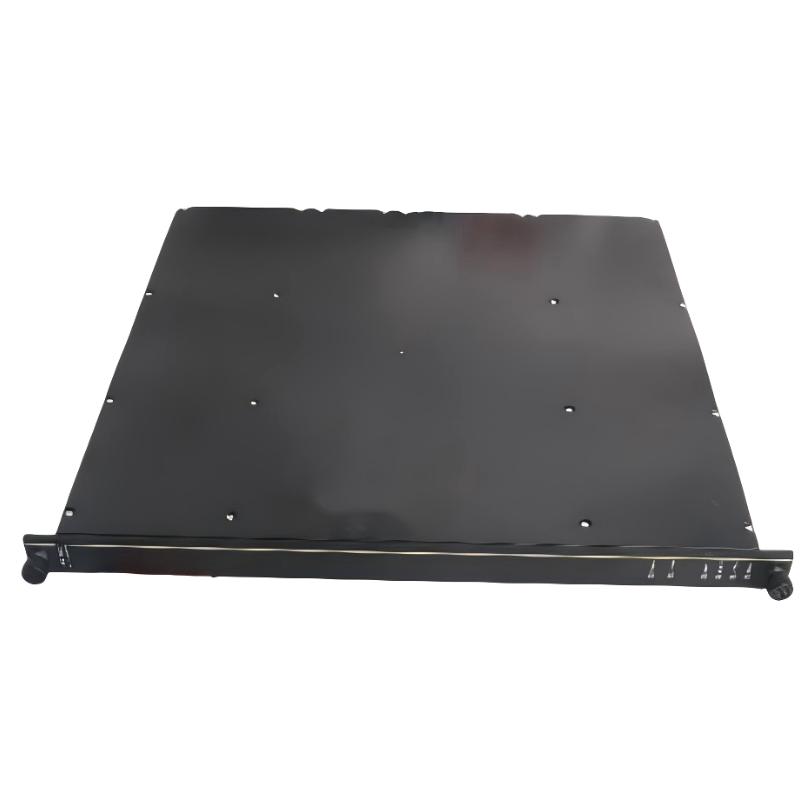

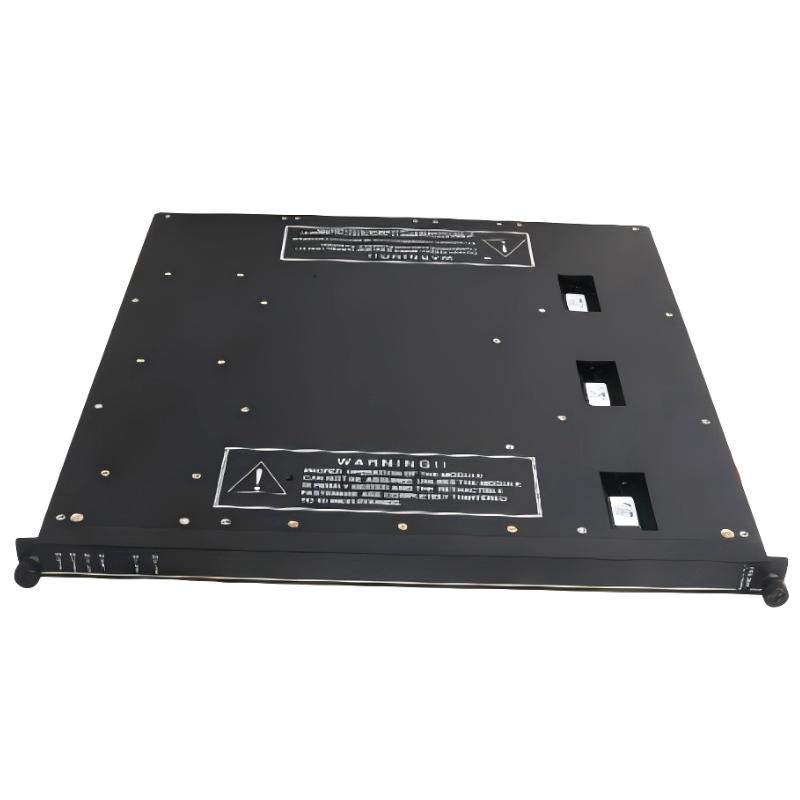

Triconex 3805H Analog Output Module

Applications

The Triconex 3805H is designed for industrial systems that demand precise and dependable analog output for critical process control. It is ideal for oil & gas, chemical processing, power generation, and high-integrity infrastructure applications. The module converts digital commands from safety and process controllers into accurate analog outputs for field devices such as control valves, pumps, and actuators, ensuring precise control of flow, pressure, and temperature in complex process loops.

Advantages

• High-precision analog output, providing stable control over connected field devices.

• Redundancy-ready design, fully compatible with Triconex Triple Modular Redundant (TMR) architectures.

• Robust electrical isolation, protecting outputs from noise, surges, and cross-channel interference.

• Industrial-grade durability, capable of operating reliably under vibration, temperature extremes, and electrical disturbances.

• Advanced diagnostics, helping operators detect wiring faults, channel errors, or abnormal field conditions early.

• Compact and efficient layout, allowing multiple outputs in a single module without increasing cabinet footprint.

FAQs

1. What output signal types does the 3805H support?
It supports standard industrial voltage and current outputs for controlling valves, actuators, and other devices.

2. How accurate are the analog outputs?
The module delivers high-resolution outputs suitable for precise process and safety control.

3. Are the output channels isolated?
Yes, each channel is electrically isolated to prevent interference and protect field devices.

4. How does the module minimize electrical noise effects?
Internal filtering and conditioning circuitry ensure clean, stable analog outputs even in noisy industrial environments.

5. Is the 3805H suitable for TMR systems?
Yes, it is fully compatible with Triconex Triple Modular Redundant configurations.

6. What diagnostics can operators access?
Operators can monitor channel status, detect faults, and check wiring integrity through the Triconex system interface.

7. Can individual channels be configured with different output ranges?
Yes, each channel can be independently configured for current or voltage output as required.

8. How does the module respond to field device failures?
It detects abnormalities like open-circuit or short-circuit conditions and reports them to the host system.

9. What protections are in place for voltage surges?
The module includes built-in surge and transient protection for all output channels.

10. What environmental conditions can the module tolerate?
The module operates reliably under industrial-grade conditions including high noise, vibration, and temperature variations.
