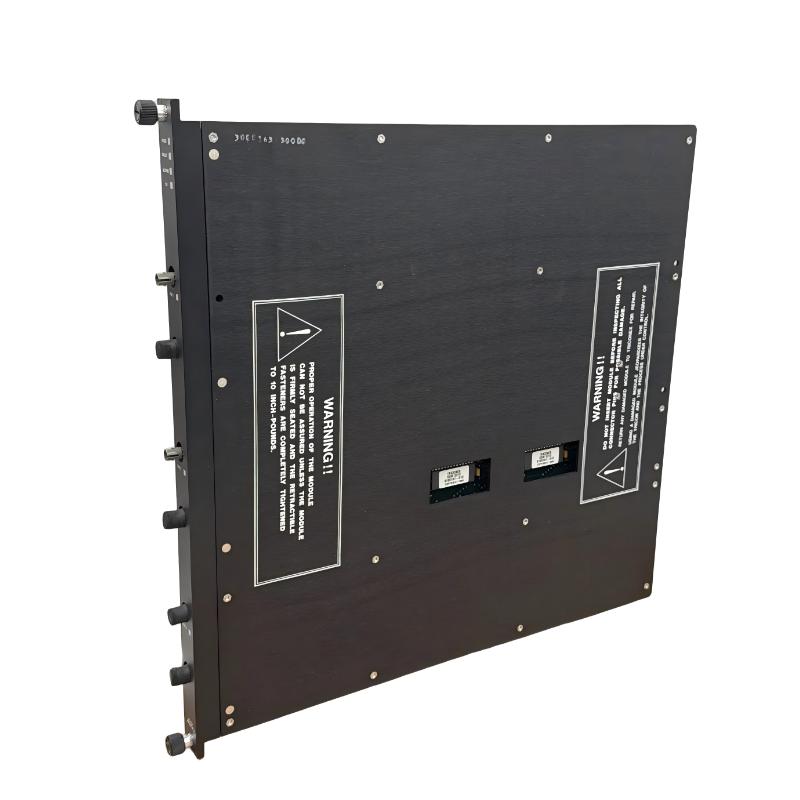

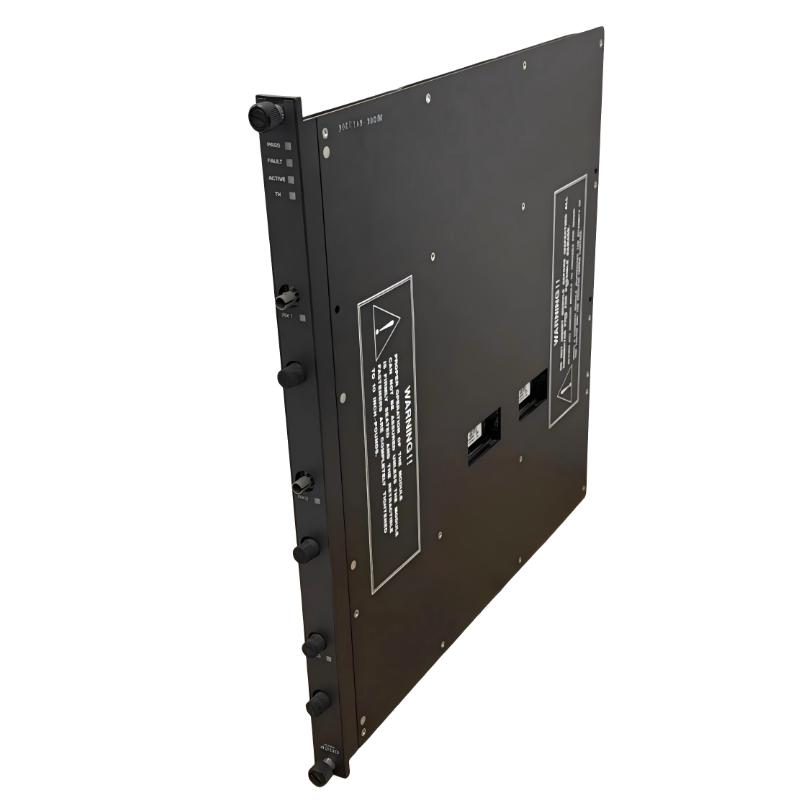

Triconex 4200 Remote Extender Module

Applications

The Triconex 4200 Remote Extender Module is designed for industrial control systems that require reliable extension of I/O signals over long distances. It is ideal for large-scale process plants, including oil & gas, chemical production, power generation, and critical infrastructure facilities. By extending I/O connectivity without compromising signal integrity, the 4200 enables centralized control systems to communicate effectively with remote field instruments, ensuring precise monitoring and control in distributed environments.

Advantages

• Extended I/O reach, allowing centralized control of distant field devices.

• High signal integrity, ensuring data reliability across long-distance connections.

• Redundancy-ready design, fully compatible with Triconex Triple Modular Redundant (TMR) systems.

• Robust industrial-grade construction, capable of operating in harsh environments with high vibration, temperature, and electrical noise.

• Advanced diagnostics, enabling operators to detect communication faults and maintain continuous operations.

• Compact yet high-capacity design, offering multiple I/O connections within a single module footprint.

FAQs

1. What is the primary function of the 4200 Remote Extender?
It extends I/O signals from the main control rack to remote field devices while maintaining data integrity.

2. Can the module operate in TMR systems?
Yes, it is fully compatible with Triconex Triple Modular Redundant configurations.

3. What types of I/O signals does the module support?
It supports both analog and digital I/O, depending on the connected modules and system configuration.

4. How does it maintain signal integrity over long distances?
Through high-quality signal conditioning and isolation circuitry, ensuring minimal degradation.

5. What diagnostics are available for the module?
Operators can monitor link status, detect faults, and check signal integrity through the Triconex system interface.

6. Can it detect wiring or communication faults?
Yes, it continuously monitors connectivity and reports open-circuit, short-circuit, and communication errors.

7. What environmental conditions can the 4200 tolerate?
It is designed for industrial environments with high electrical noise, temperature variations, and mechanical vibration.

8. How many remote connections can it support?
The number of supported connections depends on the configuration and the type of I/O modules used in the system.

9. Is electrical isolation provided for remote channels?
Yes, channels are isolated to prevent interference and ensure safe operation of connected devices.

10. What protections are in place against transient surges?
The module includes built-in surge and transient protection to safeguard signals and connected equipment.
