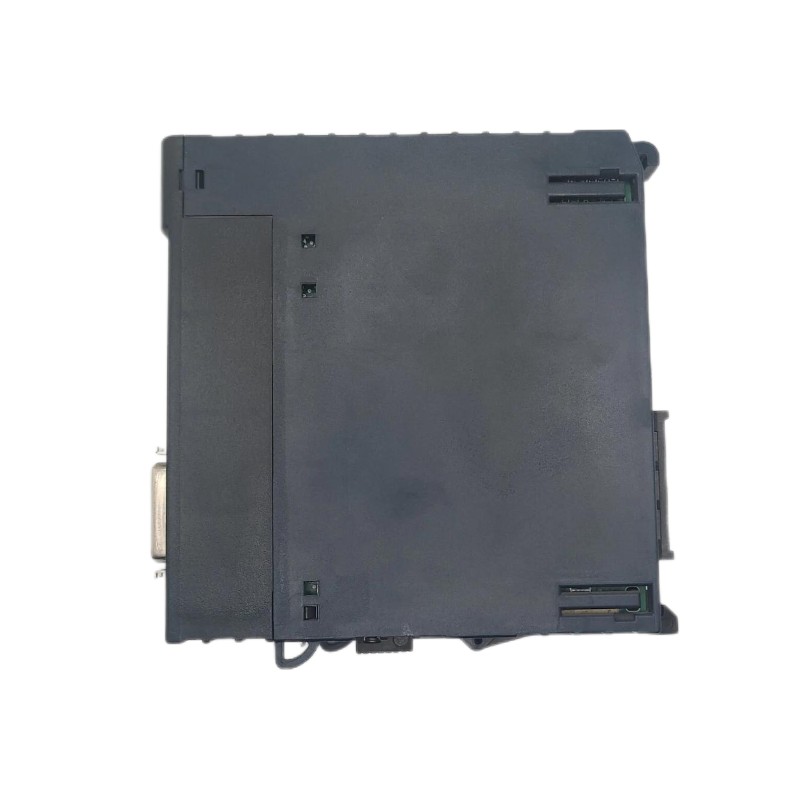

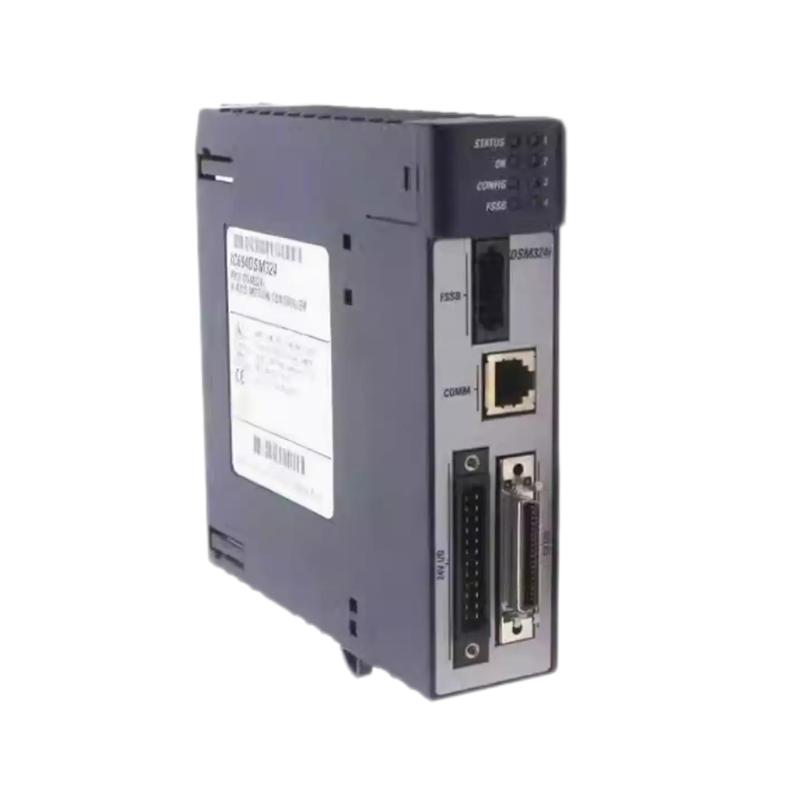

The GE IC694DSM324 is a high-performance motion controller module designed to enhance the motion-control capabilities of GE Fanuc PACSystems RX3i and Series 90-30 PLC systems. This module is optimized for precise, multi-axis servo control, supporting up to four servo axes with advanced motion profiles, electronic CAM, and high-speed logic processing. Its versatility and real-time control performance make it suitable for complex automation tasks such as robotics, packaging lines, CNC indexing, and coordinated motion systems.
Technical Specifications
| Specification | Details |
|---|---|
| Module Type | 4-Axis Motion Controller |
| Compatible PLC Series | PACSystems RX3i & Series 90-30 |
| Slots Required | Single slot module |
| Supported Axes | 1–4 servo axes |
| Control Modes | Standard mode, Follower mode |
| Memory Capacity | Up to 10 programs & 40 subroutines (non-volatile) |
| Block Processing Time | <5 ms |
| Analog Output Resolution | 13-bit |
| Communication Ports | 36-pin D-shell I/O (24 VDC), 36-pin D-shell I/O (5 VDC), RJ45 COM, FSSB |
| Power Consumption | ~860 mA @ +5 VDC; +500 mA for external encoder supply (if used) |
| Mounting Locations | Main rack, expansion rack, remote backplane |
| Hot Swapping | Supported |

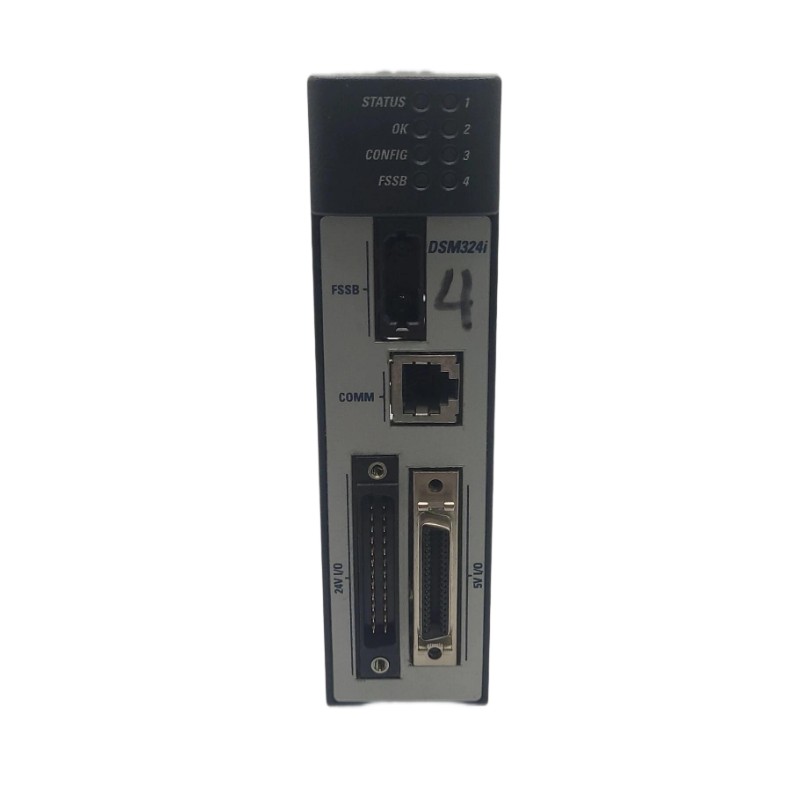

| Status Indicators | STATUS, OK, CONFIG, FSSB, Axis 1-4 LEDs |
| Operating Temperature | 0 °C to 60 °C |
| Storage Temperature | –40 °C to 85 °C |
| Dimensions (L×W×H) | 168 × 150 × 55 mm |
| Weight | ~0.65 kg |
The DSM324 module supports integration into main racks, expansions, or remote backplanes, and can communicate with both digital and analog servo systems.
