Introduction

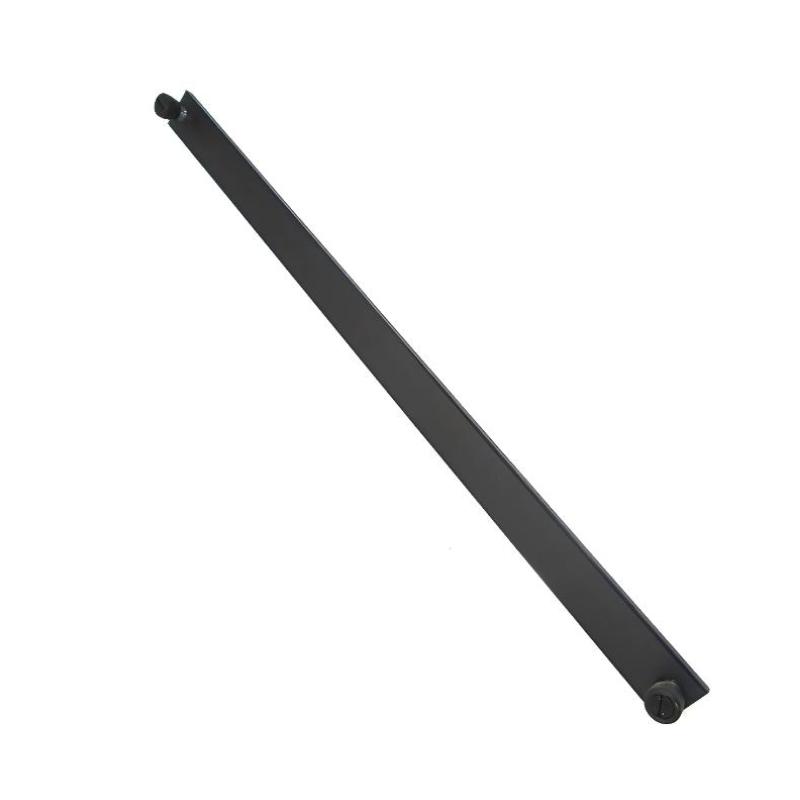

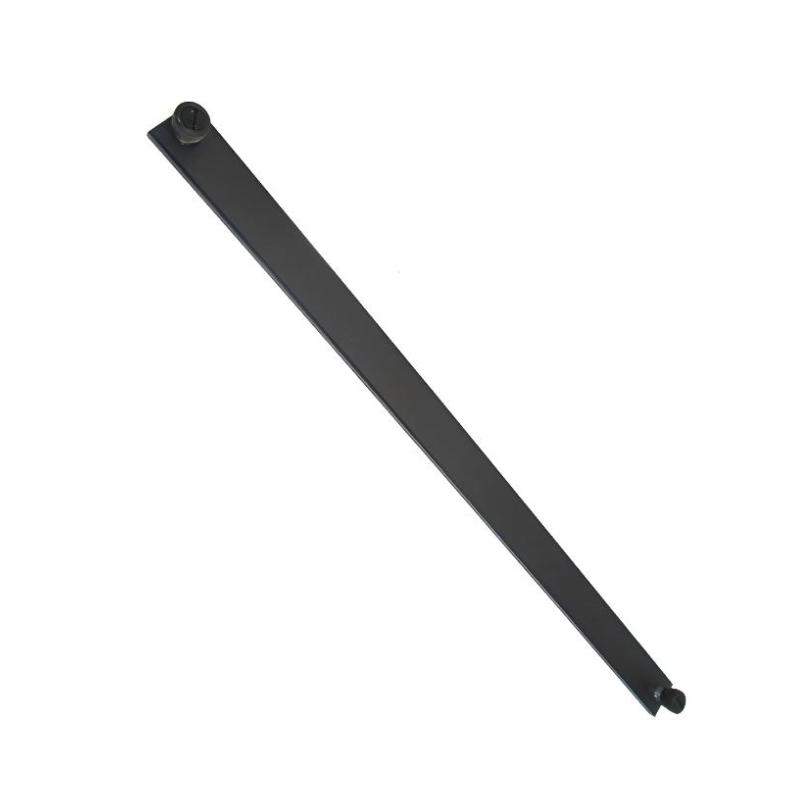

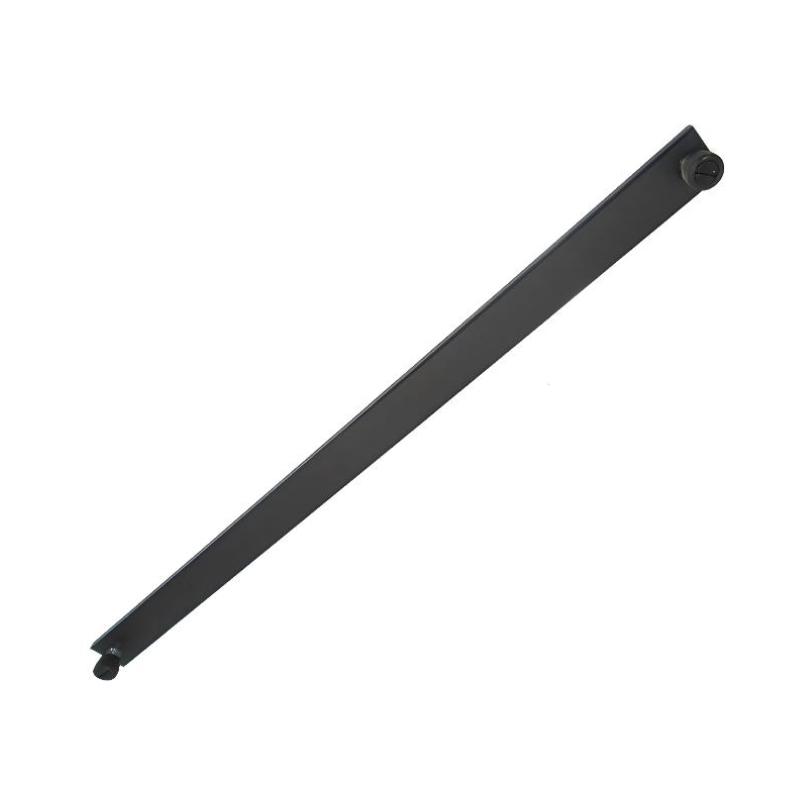

The Triconex 8105 Blank I/O Slot Panel is an essential accessory for industrial control cabinets. It ensures unused I/O slots are safely covered, protecting sensitive electronics from dust, debris, and accidental contact. Lightweight yet durable, the 8105 maintains cabinet integrity while allowing easy future expansion. Ideal for TMR and standard Triconex racks alike, this panel supports both system safety and operational flexibility.

Technical Specifications

Parameter	Description
Module Type	Blank I/O Slot Panel
Compatibility	Standard Triconex I/O racks
Material	Industrial-grade durable plastic or metal
Protection	Covers unused slots, prevents dust/debris ingress
Installation	Tool-less or minimal-tool installation
Operating Environment	Industrial-grade, vibration and temperature resistant
Dimensions	180 × 30 × 100 mm
Weight	0.227 kg

Recommended Related Models

Model	Description
8101	I/O module cover for analog input slots
8102	Blank panel for digital I/O slots
8103	Expansion slot cover with airflow support
8104	Redundant system slot protection panel
8110	Modular blank panel for TMR racks
8112	Durable slot cover for harsh environments
8120	Compact blank panel for small racks
8125	Multi-slot blank panel for large cabinets
8130	Protective cover with labeling space
8140	Replacement blank panel for legacy racks

Popular Related Models

Model	Description
8101	Analog I/O slot cover
8102	Digital I/O slot cover
8103	Expansion slot cover
8104	TMR-ready slot protection
8110	Modular blank panel
8112	Industrial-grade slot cover
8120	Compact blank panel
8125	Multi-slot blank panel
8130	Protective panel with labeling
8140	Replacement blank panel

Applications

The Triconex 8105 Blank I/O Slot Panel is used to maintain system integrity in industrial control cabinets by safely covering unused I/O slots. It is ideal for oil & gas facilities, chemical plants, power generation stations, and other high-integrity industrial environments. The panel protects sensitive electronics from dust, debris, and accidental contact while allowing easy future expansion or module replacement.

Advantages

Enhanced cabinet safety, preventing accidental access to live connectors.
Protects sensitive electronics from dust, moisture, and physical damage.
Easy installation and removal, enabling flexible system maintenance.
Maintains airflow and cooling efficiency in control racks.
Durable industrial-grade material, suitable for harsh operating conditions.
Supports system scalability, allowing future module additions without compromising protection.

FAQs

1. What is the primary purpose of the 8105 Blank I/O Panel?
It covers unused I/O slots to protect system electronics and ensure safety.

2. Is the panel compatible with all Triconex I/O racks?
Yes, it is designed to fit standard Triconex I/O module slots.

3. What material is used in the panel construction?
It is made from durable, industrial-grade materials resistant to dust, impact, and environmental stress.

4. How does the panel affect airflow in control cabinets?
It maintains proper airflow to ensure cooling efficiency is not compromised.

5. Can the panel be removed easily for future module installation?
Yes, it is designed for easy removal and replacement.

6. Does the panel provide electrical isolation?
While not an active component, it physically prevents contact with live connectors.

7. What operating conditions can the panel tolerate?
It is suitable for industrial environments, including vibration, temperature fluctuations, and moderate humidity.

8. Can it be used in TMR or redundant systems?
Yes, it can be installed in any Triconex rack configuration, including TMR systems.

9. Does the panel contribute to system safety certification?
Yes, using blank panels helps maintain system compliance and safety standards by protecting unused slots.

10. What dimensions and weight does the panel have?
The panel measures 180 × 30 × 100 mm and weighs 0.227 kg.
