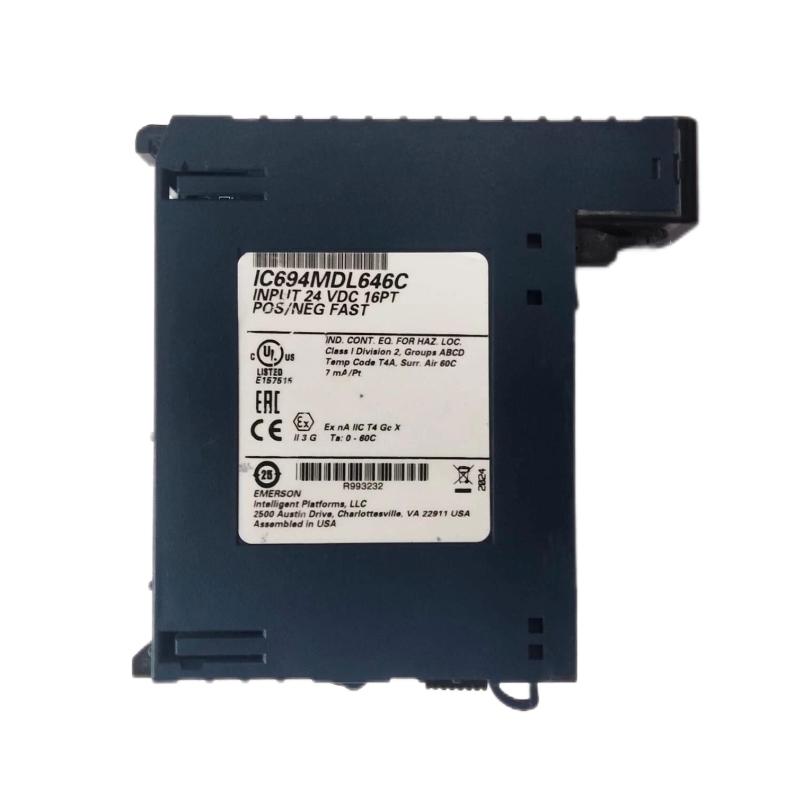

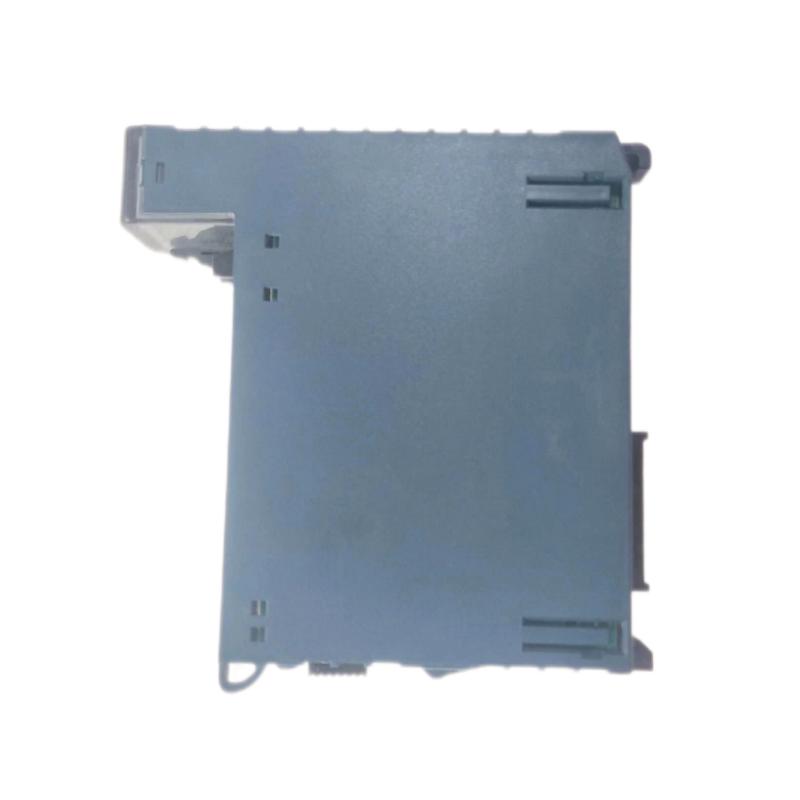

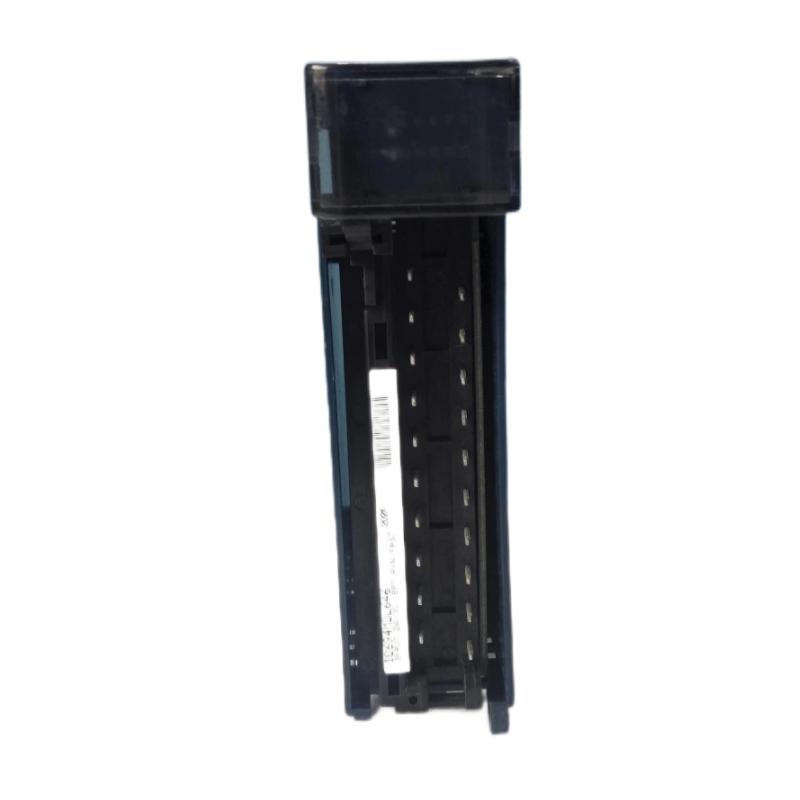

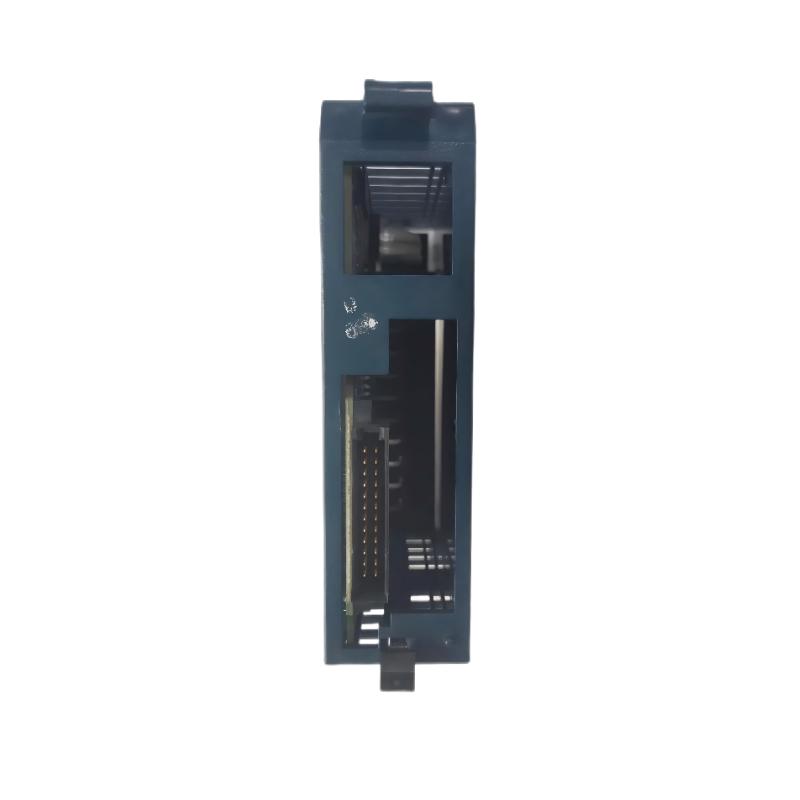

The GE IC694MDL646C is a high-speed 24 VDC discrete input module designed for GE Fanuc PACSystems RX3i and compatible Series 90-30 programmable logic controller (PLC) systems. As a fast-response version of the 16-point 24 VDC input card, this “C” revision offers extremely quick ON/OFF detection, making it ideal for industrial automation applications where rapid signal changes and precise timing are critical. It supports both positive and negative logic wiring and integrates seamlessly into standard PLC racks, providing reliable signal acquisition with strong diagnostics.

Technical Specifications

Specification	Details
Module Type	24 VDC Discrete Input Module (Fast Response)
Compatible PLC Series	GE Fanuc PACSystems RX3i & Series 90-30
Number of Inputs	16 discrete inputs (one group)
Nominal Voltage	24 VDC
Input Voltage Range	0 – 30 VDC
Input Current	~7 mA per channel (typical)
On-State Voltage	11.5 – 30 VDC
Off-State Voltage	0 – 5 VDC
Response Time	~1 ms ON / ~1 ms OFF (fast filter)
Logic Type	Positive / Negative Logic (selectable wiring)
Isolation	Optical, field-to-backplane & field-to-frame ground (250 VAC continuous; 1500 VAC for 1 min)
Status Indicators	16 green LEDs (one per input point)
Power Consumption	~80 mA @ +5 VDC; ~125 mA @ +24 VDC user supply
Operating Temp.	0 °C to +60 °C
Storage Temp.	–40 °C to +85 °C
Mounting	Standard PLC I/O rack/backplane slot
Dimensions (L×W×H)	127 × 32 × 102 mm (standard PLC module size)
Weight	~0.28 kg (approx.)

The “C” revision indicates a later hardware version with the same core performance as the original MDL646, ensuring consistent compatibility across RX3i and Series 90-30 systems.

Recommended Related Modules

GE IC694CPU331 – Core RX3i PLC CPU Module
GE IC694PWR330 – High-Capacity Power Supply Module
GE IC693MDL645 – Standard 24 VDC 16-Point Input Module
GE IC693DSM314 – High-Density Discrete Output Module

Popular GE PLC I/O & Communication Modules

GE IC694ALG392 – 8-Channel Analog Output Module
GE IC694ALG442 – Mixed Analog I/O Module
GE IC694DNM200 – DeviceNet Master Communication Module
GE IC694BEM331 – Genius Bus Controller Module

Applications

The IC694MDL646C excels in scenarios requiring fast digital input capture and processing, including:

High-speed sensor monitoring (e.g., encoders, quick limit switches)
Real-time logic triggering in automated packaging and assembly lines
Safety and interlock signal acquisition that demands minimal response delay
Distributed I/O systems in modular manufacturing environments
Integration into PLC logic where precise timing affects control outcomes

Its ~1 millisecond response ensures that rapid state transitions are faithfully captured by the PLC, improving system responsiveness and reducing missed events.

Advantages

Fast input response (~1 ms) for time-critical applications
16 isolated discrete channels with clear LED feedback
Positive/Negative logic support for flexible wiring configurations
Optical isolation enhances system robustness and noise immunity
Compact design fits standard I/O slots without extra hardware
Compatible with legacy and current GE PLC architectures

This module’s speed and flexibility make it particularly suitable for complex automation tasks where signal fidelity and timing precision matter.

Technical FAQs

What makes the IC694MDL646C different from the IC694MDL645?
The MDL646C provides faster response (~1 ms) and is optimized for high-speed digital signal capture, whereas the MDL645 is a standard discrete input version.
How many input channels does it have?
It offers 16 discrete input points grouped with a common reference.
What voltage range does it support?
0–30 VDC, with a nominal voltage of 24 VDC.
Can it detect both rising and falling edges quickly?
Yes — with ~1 ms ON/OFF response times, it captures fast transitions.
Does it support positive and negative logic wiring?
Yes — wiring can be configured for either logic type.
Is it optically isolated from the backplane?
Yes — field circuits are optically isolated from the PLC backplane and chassis ground.
What indication does it provide for input status?
Each input point has a dedicated green LED to show ON/OFF status.
Can it be used in Series 90-30 racks?
Yes — it’s compatible when installed in a standard I/O backplane.
What is the typical power consumption?
Approximately 80 mA @ +5 VDC plus 125 mA @ +24 VDC.
Is this module suitable for industrial environments?
Yes — designed for industrial PLC systems with optical isolation and LED diagnostics.
