Brand:Honeywell DCS Item No.:TC-IXL061 Product Origin:USA Product Dimensions:180 x 160 x 30 mm Product Weight:0.29 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

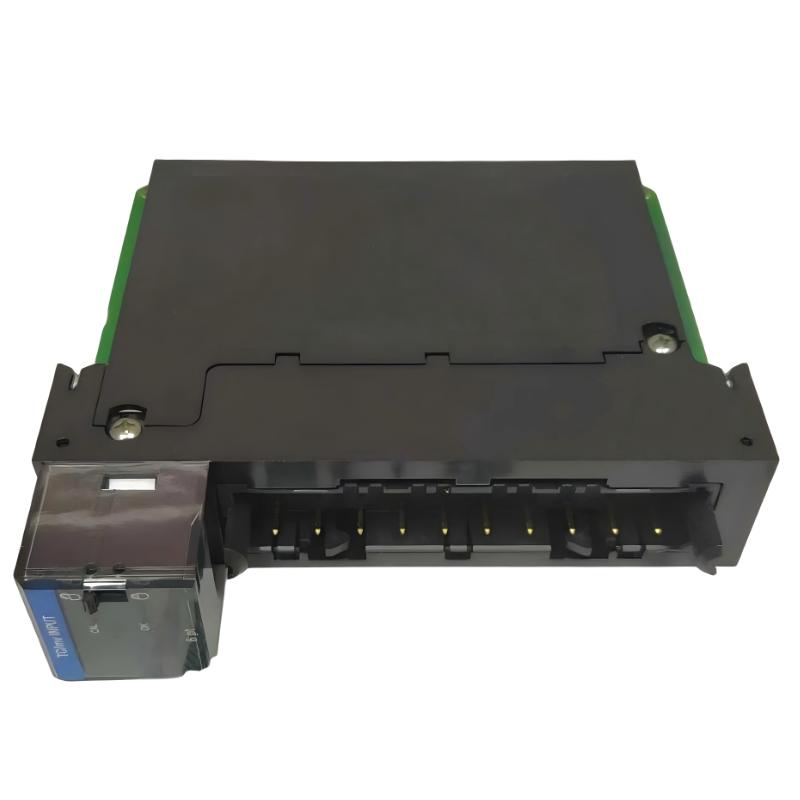

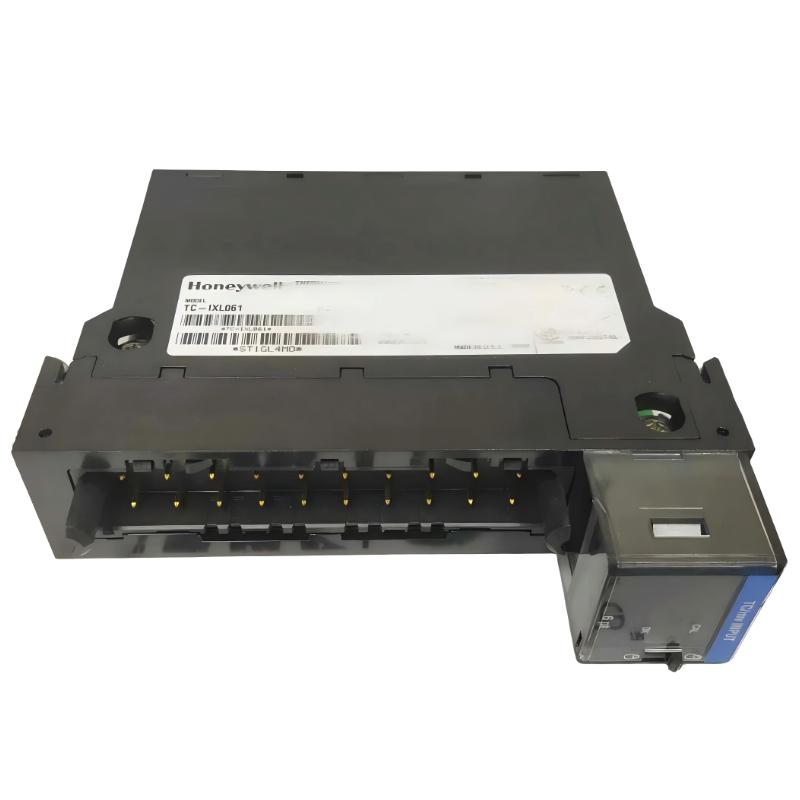

The Honeywell TC-IXL061 96978480 A01 Thermocouple Input Module provides accurate and reliable multi-point temperature monitoring for industrial control systems. Featuring 6 thermocouple inputs, integrated cold junction compensation, and advanced diagnostics, it ensures dependable thermal data acquisition in mission-critical environments.
With power consumption rated at 250 mA @ 5.1 VDC and 125 mA @ 24 VDC, the module integrates efficiently into Honeywell TC architectures. Its compact industrial form factor and robust construction make it well-suited for DCS, BMS, and power generation applications requiring precise temperature control.
Technical Specifications
Parameter
Specification
Product Type
Thermocouple Input Module
Model
TC-IXL061 96978480 A01
Number of Channels
6 Thermocouple Inputs
Power Consumption (Logic)
250 mA @ 5.1 VDC
Power Consumption (Field)
125 mA @ 24 VDC
Cold Junction Compensation
Integrated
Diagnostics
Open-Circuit Detection
Module Compatibility
Honeywell TC Series Controllers
Mounting Type
Control Cabinet / Modular Rack
Dimensions
180 × 160 × 30 mm
Weight
0.29 kg
Recommended Related Models
Model
Type
Core Function
TC-TAIH02
Analog Input Module
High-Precision Analog Measurement
TC-HAO081
Analog Output Module
8-Channel HART Output
TC-TDIA12
Digital Input Module
Discrete Signal Monitoring
TC-TDOR22
Digital Output Module
Field Device Control
TC-CCN012
Redundant Net Interface Module
Network Redundancy
TC-PSU2401
Power Supply Module
24 VDC Cabinet Power
Popular Related Models
Model
Type
Application Focus
TC-IXL062
Thermocouple Input Module
Expanded Temperature Monitoring
TC-TAMT03
Temperature Input Module
Thermal Signal Acquisition
TC-TAMR03
Relay Module
Output Switching
TC-KLAM02
Low-Level Mux Cable
Cabinet Signal Interconnection
TC-KFTA20
FTA Cable
Field Wiring Interface
TC-CPUS001
Controller Module
Safety Logic Processing
Applications
The Honeywell TC-IXL061 96978480 A01 Thermocouple Input Module is designed for accurate temperature measurement in industrial process control systems. With 6 thermocouple input points, it is commonly used in:
Furnace and boiler temperature monitoring
Turbine exhaust temperature measurement
Reactor and vessel thermal supervision
Heat exchanger performance monitoring
Power plant and energy facility temperature control
Chemical and petrochemical process temperature acquisition
Burner Management Systems (BMS)
Distributed Control System (DCS) temperature input expansion
Its multi-point capability makes it ideal for monitoring multiple temperature zones within critical industrial processes.
Advantages
6 Independent Thermocouple Inputs – Supports multi-zone temperature monitoring.
High Measurement Accuracy – Ensures stable and precise thermal data acquisition.
Dual Power Characteristics – 250 mA @ 5.1 VDC and 125 mA @ 24 VDC operation.
Cold Junction Compensation – Enhances temperature measurement accuracy.
Noise-Resistant Design – Suitable for electrically demanding environments.
Seamless System Integration – Fully compatible with Honeywell TC series controllers.
Industrial-Grade Reliability – Designed for continuous 24/7 operation.
Technical FAQs
1. How many thermocouple channels does the TC-IXL061 support?
It provides 6 independent thermocouple input points.
2. What types of thermocouples are supported?
It supports standard industrial thermocouple types depending on system configuration.
3. Does the module include cold junction compensation?
Yes, integrated cold junction compensation ensures accurate temperature readings.
4. What are the power requirements?
The module operates at 250 mA @ 5.1 VDC and 125 mA @ 24 VDC.
5. Is channel-to-channel isolation provided?
Yes, electrical isolation reduces interference between measurement channels.
6. Can it be used in high-temperature industrial environments?
Yes, it is designed for demanding process industries such as power generation and petrochemicals.
7. How is temperature data transmitted to the controller?
Measured values are digitized and transmitted to Honeywell TC controllers via the system backplane.
8. Does the module support diagnostic monitoring?
Yes, it provides open-circuit detection and status diagnostics.
9. Can multiple modules be installed in the same rack?
Yes, its modular design supports scalable temperature input expansion.
10. Is configuration required for different thermocouple types?
Yes, thermocouple type selection and scaling are configured via engineering software.
