Brand:Honeywell DCS Item No.:FC-BSDOL-04UNI Product Origin:USA Product Dimensions:122 x 108 x 30 mm Product Weight:0.32 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

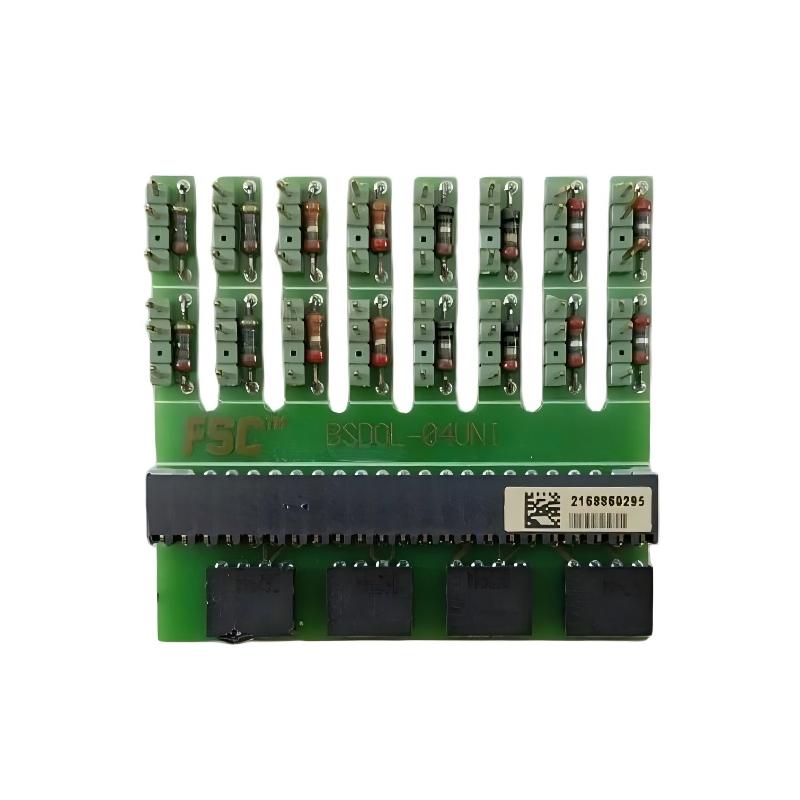

The Honeywell FC-BSDOL-04UNI Range Setting Module provides reliable input configuration for Experion LS distributed control systems. It allows precise adjustment of input ranges for field devices and I/O modules, enabling accurate monitoring and control of industrial processes.Its compact and lightweight design ensures easy installation within control racks or cabinets. Designed for continuous industrial operation, the FC-BSDOL-04UNI is ideal for both new installations and retrofit projects, enhancing system accuracy, reliability, and overall process performance.
Technical Specifications
Parameter
Specification
Product Type
Range Setting Module
Model
FC-BSDOL-04UNI
Dimensions
122 × 108 × 30 mm
Weight
0.32 kg
Application
Input Range Configuration for Field Devices and I/O Modules
Compatible Systems
Honeywell Experion LS DCS
Recommended Related Models
FC-BSDOL-05UNI — Advanced Range Setting Module
TC-PCIC01 — Network Interface Card for Experion LS
TC-IOCN01 — I/O Communication Module for Experion LS
Experion LS CPU Module — Core Controller for Experion LS
Popular Related Models
TC-RPSCA1 — Chassis Adapter for Module Mounting
TC-POWER01 — Power Module for Experion LS
TC-SMPC01 — Power Adapter for Experion LS
TC-RPSCA2 — Chassis Adapter with Extended Support
Typical Application Areas
The Honeywell FC-BSDOL-04UNI Range Setting Module is designed to configure and adjust input ranges for field devices and I/O modules within Experion LS distributed control systems (DCS). It ensures precise signal scaling, accurate monitoring, and reliable control of industrial processes.
Common deployment environments include:
Chemical, petrochemical, and pharmaceutical process plants
Power generation and energy management systems
Industrial automation and manufacturing facilities
Distributed control systems requiring input range configuration
Retrofit projects to optimize or upgrade existing modules
Control cabinets and remote or centralized process monitoring systems
Key Advantages
Precise Range Adjustment – Enables accurate scaling of input signals for I/O modules.
Lightweight – 0.32 kg for easy handling and installation.
Reliable Operation – Built for continuous 24/7 industrial use.
Seamless Integration – Fully compatible with Experion LS modules and field devices.
Enhanced Process Accuracy – Ensures consistent signal interpretation and system control.
Technical FAQs
1. What is the main function of this module?
It configures and sets input ranges for field devices and I/O modules within Experion LS DCS.
2. What are the physical dimensions?
122 × 108 × 30 mm.
3. What is the weight of the module?
0.32 kg.
4. Which systems is it compatible with?
Honeywell Experion LS Distributed Control Systems.
5. Can it operate continuously in industrial environments?
Yes, it is designed for reliable 24/7 operation.
6. Is it suitable for retrofits?
Yes, it can be installed to adjust ranges for existing modules.
7. What type of signals does it handle?
Analog or digital input signals requiring configurable ranges.
8. How is it mounted?
Installed in standard control racks or modular cabinets.
9. What maintenance is required?
Periodic inspection of connections and range settings is recommended.
10. How does it improve process control?
By accurately scaling input signals, it ensures reliable operation and precise process monitoring.
