Brand:Bently Nevada PLC Item No.:3500/94M Product Origin:USA Product Dimensions:249 x 389 x 48 mm Product Weight:4 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

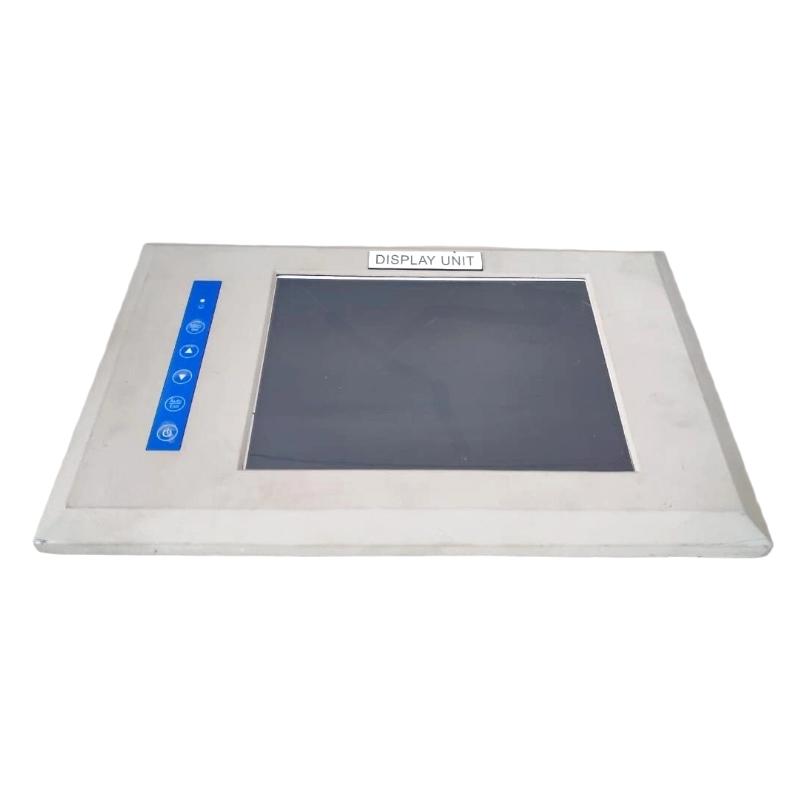

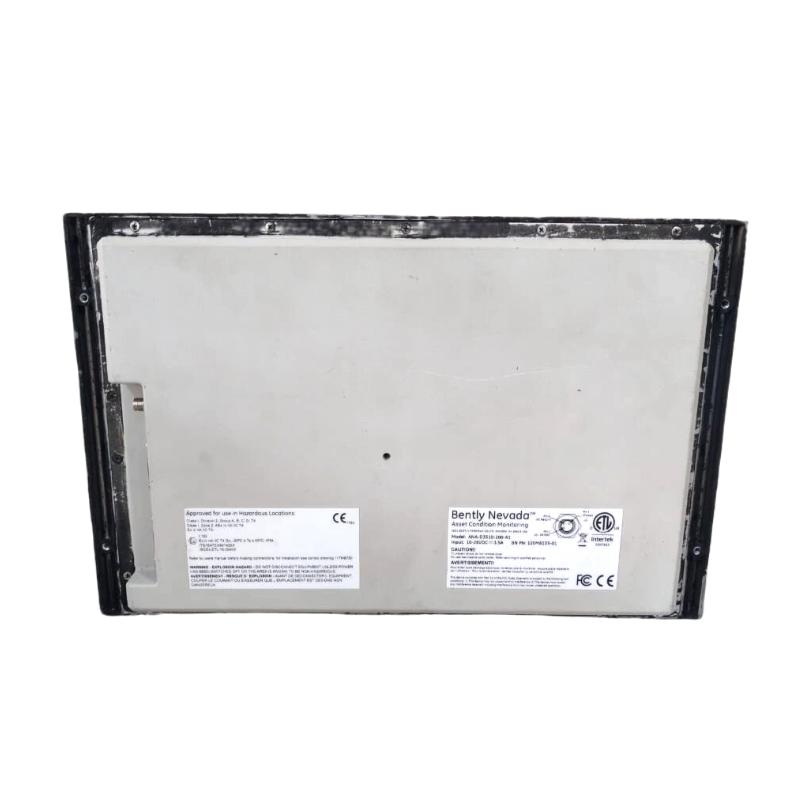

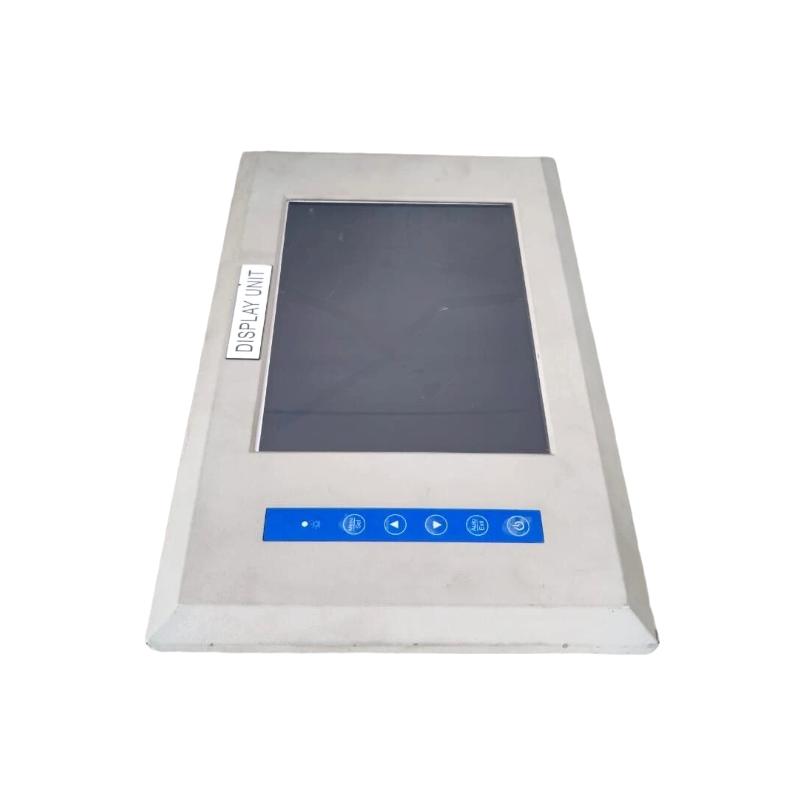

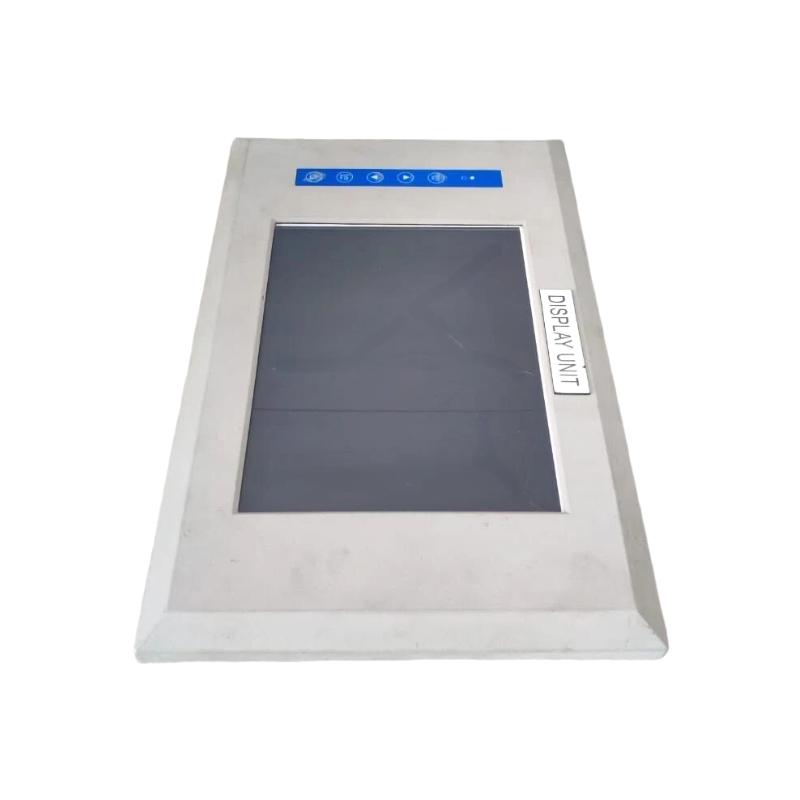

The Bently Nevada 3500/94M 120M8155-01 10-inch Touch Screen Display is a premium visualization solution for the 3500 series machinery protection system. It combines industrial durability, responsive touch interface, and high-resolution display to give operators complete control and insight into machinery performance.
This display is ideal for plants seeking to enhance operator awareness, simplify monitoring workflows, and improve overall asset protection efficiency.
Technical Specifications
Parameter
Description
Product Model
Bently Nevada 3500/94M
Part Number
120M8155-01
Module Type
Touch Screen Display
Display Size
10 inches
Resolution
High-resolution color display
Interface
Touch screen
Connectivity
3500 series serial/Ethernet
Mounting
Panel or rack mount
Operating Environment
Industrial control rooms, high-vibration areas
Dimensions
249 × 389 × 48 mm
Weight
4 kg
Recommended Related Models
Model
Description
3500/22M
Proximity probe module for vibration monitoring
3500/45
Dual-channel vibration monitor
3500/72M
Speed and vibration monitor
3500/94
Legacy display module
3500/23M
Temperature and vibration monitor
3500/25M
Displacement monitoring module
3500/80M
Machinery protection interface board
3500/86M
I/O module for process signals
3500/01
Core 3500 system CPU module
3500/02
Power supply module for 3500 system
Popular Related Models
Model
Description
3500/94M
Standard touch screen display for 3500 series
3500/22M
Single-channel vibration monitoring
3500/45
Dual-channel monitoring module
3500/72M
Speed and vibration interface
3500/23M
Temperature and vibration interface
3500/25M
Displacement monitor module
3500/86M
Analog/digital I/O interface
3500/80M
System interface module
3500/01
CPU module for 3500 system
3500/02
Power supply module
Applications
The Bently Nevada 3500/94M Touch Screen Display is engineered for high-performance machinery monitoring and asset protection in industrial environments. It is widely used in turbines, generators, compressors, and critical rotating equipment monitoring systems.
With its large 10-inch interface, operators gain intuitive control, real-time trend visualization, and immediate access to vibration, speed, and process data for rapid decision-making in power plants, oil & gas, and process industries.
Advantages
High-Resolution Visualization: Large 10-inch screen enables clear display of complex vibration and operational data.
Intuitive Touch Interface: Simplifies navigation through system parameters, alarms, and diagnostics.
Enhanced Situational Awareness: Provides real-time alerts, trend plots, and key measurements at a glance.
Durable Industrial Design: Built for high-vibration, high-temperature, and electrically noisy environments.
Seamless Integration: Fully compatible with the Bently Nevada 3500 Series monitoring system, facilitating upgrades and replacements without disruption.
FAQs
1. What key measurements can be monitored on the 3500/94M display?
It provides vibration, speed, process, and alarm data from connected 3500 series monitoring modules.
2. What communication interfaces does the display support?
It supports standard Bently Nevada serial and Ethernet connections for integration with 3500 series systems.
3. Is the touch screen interface responsive under industrial conditions?
Yes, the display is designed for fast, accurate touch response even under vibration and thermal stress.
4. Can the display be used to configure the 3500 monitoring system?
Yes, it allows parameter adjustments, alarm settings, and module configuration directly from the interface.
5. How does the display handle multiple alarms simultaneously?
It prioritizes and visually distinguishes alarms, allowing operators to quickly identify critical conditions.
6. Is remote monitoring supported?
When networked through the 3500 system, the display data can be accessed remotely via compatible HMI or SCADA systems.
7. What is the operating temperature range for the unit?
The display is rated for industrial ambient conditions, ensuring reliable operation in typical control room or cabinet installations.
8. How durable is the screen against industrial contaminants?
The front panel is resistant to dust, moisture, and light chemical exposure, suitable for industrial environments.
9. Can the display show historical trend data?
Yes, it can present historical trends and graphs stored in the connected 3500 monitoring modules.
10. Is firmware upgradeable without removing the display from the system?
Yes, firmware can be updated via network or local interface without dismantling the unit.
