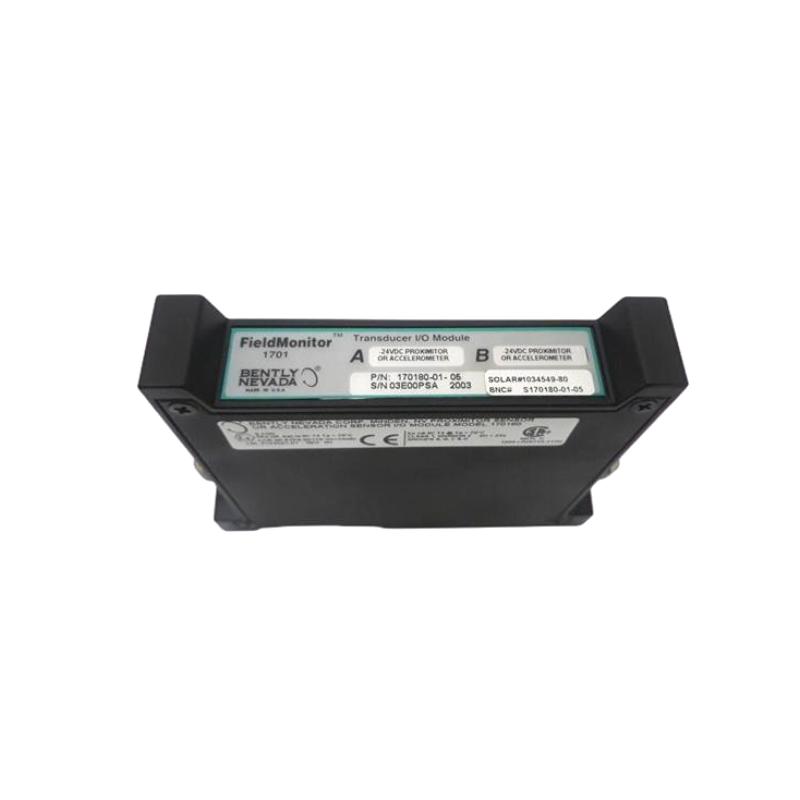

Bently 170180-01-05 Vibration Monitoring Module

Introduction

The Bently 170180-01-05 is a sophisticated vibration monitoring module from the Bently Nevada 1700 Series. Designed to ensure the reliability and health of critical rotating machinery, this module provides real-time vibration data, enabling early detection of mechanical faults such as imbalances, misalignments, and bearing wear. With its advanced monitoring capabilities, the 170180-01-05 helps reduce unplanned downtime, optimize maintenance schedules, and extend the lifespan of vital equipment.

Commonly used in industries like oil & gas, power generation, mining, and manufacturing, the 170180-01-05 is essential for implementing predictive maintenance strategies, helping operators maintain the smooth and efficient operation of machinery, and ensuring that maintenance interventions are made at the right time.

Technical Specifications

Specification	Details
Model	170180-01-05
Module Type	Vibration Monitoring Module
Input Voltage	24 VDC
Output	Analog & Digital Signals
Size (W x H x D)	180 x 120 x 90 mm
Weight	1.5 kg
Operating Temperature	-20°C to +60°C
Protection Features	Overvoltage, Reverse Polarity, Short-circuit
Certifications	CE, UL, RoHS

Applications

Rotating Equipment Monitoring: The 170180-01-05 is perfect for continuous monitoring of critical rotating machinery such as motors, compressors, pumps, and turbines, ensuring that these assets operate within safe vibration limits.
Condition Monitoring: The module detects early signs of wear and failure in machinery by continuously monitoring vibrations, providing valuable insights into the condition of components like bearings and shafts.
Predictive Maintenance: Integrated into predictive maintenance programs, the 170180-01-05 allows operators to forecast maintenance needs based on real-time vibration data, thus reducing downtime and the cost of emergency repairs.
Industrial Automation: The module integrates easily into industrial automation systems, offering continuous monitoring and triggering alarms or system shutdowns when vibration thresholds exceed safe levels.
Power Generation: In power plants, the 170180-01-05 is used to monitor turbines, generators, and other key equipment, preventing unexpected failures and optimizing operational efficiency.

Advantages

Real-Time Vibration Monitoring: The 170180-01-05 module continuously tracks vibration data, ensuring immediate detection of faults such as imbalances, misalignments, and bearing wear.
Early Fault Detection: The module provides early warning of potential failures, allowing operators to intervene before problems escalate, reducing downtime and minimizing maintenance costs.
Dual Output Options: The 170180-01-05 offers both analog and digital outputs, making it highly flexible and compatible with various monitoring and control systems.
Compact and Durable Design: Measuring 180 x 120 x 90 mm and weighing 1.5 kg, the module is compact, yet robust, ideal for use in space-constrained environments without compromising on durability.
Built-In Protection: The module includes overvoltage, reverse polarity, and short-circuit protection, ensuring its safe operation even in environments with unstable power supplies.
Wide Temperature Range: Operating effectively from -20°C to +60°C, the module is well-suited for a wide range of industrial environments, including those with extreme temperature fluctuations.

Technical FAQs

What is the input voltage for the Bently 170180-01-05 module?
The input voltage is 24 VDC.
What are the dimensions of the Bently 170180-01-05 module?
The module measures 180 x 120 x 90 mm.
What protection features are included in the Bently 170180-01-05 module?
The module includes overvoltage, reverse polarity, and short-circuit protection.
What is the weight of the Bently 170180-01-05 module?
The weight is 1.5 kg.
What types of outputs are available for the Bently 170180-01-05 module?
The module offers both analog and digital outputs.
What is the operating temperature range of the Bently 170180-01-05 module?
The operating temperature range is -20°C to +60°C.
Can the Bently 170180-01-05 module be used for predictive maintenance?
Yes, the 170180-01-05 module is ideal for predictive maintenance, offering real-time vibration data that helps detect faults early.
Which industries benefit from the Bently 170180-01-05 module?
Industries such as oil & gas, power generation, mining, and manufacturing benefit from this module for monitoring and maintaining critical rotating equipment.
Is the Bently 170180-01-05 module certified for safety and compliance?
Yes, the 170180-01-05 is CE, UL, and RoHS certified.
What are the key advantages of using the Bently 170180-01-05 module?
The 170180-01-05 offers real-time vibration monitoring, early fault detection, dual output flexibility, compact design, and built-in protection, making it an essential tool for maintaining equipment health and minimizing downtime.
