Product Introduction

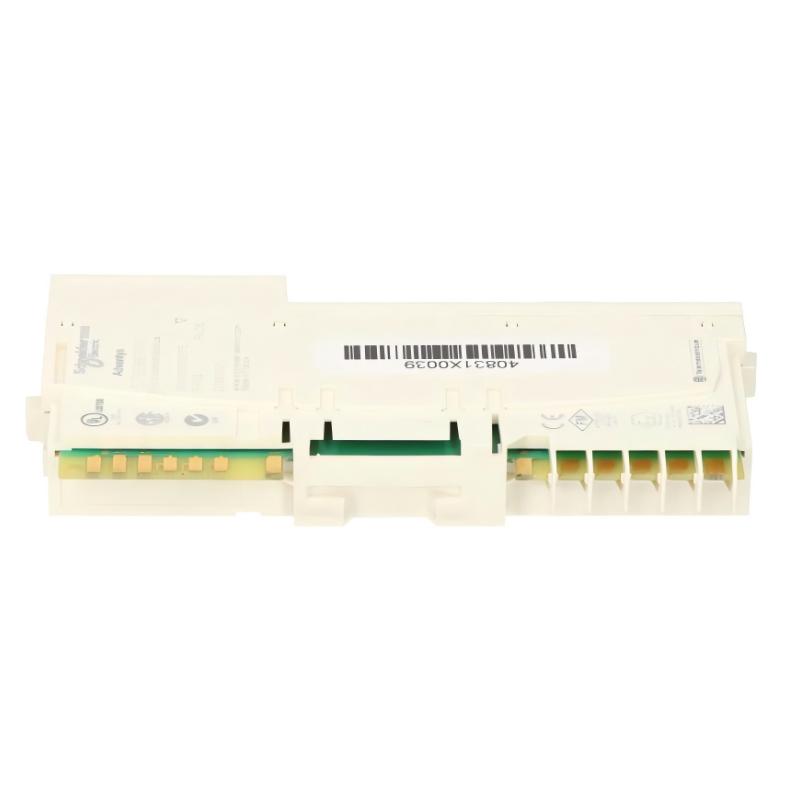

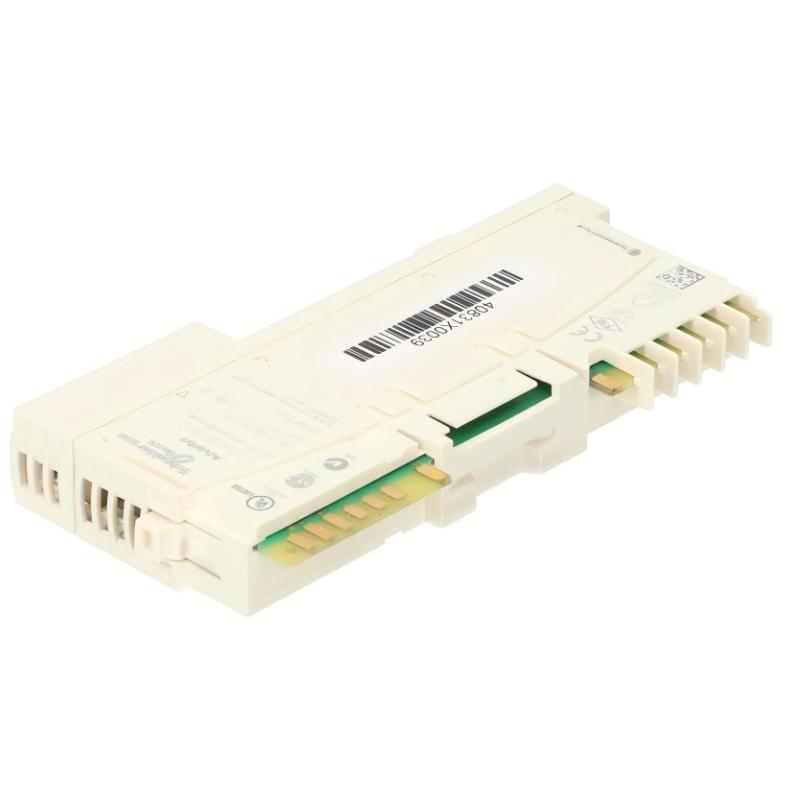

The Schneider STBXBE1100 EOS Extension Module is designed to extend the Advantys STB distributed I/O island by enabling additional I/O segments to be connected. It plays a key role in building scalable and modular automation systems by allowing flexible expansion of distributed I/O configurations.

With its compact industrial design and reliable connectivity, the STBXBE1100 ensures stable communication between extended I/O modules while simplifying installation and system expansion. It is widely used in manufacturing automation, infrastructure systems, and process industries requiring adaptable distributed control architectures.

Technical Specifications

Parameter	Specification
Product Model	STBXBE1100 EOS Extension Module
Manufacturer	Schneider Electric
Product Type	I/O Extension Module
Platform	Advantys STB Distributed I/O
Dimensions	125 × 18.4 × 65.1 mm
Weight	0.13 kg

Recommended Related Models

Schneider STBNIP2212 – Ethernet Network Interface Module
Schneider STBDDI3610 – Digital Input Module
Schneider STBDDO3700 – Digital Output Module
Schneider STBPDT3100 – Power Distribution Module

Popular Related Models

Schneider STBXBE1300 – I/O Extension Module
Schneider STBPS2210 – Power Supply Module
Schneider STBACI1400 – Analog Input Module
Schneider STBAVO1250 – Analog Output Module

Industrial Applications

Extending the I/O island structure in Schneider Advantys STB distributed I/O systems
Connecting additional I/O segments within modular automation architectures
Supporting expansion of industrial automation networks without redesigning the system
Facilitating communication between I/O modules in manufacturing and process control systems
Enabling scalable distributed control solutions in energy, water treatment, and infrastructure industries
Providing reliable end-of-segment (EOS) connectivity within STB I/O islands

Key Technical Advantages

Designed specifically for Advantys STB distributed I/O platforms
Enables expansion and segmentation of I/O islands for flexible system architecture
Ensures reliable communication between extended I/O segments
Compact modular design for efficient control cabinet installation
Industrial-grade durability for continuous operation in demanding environments

Technical FAQs

1. What is the main function of the STBXBE1100 module?
It extends the Advantys STB I/O island by connecting additional I/O segments.

2. Which automation platform uses this module?
It is designed for Schneider Electric Advantys STB distributed I/O systems.

3. What does EOS mean in this module?
EOS stands for End Of Segment, indicating its role in connecting or extending I/O segments within the island.

4. Can it increase the number of I/O modules in a system?
Yes, it allows the expansion of distributed I/O configurations.

5. Is it suitable for large automation systems?
Yes, it supports scalable architectures used in large industrial control systems.

6. Does it require complex wiring?
No, it simplifies the connection between I/O segments with a modular design.

7. Is the module designed for industrial environments?
Yes, it is engineered to withstand electrical noise, vibration, and temperature variations.

8. Can it improve system flexibility?
Yes, it allows engineers to expand or modify I/O islands without redesigning the entire system.

9. Is installation straightforward?
Yes, it easily mounts within the Advantys STB I/O island assembly.

10. Can it work alongside other STB modules?
Yes, it is fully compatible with the Advantys STB family of I/O modules.
