Brand:ABB PLC Item No.:DI814 Product Origin:Sweden (SE) Product Dimensions:127.5 × 186 × 59 mm Product Weight:0.15 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

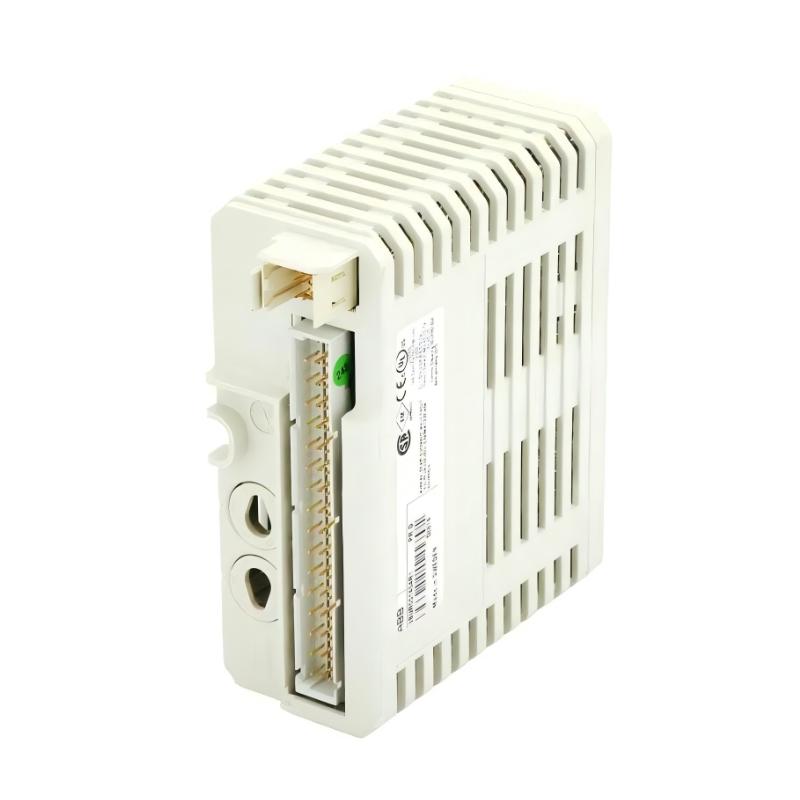

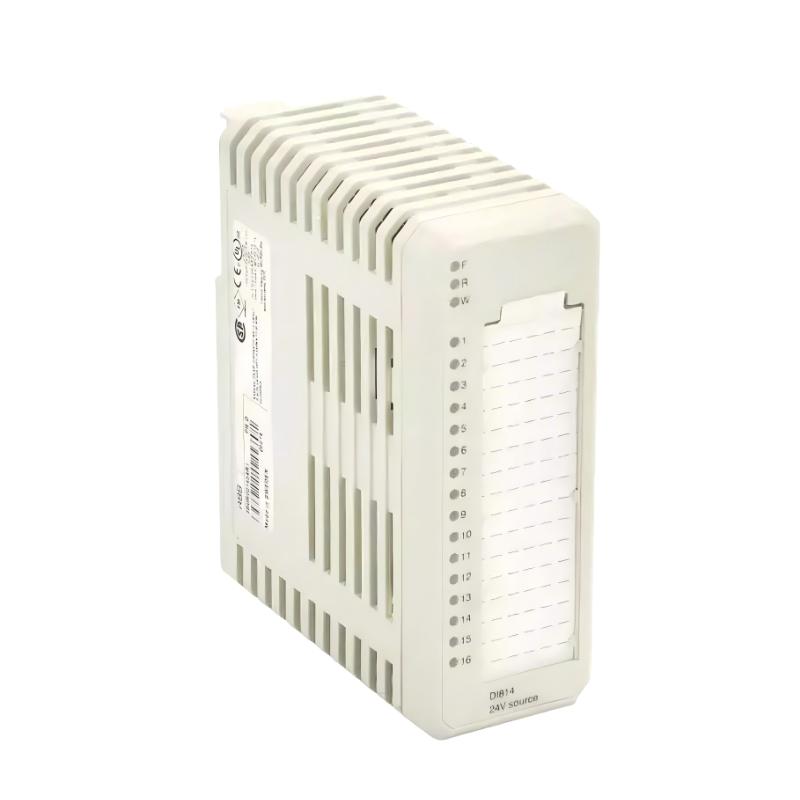

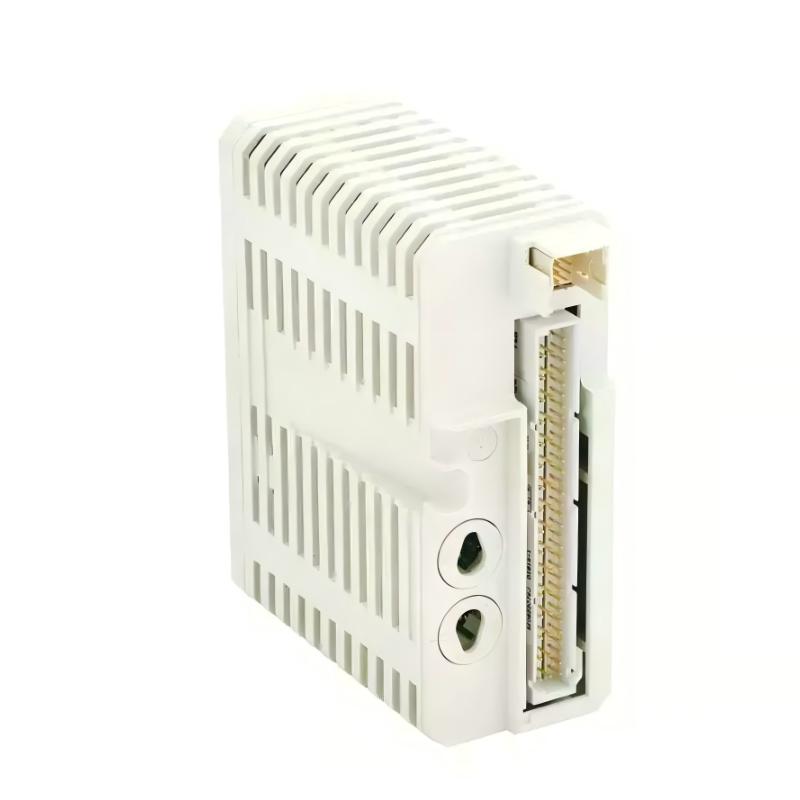

The ABB DI814 (3BUR001454R1) Digital Input Module delivers solid digital signal processing tailored for the Advant Controller family.
With dependable isolation, precise input behavior, and industrial-grade durability, it ensures stable operation even in electrically aggressive environments.
Its design allows smooth integration into existing installations, making it a valuable choice for system expansions and lifecycle upgrades.
Technical Specifications
Parameter
Description
Product Model
ABB DI814 (3BUR001454R1)
Module Type
Digital Input Module
Dimensions
127.5 × 186 × 59 mm
Weight
0.15 kg
Number of Inputs
16 digital inputs
Input Voltage
24 VDC
System Compatibility
ABB Advant Controller Series
Isolation
Group-based galvanic isolation
Diagnostics
Input status & fault supervision
Application Use
DCS systems, utilities, manufacturing automation
Recommended Related Models
Model
Description
ABB DI810
16-channel digital input module
ABB DI820
24 VDC input module
ABB DO814
16-channel digital output module
ABB AI810
Analog input module
ABB AO810
Analog output module
ABB PM861
AC 800M processor unit
ABB SD823
Power supply module
ABB CI854A
PROFIBUS communication module
ABB TU835
Base termination unit
ABB DI830
High-density DI module
Popular Related Models
Model
Description
ABB DI814
Digital input module
ABB DI810
Standard DI module
ABB DO814
Digital output module
ABB AI810
Analog input module
ABB AO810
Analog output module
ABB DI820
24 VDC DI module
ABB PM864
High-performance CPU
ABB CI854A
PROFIBUS interface
ABB TU830V1
Termination unit
ABB DO820
Relay-style output module
Applications
The ABB DI814 is built for reliable digital signal acquisition in medium-to-large process automation environments.
It is commonly deployed in distributed control systems, factory automation, utility networks, and energy production facilities where stable and noise-resistant input processing is essential.
Its performance and compatibility with ABB’s Advant OCS systems make it ideal for modernization projects as well as new installations.
Advantages
High input accuracy, ensuring dependable interpretation of field signals.
Optimized for Advant Controller 400 Series, providing straightforward integration.
Strong electrical immunity, supporting operation near heavy industrial equipment.
Compact and modular, allowing flexible expansion in multi-rack configurations.
Engineered for longevity, reducing downtime and maintenance overhead.
FAQs
1. What type of automation system is the DI814 designed for?
It is built for ABB Advant Controller-based systems.
2. How many digital inputs does the module support?
The DI814 provides 16 digital input channels.
3. What is the required input voltage level?
It is designed for standard 24 VDC digital signals.
4. Does the module support galvanic isolation?
Yes, input groups are isolated to improve reliability and reduce interference.
5. Can the module detect high-frequency transitions?
It supports fast input detection suitable for demanding control tasks.
6. Is diagnostic feedback available?
Yes, the module provides status indication and error signaling for easier troubleshooting.
7. Can the DI814 be used with redundant controllers?
Yes, it operates within redundant Advant control architectures when configured accordingly.
8. Does it communicate through a system backplane?
Yes, it relies on the Advant system bus through the backplane interface.
9. Is it suitable for harsh industrial conditions?
Yes, it is designed with industrial-grade immunity and robustness.
10. Can it be replaced without shutting down the entire rack?
Some systems support controlled module replacement depending on configuration and redundancy.
