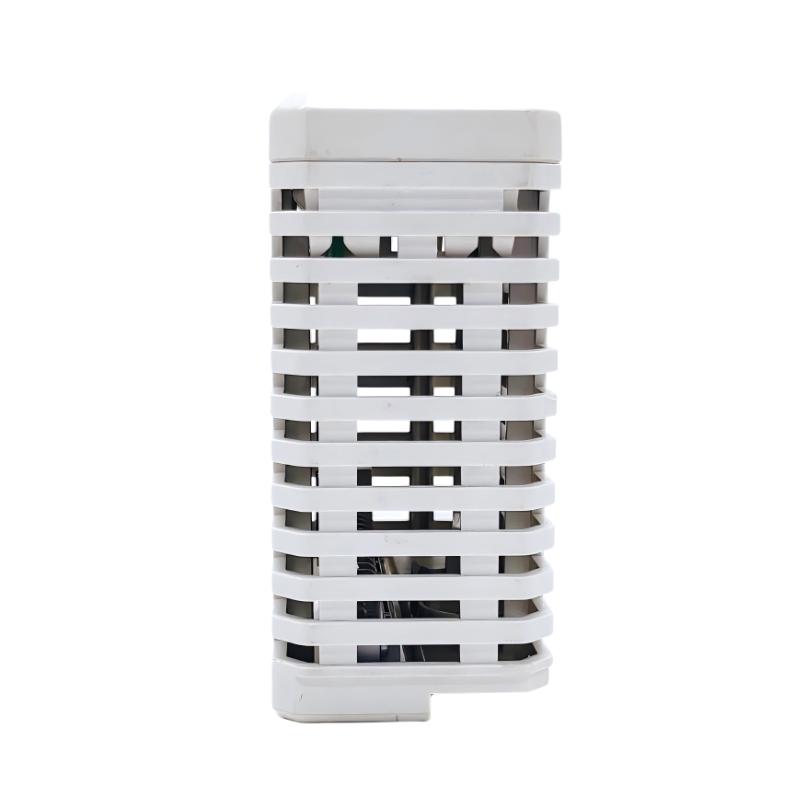

ABB DI840 3BSE020836R1 Digital Input Module

Applications

The ABB DI840 3BSE020836R1 is designed for reliable digital input acquisition in modern industrial automation systems.
Common applications include:

• Distributed control systems in power generation, oil & gas, and chemical plants

• Remote I/O stations for large-scale industrial facilities

• High-speed machinery requiring precise digital feedback

• Safety and auxiliary monitoring circuits

• Compact control cabinets requiring high-density modular I/O

Advantages

• 16-channel digital input module for efficient rack utilization

• Fast and accurate signal processing for real-time applications

• Electrical isolation to protect the controller from field-side faults

• Robust against electrical noise, ensuring stable operation

• LED indicators for clear input channel status

• Compact and modular design allows flexible installation

• Seamless integration with ABB AC800M and Advant Controller systems

• Industrial-grade construction reduces maintenance and enhances reliability

FAQs

1. How many digital input channels does the DI840 provide?
The DI840 offers 16 independent digital input channels.

2. What voltage levels are compatible with the inputs?
It is designed for standard 24 VDC digital signals.

3. Does the module provide isolation between inputs and the system?
Yes, each input group is electrically isolated from the system bus to protect the controller.

4. Can the module detect rapid changes in input signals?
Yes, the DI840 supports high-speed signal detection suitable for real-time automation.

5. Are there filtering mechanisms to prevent false triggering?
Yes, internal filtering and debounce mechanisms ensure reliable input detection.

6. Is hot-swapping supported for this module?
Controlled replacement is possible in compatible ABB I/O rack configurations.

7. What diagnostic information does the module provide?
It reports the status of each input channel and any faults to the controller.

8. Can the DI840 be used with redundant controllers?
Yes, it is compatible with redundant AC800M setups.

9. How does the module protect against miswiring or polarity issues?
The module includes protective circuitry to prevent damage from reversed wiring or misconnection.

10. Which ABB controllers are compatible with the DI840?
It works with ABB AC800M series and Advant Controller systems supporting standard digital I/O modules.
