Introduction

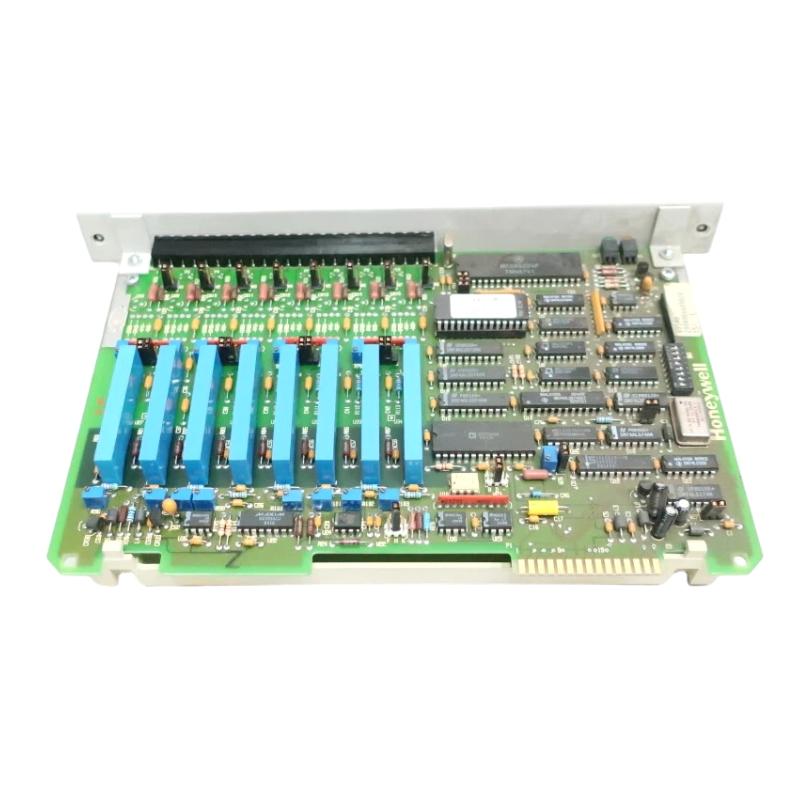

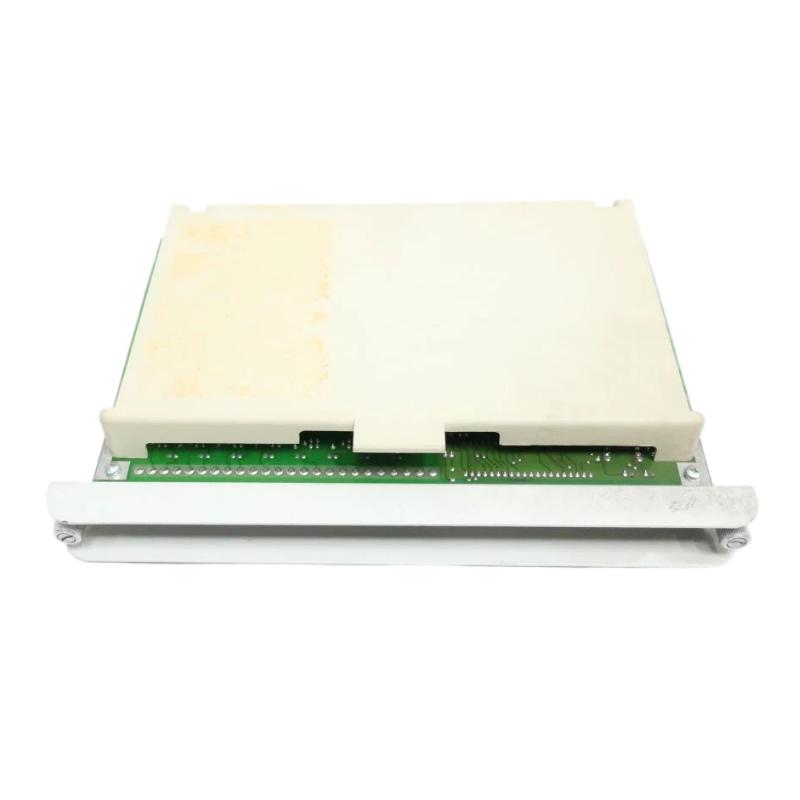

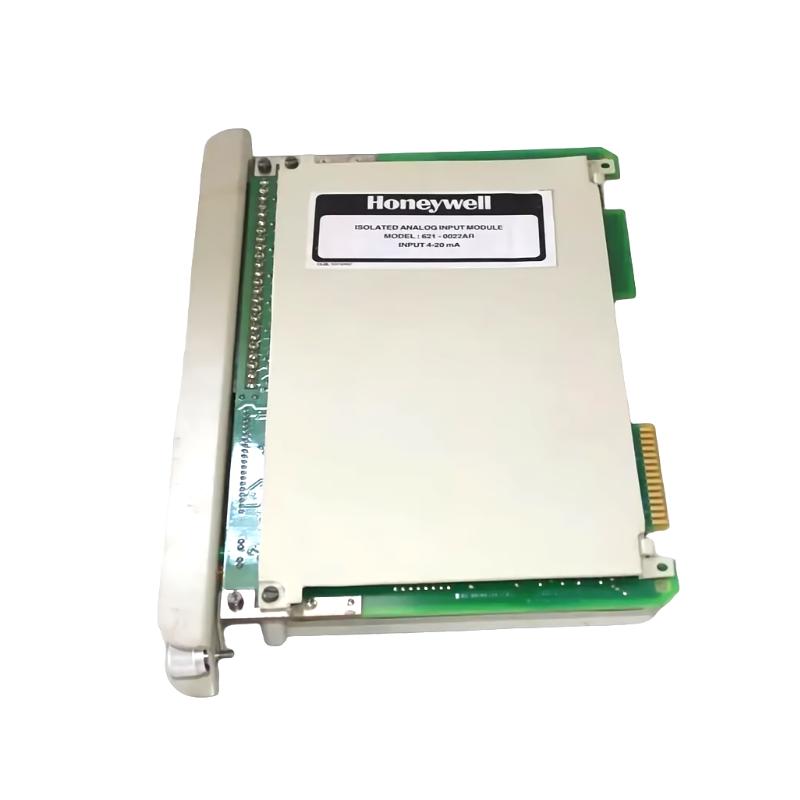

The Honeywell 621-0022 Isolation Analog Input Module ensures accurate, reliable acquisition of analog signals in demanding industrial environments. Its electrical isolation protects sensitive control systems, while robust construction guarantees long-term stability. Ideal for manufacturing, process control, and energy management systems, it integrates seamlessly with Honeywell’s modular I/O platform.

Technical Specifications

Feature	Specification
Module Type	Isolation Analog Input Module
Input Signal Type	Analog (4–20 mA, 0–10 V)
Galvanic Isolation	Yes
Operating Temperature	−20°C to +70°C
Power Supply	24 VDC
Dimensions	33 mm × 274 mm × 171 mm
Weight	0.68 kg
Mounting	DIN Rail or Panel Mount
Diagnostics	Channel fault detection and status reporting

Recommended Related Models

Honeywell 621-0020 Isolation Analog Input Module
Honeywell 621-0025 Analog Input Expansion Module
Honeywell 620-2032 I/O Control Module
Honeywell 620-2050 Digital I/O Expansion Module

Popular Related Models

Honeywell 620-2040 Analog I/O Module
Honeywell 620-2060 Remote I/O Module
Honeywell 620-2075 High-Speed I/O Module
Honeywell 620-2080 Safety I/O Control Module

Applications

Process Automation: High-precision analog signal acquisition for industrial control systems.
Energy & Utility Systems: Reliable isolation and signal integrity in power generation and distribution networks.
Manufacturing Systems: Captures and processes multiple analog inputs with minimal interference.
Control Network Integration: Seamless compatibility with Honeywell control platforms for modular system expansion.

Advantages

Electrical Isolation: Protects sensitive equipment from voltage spikes and ground loops.
High Accuracy: Maintains precise signal integrity for analog inputs.
Robust Construction: Industrial-grade design ensures reliable operation in demanding environments.
Easy Integration: Plug-and-play setup with Honeywell I/O systems for rapid deployment.

Technical FAQs

What types of signals can this module handle?
Supports standard analog input signals, including 4–20 mA and 0–10 V ranges.
Does it provide galvanic isolation?
Yes, the module isolates input channels from the main control system to prevent interference.
Can multiple modules be connected in a system?
Yes, modules can be networked for scalable analog input capacity.
What is the module’s response time?
Designed for real-time process control with typical response times under 10 ms.
Is it compatible with Honeywell safety systems?
Yes, can be integrated into standard and safety-rated control architectures.
How does it handle signal noise?
Built-in filtering minimizes electrical noise for clean, reliable analog measurements.
Does it offer diagnostics?
Provides channel fault detection and status reporting for maintenance efficiency.
What is the operating temperature range?
Suitable for standard industrial environments, typically −20°C to +70°C.
Can it be hot-swapped?
Supports safe replacement without shutting down the main control system.
What is the expected service life?
Engineered for 10+ years of reliable operation in industrial applications.
