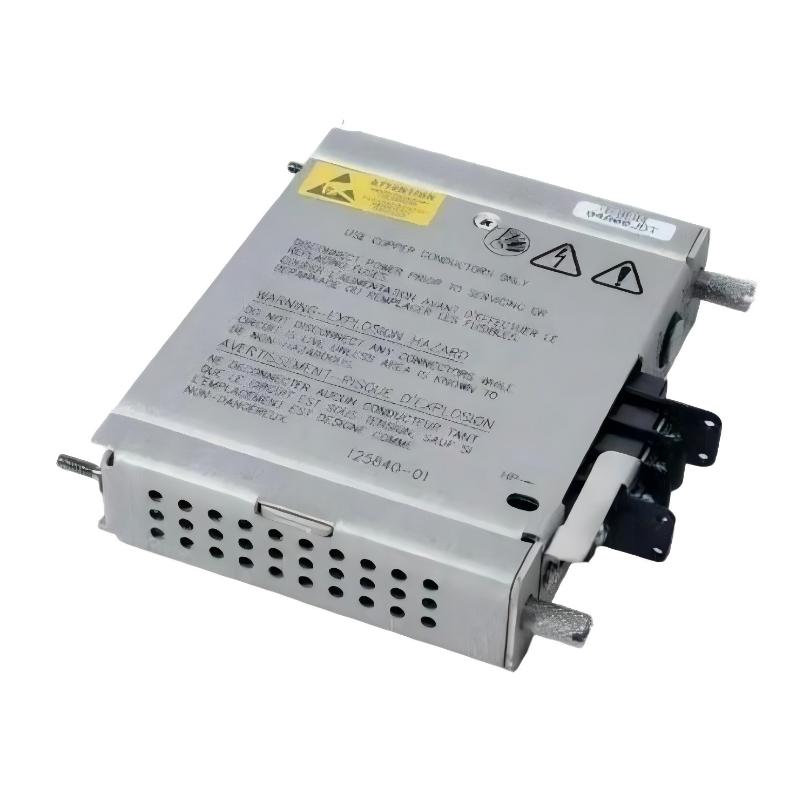

Bently Nevada 3500/15 125840-01 High-Voltage AC Power Input Module
Bently Nevada 3500/15 125840-01 High-Voltage AC Power Input Module
0.0
Points
Brand:Bently Nevada PLC Item No.:3500/15 Product Origin:USA Product Dimensions:120.7 x 25.4 x 114.3 mm Product Weight:0.34 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Bently Nevada 3500/15 125840-01 High-Voltage AC Power Input Module is a core component of the 3500 machinery protection platform. Its role is to ensure clean AC power delivery to the system, supporting continuous monitoring of turbines, compressors, pumps, and other high-value rotating assets. Designed with a compact profile and engineered for electrical robustness, it reinforces the stability of the entire protection system and helps maintain uninterrupted plant operations.
Technical Specifications
Item
Description
Model
3500/15 125840-01
Type
High-Voltage AC Power Input Module
Input Function
Supplies and conditions AC power for the 3500 rack
Dimensions
120.7 × 25.4 × 114.3 mm
Weight
0.34 kg
Material
Industrial electronic-grade assembly
Cooling
Natural convection
Installation
Fits into standard 3500 rack slot
Redundancy Capability
Supports dual-module configuration
System Compatibility
Fully compatible with all Bently Nevada 3500 series racks
Recommended Related Models
Model
Description
3500/05
System Rack
3500/20
Rack Interface Module
3500/22M
Enhanced Transient Data Interface
3500/32M
Relay Output Module
3500/25
Keyphasor Module
Popular Related Models
Model
Description
3500/42M
Proximitor/Seismic Monitor
3500/45
Position Monitor
3500/50
Tachometer
3500/60
Temperature Monitor
3500/46M
Hydro Monitor
Applications
The Bently Nevada 3500/15 125840-01 High-Voltage AC Power Input Module is engineered for installations where stable AC power delivery is critical to the overall reliability of the 3500 Machinery Protection System. It is commonly used in turbine control rooms, compressor skids, refinery platforms, and industrial panels where machinery protection equipment must operate without power interruptions. This module ensures that the rack receives clean, conditioned AC input even in demanding electrical environments.
Advantages
This power input module stands out for its exceptional electrical stability and compact design. Its precise voltage conditioning supports uninterrupted system performance, helping prevent data loss and maintaining consistent monitoring accuracy. The slim form factor allows efficient use of rack space while maintaining compliance with high-voltage requirements. Built for reliability, the module enhances system uptime and helps operators maintain a dependable monitoring infrastructure—particularly in plants where continuous operation is mission-critical.
Technical FAQs
What is the primary purpose of the 3500/15 module?
It delivers high-voltage AC power to the 3500 rack and stabilizes input conditions.
Is it compatible with both full-size and compact racks?
Yes—it supports 19-inch and 12-inch 3500 rack configurations.
Does this module provide redundancy?
Yes. Two modules can be installed for redundant AC power.
Can it be installed alongside DC power modules?
Yes, depending on system configuration.
Does it include internal protection circuitry?
It features filtering and protection components to stabilize AC input.
Is special wiring required?
Standard high-voltage wiring practices apply; follow installation guidelines.
Can the system run on a single power module?
Yes, though dual-module redundancy is recommended for critical assets.
Does it affect data processing or monitoring functions?
No—it strictly handles rack power delivery.
Is it hot-swappable?
It is not designed for live replacement; power should be isolated first.
What environments is it suitable for?
Any industrial setting requiring stable AC supply for protection systems.
