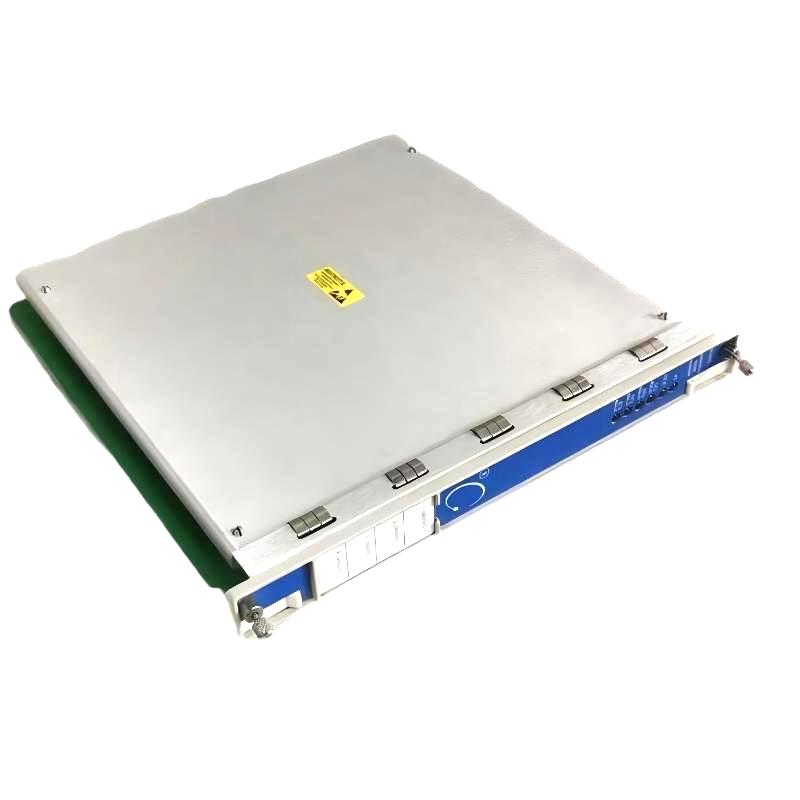

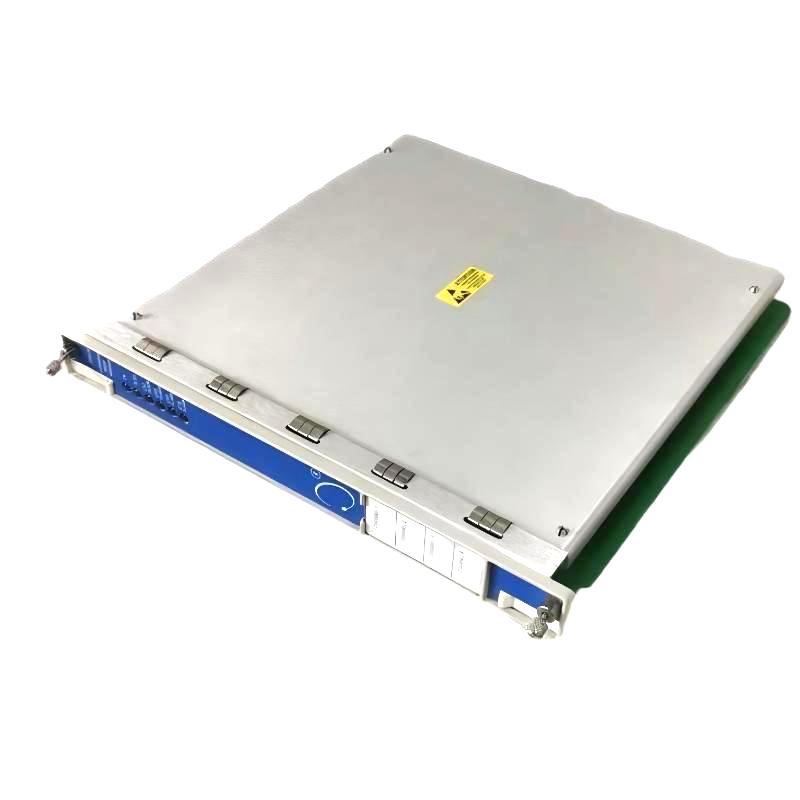

The Bently Nevada 3500/32 125712-01 4-Channel Relay Module is a key component of the 3500 Machinery Protection System, providing reliable relay outputs for alarms, interlocks, and shutdowns. Its precise, fast-acting channels enhance system responsiveness and protect high-value machinery from unexpected failures. Compact, robust, and fully compatible with 3500 series racks, it ensures seamless integration and dependable operation in industrial environments.

Technical Specifications

Parameter	Details
Model	3500/32 125712-01
Function	4-Channel Relay Module
Dimensions	241 × 24.4 × 242 mm
Weight	0.7 kg
System Compatibility	Bently Nevada 3500 Series Racks
Cooling	Natural convection
Installation	Standard 3500 rack slot
Channels	4 independent relay outputs
Operating Environment	Industrial machinery and turbine halls
Redundancy	Multiple modules can be installed for expanded output

Recommended Related Models

Bently Nevada 3500/05 System Rack
Bently Nevada 3500/15 126399-01 AC Power Module
Bently Nevada 3500/22M 164466-01 Transient Data Interface Module
Bently Nevada 3500/25 Keyphasor Module
Bently Nevada 3500/42M Proximitor Monitor

Popular Related Models

Bently Nevada 3500/45 Position Monitor
Bently Nevada 3500/50 Tachometer Module
Bently Nevada 3500/46M Hydro Monitor
Bently Nevada 3500/15 125840-01 High-Voltage AC Power Input Module
Bently Nevada 3500/15 125840-02 Low-Voltage AC Power Input Module

Applications

The Bently Nevada 3500/32 125712-01 4-Channel Relay Module is designed for high-reliability industrial machinery protection systems. It is widely used in:

Steam and gas turbine protection
Centrifugal compressors and pumps
Refinery rotating equipment
Critical asset protection in power generation plants
Industrial processes requiring fast, reliable alarm and shutdown signaling

Advantages

Reliable 4-Channel Output: Provides four independent relay channels for precise system control.
Fast Response: Rapid actuation ensures timely protection of critical machinery.
Compact Form Factor: Slim design fits standard 3500 racks efficiently.
Durable Construction: Maintains consistent operation under vibration and industrial conditions.
Flexible Integration: Compatible with all standard 3500 series monitoring modules.
Maintenance-Friendly: Easy access and installation reduce downtime during service.

Technical FAQs

What is the purpose of the 3500/32 module?
To provide relay outputs that activate alarms or shutdowns based on monitored conditions.
How many relay channels are available?
Four independent relay channels.
Is it compatible with all 3500 racks?
Yes, designed for standard 19-inch and compatible 12-inch 3500/05 racks.
Can it handle high-speed signals?
Yes, suitable for rapid response in machinery protection applications.
Is redundancy possible?
Multiple relay modules can be installed for backup or expanded outputs.
Does it require special wiring?
Standard industrial wiring practices for relay outputs are used.
Can it operate in harsh industrial environments?
Yes, built to withstand vibration, temperature variation, and industrial conditions.
Is the module hot-swappable?
Typically replaced with power isolated; follow safety guidelines.
Does it support integration with plant-wide control systems?
Yes, relay outputs can interface with PLCs, DCS, or alarm systems.
What maintenance is required?
Minimal; periodic inspection and cleaning are recommended.
