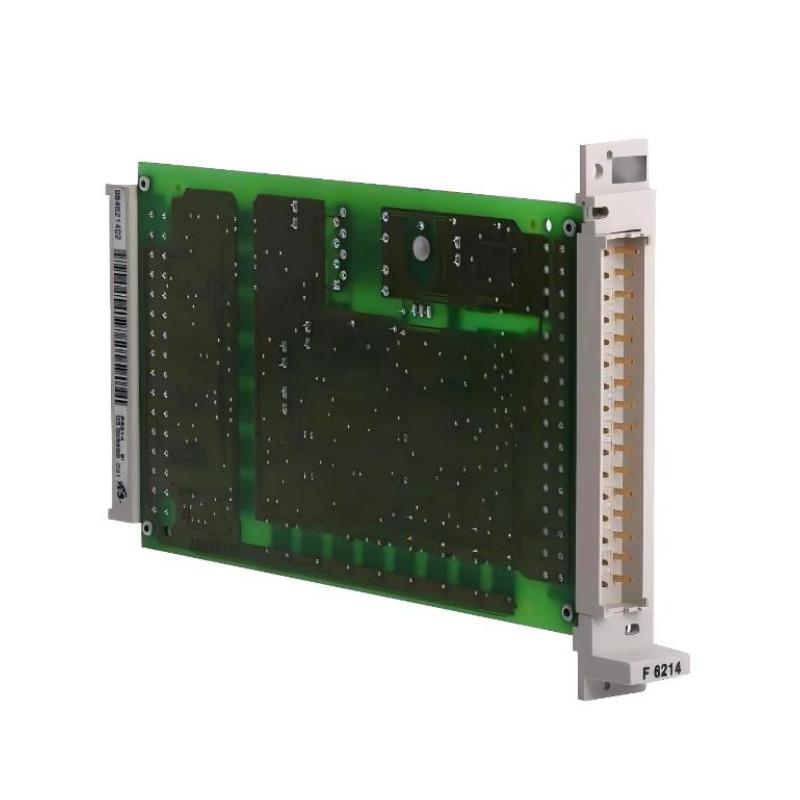

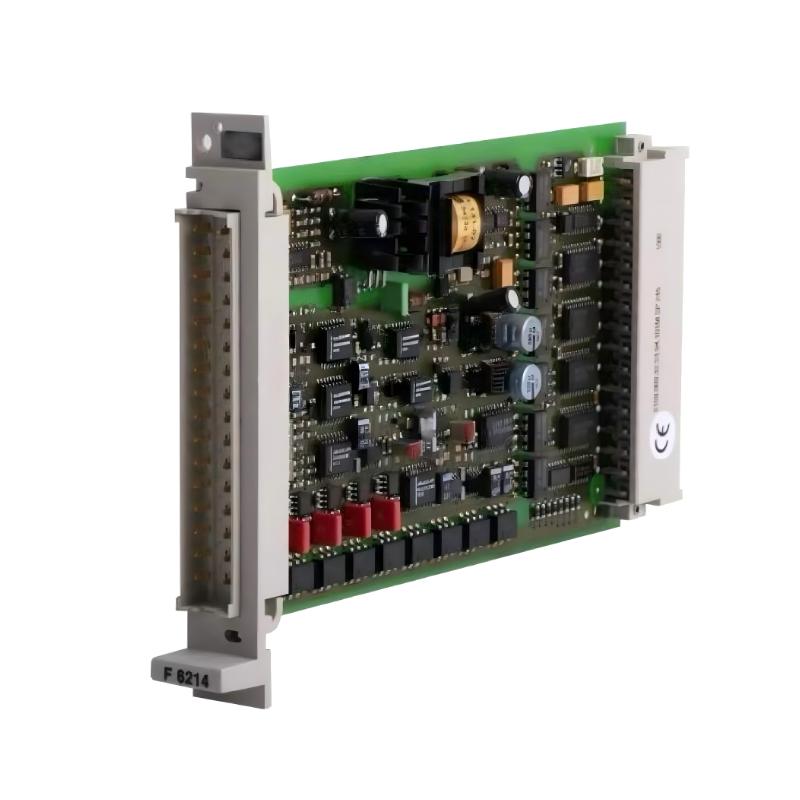

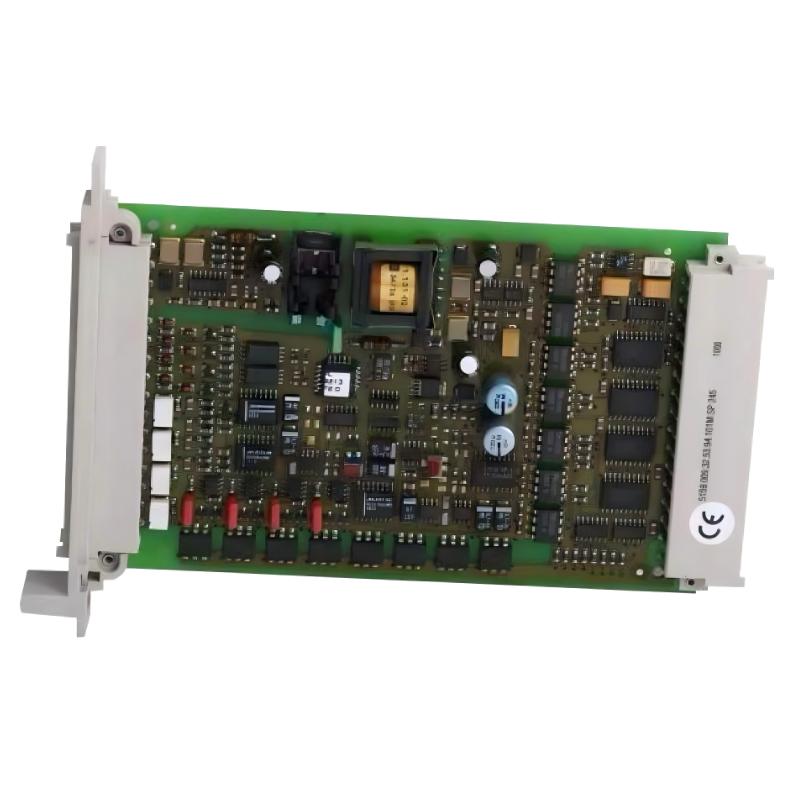

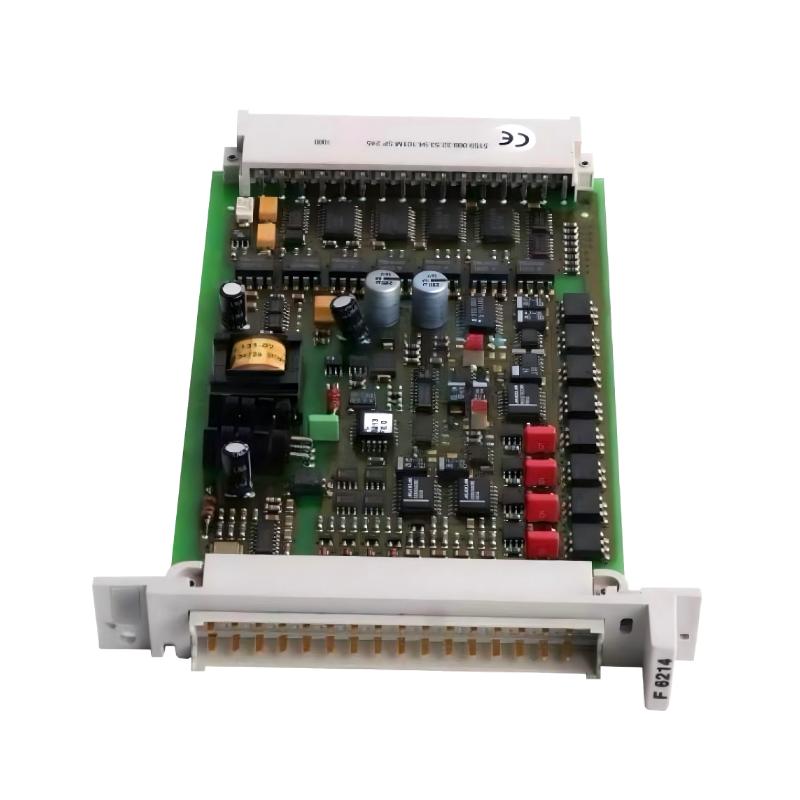

Hima F6214 Analog Input Module

Typical Application Areas

• Process safety monitoring systems in chemical and petrochemical plants

• Analog signal acquisition from field transmitters such as pressure, temperature, and flow sensors

• Safety instrumented systems (SIS) used in oil & gas production facilities

• Power generation monitoring systems including turbine and boiler protection

• Industrial automation environments requiring stable analog signal processing

• Pharmaceutical and fine chemical manufacturing with strict process control

Performance Advantages

• High-precision analog signal acquisition for stable process monitoring

• Reliable electrical isolation protecting control systems from field interference

• Industrial-grade durability for continuous operation in harsh environments

• Fast signal processing supporting real-time safety control systems

• Built-in diagnostics enabling early detection of signal abnormalities

• Seamless integration with safety-oriented automation architectures

Technical FAQs

1. What types of analog signals does the F6214 support?
The module processes standard industrial analog signals, particularly 4–20 mA current loops widely used in process instrumentation.

2. Does the module include channel isolation?
Yes, electrical isolation is implemented to protect both the field devices and the control system from interference.

3. Can the F6214 operate in safety-critical systems?
Yes, the module is designed for integration within safety-oriented automation and protection systems.

4. How is signal accuracy maintained during operation?
Precision analog-to-digital conversion and internal signal conditioning ensure stable and accurate measurement results.

5. Are diagnostic functions available?
Yes, the module includes continuous diagnostic monitoring to detect signal faults or abnormal input conditions.

6. Is the module compatible with common industrial transmitters?
Yes, it interfaces easily with standard transmitters used for pressure, flow, temperature, and level measurement.

7. Can it be used in redundant control architectures?
Yes, the module can be deployed in redundant safety control configurations to improve system reliability.

8. How are signals transmitted to the main controller?
Analog input signals are converted internally and communicated digitally through the system backplane.

9. Does the module provide protection against electrical noise?
Yes, built-in filtering and shielding reduce the impact of electrical noise from field wiring.

10. Does the module require configuration during commissioning?
Depending on the control platform setup, basic parameter configuration may be required for optimal operation.
