Brand:Hima DCS Modules Item No.:F7105 Product Origin:Germany Product Dimensions:25 x 127 x 163 mm Product Weight:0.25 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

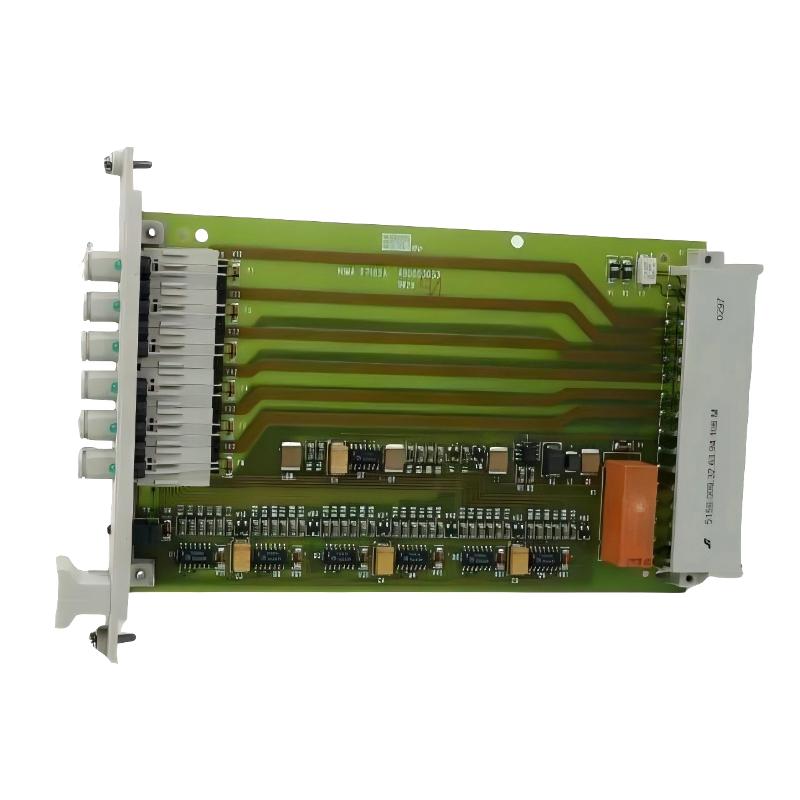

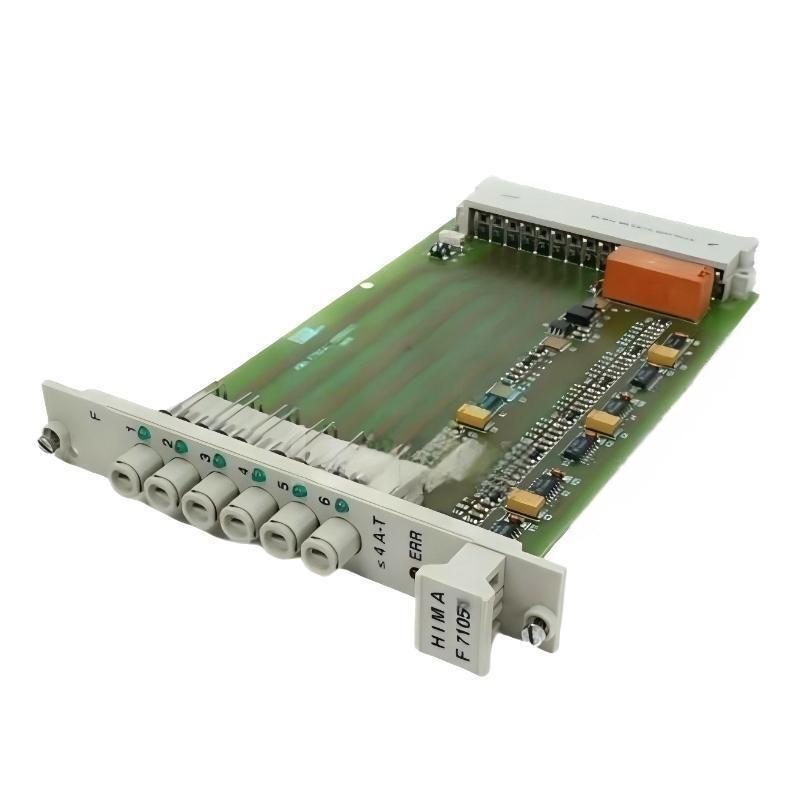

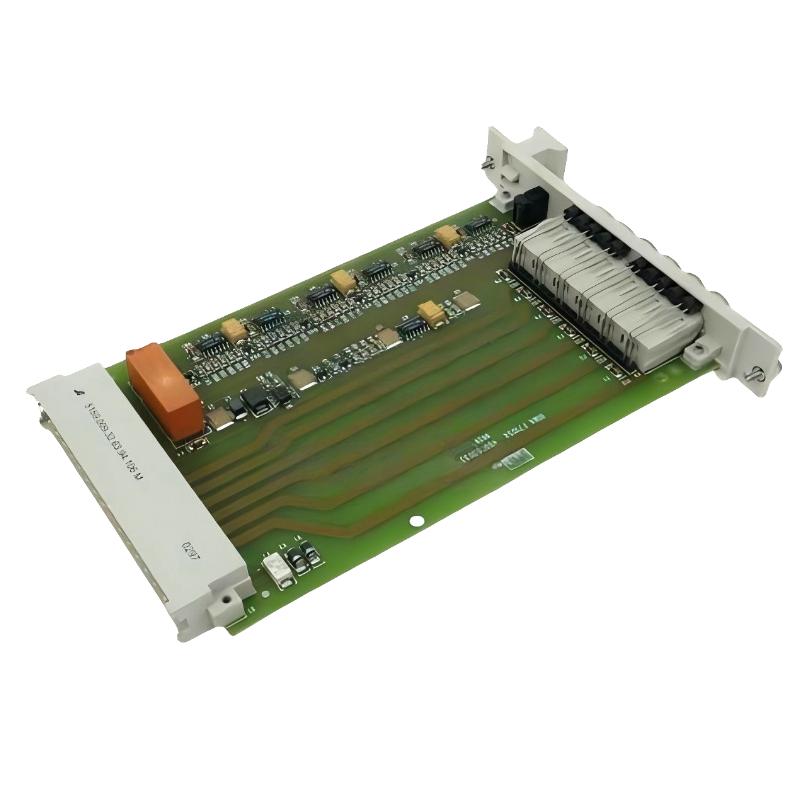

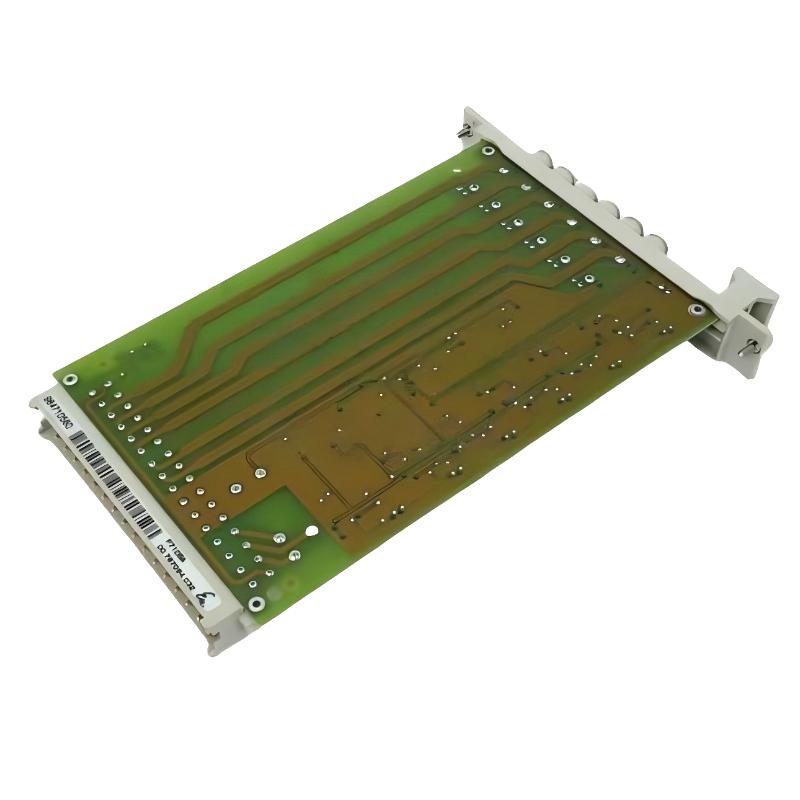

The Hima F7105 Analog Input Processing Module provides reliable conversion and processing of analog field signals for industrial automation and safety control systems. Designed for high-precision monitoring, it ensures accurate data delivery to controllers while maintaining signal integrity and system reliability. Its robust industrial construction, electrical isolation, and diagnostic capabilities make it ideal for safety-critical environments requiring continuous operation and dependable analog signal management.
Technical Specifications
Parameter
Specification
Model
F7105
Module Type
Analog Input Processing Module
Function
Analog signal acquisition and conversion
Signal Type
Industrial analog signals (e.g., 4–20 mA)
Diagnostic Features
Integrated signal and fault monitoring
Installation
Rack-mounted module
Operating Environment
Industrial automation systems
Dimensions
25 × 127 × 163 mm
Weight
0.25 kg
Recommended Related Models
Model
Module Type
F7106
Analog Input Module
F6214
Analog Input Module
F3236
Digital Input Module
F3221
Digital Output Module
F7130
Power Distribution Module
Popular Related Models
Model
Module Type
F8621
Central Processing Module
F8650E
Communication Module
F7126
Power Supply Module
F6215
Analog Input Module
F7130A
Power Module
Typical Application Scenarios
Processing analog input signals in industrial safety control systems
Converting field instrumentation data for safety and automation controllers
Monitoring process parameters such as pressure, temperature, and flow
Integration within chemical, petrochemical, and pharmaceutical plants
Supporting safety instrumented systems (SIS) with precise analog data
Reliable analog signal management for power generation and oil & gas facilities
Core Performance Benefits
High-precision signal processing ensuring accurate data for control systems
Robust design suitable for continuous industrial operation
Fast and reliable analog-to-digital conversion for real-time monitoring
Electrical isolation protecting control system from field interference
Integrated diagnostics for fault detection and system reliability
Seamless compatibility with modular safety automation platforms
Technical FAQs
1. What types of signals does the F7105 module process?
It is designed for industrial analog signals, including 4–20 mA current loops from field transmitters.
2. Is signal isolation included in the module?
Yes, electrical isolation is provided to ensure reliable signal transmission and protect the control system.
3. Can the module be used in safety instrumented systems?
Yes, it is specifically built to support safety-critical control environments.
4. How does the module ensure accurate signal conversion?
Through precision analog-to-digital conversion combined with internal signal conditioning and filtering.
5. Are diagnostic functions available?
Yes, the module includes diagnostics to detect wiring faults, signal abnormalities, and operational issues.
6. Can it interface with standard industrial transmitters?
Yes, it is compatible with most field transmitters used in process monitoring applications.
7. Is the module suitable for continuous operation?
Yes, it is designed for 24/7 industrial operation in demanding environments.
8. How does the module transmit processed signals to the controller?
Converted digital signals are communicated through the system backplane to the central controller.
9. Can it be integrated into modular control systems?
Yes, it is designed for seamless integration with rack-based safety and automation systems.
10. Why is a dedicated analog processing module important?
It ensures stable, accurate, and reliable conversion of analog signals for critical control and safety functions.
