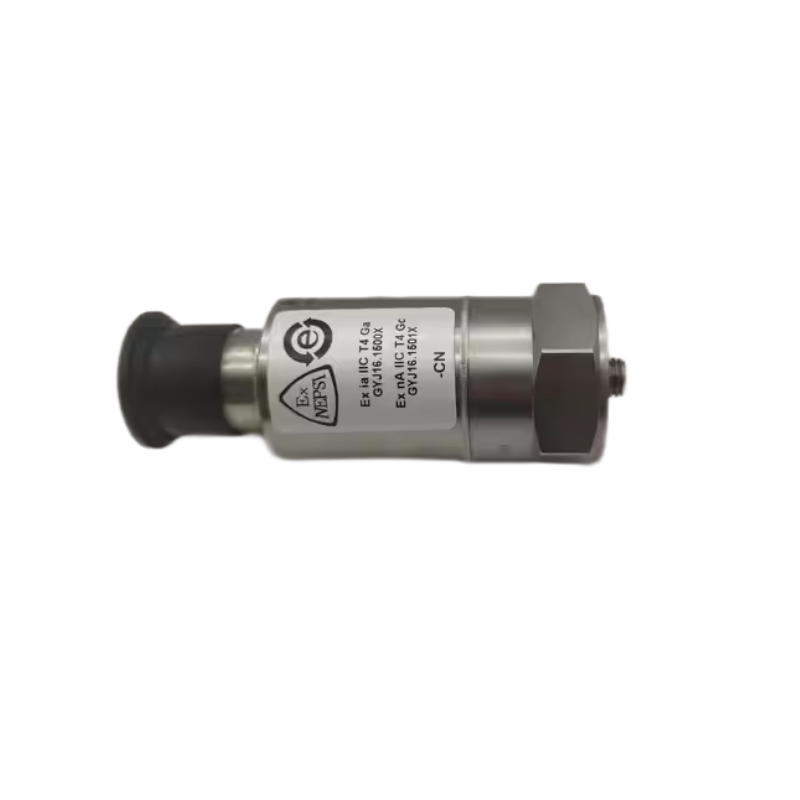

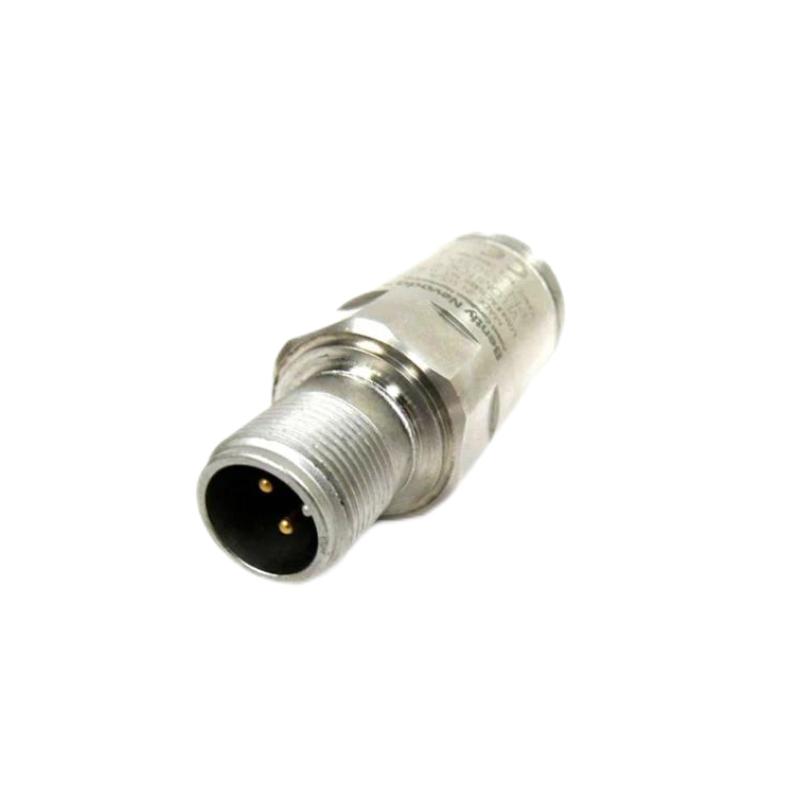

Bently 177230-02-02-05 Vibration Monitoring Module

Introduction

The Bently 177230-02-02-05 is a high-performance vibration monitoring module designed to provide real-time monitoring and condition analysis for critical rotating machinery. As part of the Bently Nevada 1700 Series, this module is specifically engineered to detect early signs of mechanical failure, such as imbalances, misalignments, and bearing damage. By offering continuous vibration data, the module supports predictive maintenance strategies, helping to reduce unexpected downtime and avoid costly repairs.

With its advanced diagnostics and robust design, the 177230-02-02-05 is suitable for use in demanding industrial environments, including oil & gas, mining, manufacturing, and power generation sectors. It provides the necessary tools for maintaining the health of critical equipment and ensuring optimal performance throughout its operational lifespan.

Technical Specifications

Specification	Details
Model	177230-02-02-05
Module Type	Vibration Monitoring Module
Input Voltage	24 VDC
Output	Analog & Digital Signals
Size (W x H x D)	180 x 120 x 90 mm
Weight	1.5 kg
Operating Temperature	-20°C to +60°C
Protection Features	Overvoltage, Reverse Polarity, Short-circuit
Certifications	CE, UL, RoHS

Applications

Rotating Equipment Monitoring: The 177230-02-02-05 module is ideal for continuous vibration monitoring of key rotating machinery such as motors, compressors, pumps, and turbines. This enables early identification of mechanical faults before they lead to equipment failure.
Condition Monitoring: By monitoring critical components like bearings and shafts, the module helps detect wear, damage, or any mechanical imbalance, improving overall equipment reliability.
Predictive Maintenance: With real-time vibration data, the module supports predictive maintenance, enabling maintenance teams to act proactively and schedule repairs based on actual equipment condition, thus reducing downtime and costs.
Industrial Automation: The module can be integrated into industrial automation systems to trigger automatic alerts or shutdowns when vibration levels exceed preset thresholds, providing an additional layer of protection for machinery.
Power Generation: In power generation plants, the 177230-02-02-05 helps monitor the condition of generators, turbines, and other mission-critical equipment, improving their operational lifespan and efficiency.

Advantages

Real-Time Vibration Monitoring: The 177230-02-02-05 module continuously monitors machinery vibration, providing up-to-date data that helps detect issues like imbalances or misalignments early.
Prevents Major Failures: The module identifies potential faults before they cause major breakdowns, reducing the risk of unplanned downtime and improving maintenance planning.
Dual Output Flexibility: Supporting both analog and digital outputs, this module integrates seamlessly with various monitoring systems, providing flexibility for different applications.
Compact and Robust Design: With compact dimensions of 180 x 120 x 90 mm and a weight of 1.5 kg, the module is easy to install even in space-constrained environments while maintaining high durability in challenging industrial conditions.
Built-In Protection: The 177230-02-02-05 includes overvoltage, reverse polarity, and short-circuit protection, ensuring reliable operation in diverse power conditions.
Wide Temperature Range: Designed to function in a wide range of temperatures, the module operates effectively in environments with temperatures between -20°C to +60°C.

Technical FAQs

What is the input voltage for the Bently 177230-02-02-05 module?
The input voltage is 24 VDC.
What are the dimensions of the Bently 177230-02-02-05 module?
The module measures 180 x 120 x 90 mm.
What protection features are included in the Bently 177230-02-02-05 module?
The module includes overvoltage, reverse polarity, and short-circuit protection.
What is the weight of the Bently 177230-02-02-05 module?
The weight is 1.5 kg.
What types of outputs are available for the Bently 177230-02-02-05 module?
The module supports both analog and digital outputs.
What is the operating temperature range of the Bently 177230-02-02-05 module?
The operating temperature range is -20°C to +60°C.
Can the Bently 177230-02-02-05 module be integrated with predictive maintenance systems?
Yes, the module enables predictive maintenance by providing real-time vibration data, allowing maintenance teams to address issues proactively.
What industries benefit from the Bently 177230-02-02-05 module?
The 177230-02-02-05 is used in industries such as oil & gas, power generation, mining, and manufacturing.
What certifications does the Bently 177230-02-02-05 module have?
The module is CE, UL, and RoHS certified.
What are the main advantages of the Bently 177230-02-02-05 module?
The 177230-02-02-05 module offers real-time vibration monitoring, early fault detection, dual output options, compact design, and built-in protection, ensuring high reliability and performance for critical machinery.
