Introduction

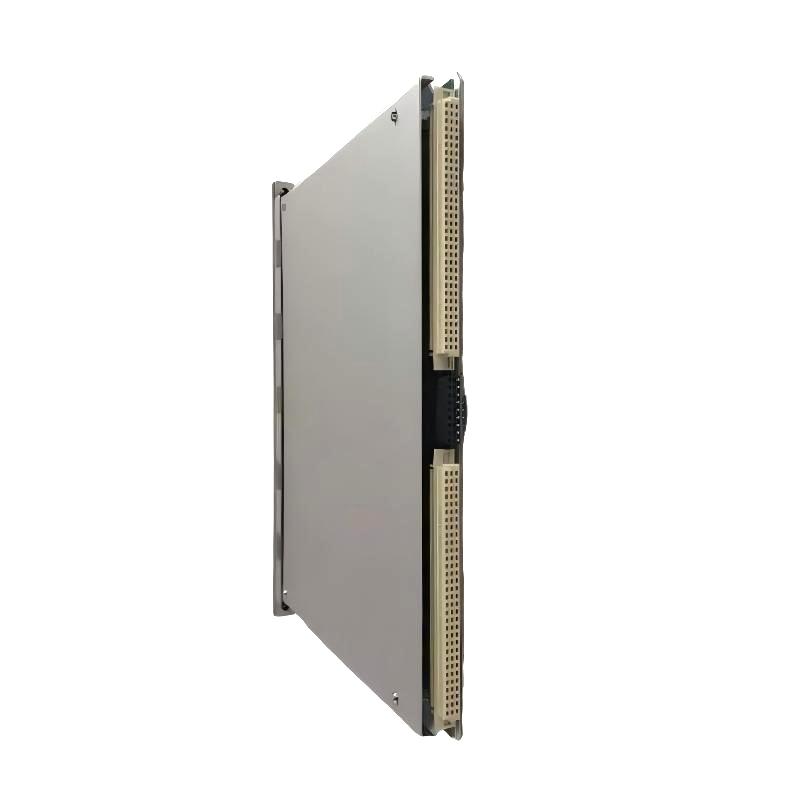

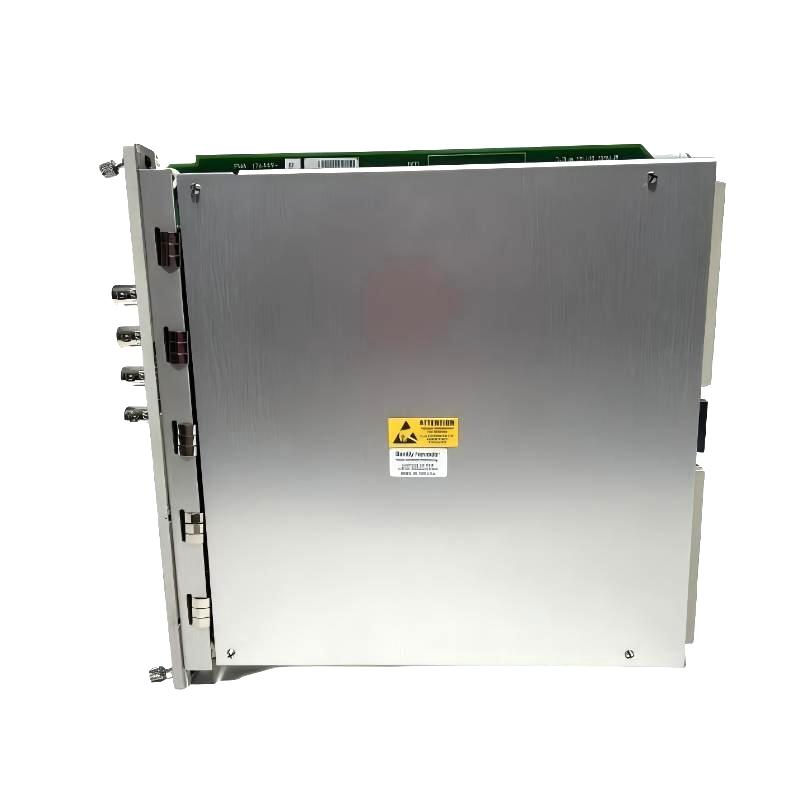

The Bently Nevada 3500/42M 176449-02 Preamplifier Seismic Monitor is a precision module for enhancing the sensitivity and accuracy of seismic and vibration monitoring in industrial machinery protection systems. Its integrated preamplifier ensures clean signal transmission, enabling early detection of potential machinery issues. Compact, robust, and designed for 3500 rack integration, it is ideal for plants seeking reliable, high-fidelity vibration and seismic monitoring.

Technical Specifications

Parameter	Details
Model	3500/42M 176449-02
Function	Preamplifier Seismic Monitor
Dimensions	241.3 × 24.4 × 241.8 mm
Weight	0.91 kg
System Compatibility	Bently Nevada 3500 Series Racks
Cooling	Natural convection
Installation	Standard 3500 rack slot
Signal Types	Seismic and vibration inputs
Channels	Supports multiple sensor inputs
Operating Environment	Turbine halls, compressor stations, industrial machinery

Recommended Related Models

Bently Nevada 3500/05 System Rack
Bently Nevada 3500/42 Prox/Velom I/O Module
Bently Nevada 3500/22M 164466-01 Transient Data Interface Module
Bently Nevada 3500/15 126399-01 AC Power Module
Bently Nevada 3300 XL Seismic or Proximity Sensors

Popular Related Models

Bently Nevada 3500/42 140471-01 Prox/Velom I/O Module
Bently Nevada 3500/32 125712-01 4-Channel Relay Module
Bently Nevada 3500/33 149986-01 16-Channel Relay Module
Bently Nevada 3500/45 Position Monitor
Bently Nevada 3500/50 Tachometer Module

Applications

The Bently Nevada 3500/42M 176449-02 Preamplifier Seismic Monitor is designed for advanced vibration and seismic monitoring of industrial machinery. Its applications include:

Monitoring turbines, compressors, and pumps
Seismic monitoring of rotating equipment in power plants and refineries
Detecting high-frequency vibration events and anomalies
Protecting critical machinery in petrochemical, power generation, and heavy industrial environments
Integration into Bently Nevada 3500 racks for high-speed data acquisition and analysis

Advantages

High-Sensitivity Seismic Monitoring: Captures even low-amplitude vibration events for early detection of machinery issues.
Integrated Preamplifier: Boosts sensor signals for accurate data transmission.
Compact Rack-Friendly Design: Slim module footprint fits standard 3500 racks efficiently.
Reliable Performance: Operates in harsh industrial environments with vibration and temperature fluctuations.
Seamless Integration: Works with 3500/42 and 3500/42M Proximitor or velocity monitoring systems.
Maintenance-Friendly: Easy installation and service reduce downtime.

Technical FAQs

What is the primary function of the 3500/42M module?
To preamplify seismic sensor signals and provide accurate input to the 3500 monitoring system.
Is it compatible with standard 3500 racks?
Yes, designed to fit standard 19-inch and compatible 12-inch racks.
Does it support multiple seismic inputs?
Yes, supports multiple sensor channels depending on configuration.
Can it operate in harsh industrial conditions?
Yes, built to withstand vibration, temperature changes, and industrial environments.
Is redundancy supported?
Multiple modules can be installed for parallel monitoring and increased reliability.
Is the module hot-swappable?
Replacement should be performed with power isolated following safety procedures.
What maintenance is required?
Minimal; inspect connections periodically and ensure dust-free operation.
Can it integrate with plant control systems?
Yes, via 3500 system communication modules for plant-wide monitoring.
What industries benefit most from this module?
Power generation, oil & gas, petrochemical, and heavy industrial machinery monitoring.
Does it improve fault detection?
Yes, the preamplifier enhances sensitivity to capture transient and low-level seismic events.
