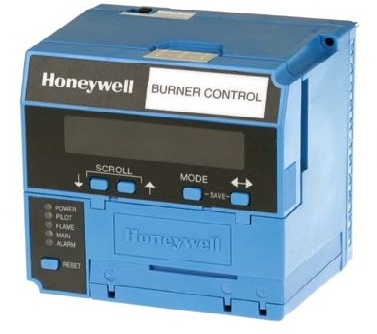

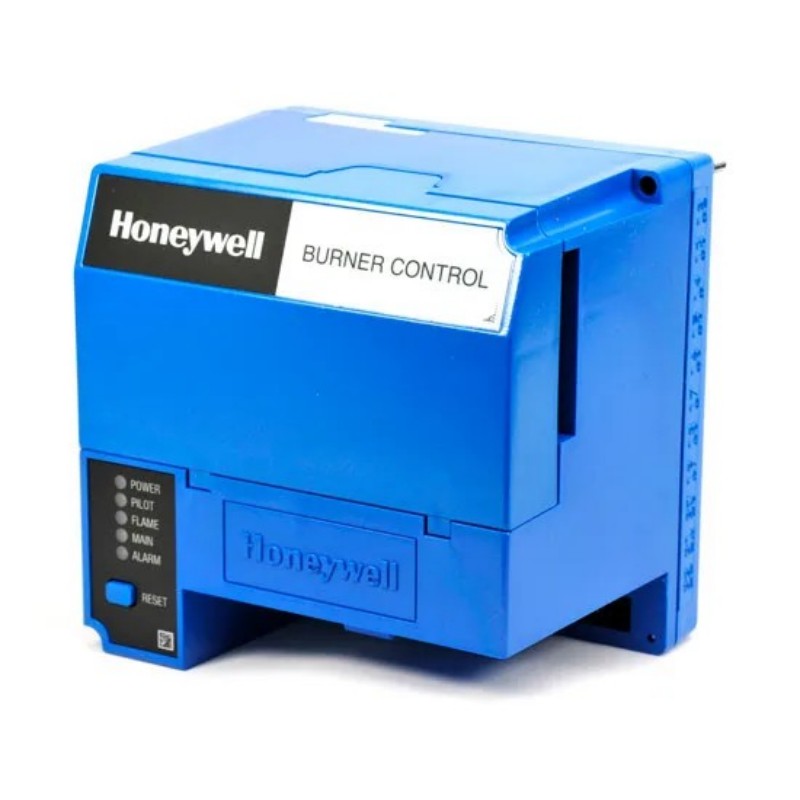

The Honeywell RM7800E1010 is a microprocessor‑based programmable burner control module from Honeywell’s 7800 Series designed for automatic single‑burner applications using gas, oil, or combination fuels. This intelligent burner controller delivers advanced ignition sequencing, flame supervision, lockout safety, and diagnostic functions that extend beyond conventional analogue controls — making it ideal for modern industrial and commercial combustion systems.
Integrated with a Keyboard Display Module (KDM), the RM7800E1010 offers on‑board programming capability, real‑time status feedback, and fault history display for simplified commissioning, monitoring, and maintenance. It supports selectable timing for flame establishment and purge sequences, ensuring flexibility and compliance with safety standards.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | RM7800E1010 |
| Series | 7800 Series Burner Control |
| Product Type | Microprocessor‑Based Burner Control Module |
| Power Supply | 120 VAC ±10 %, –15 %, 50/60 Hz |
| Power Consumption | ~10 W |
| Main Flame Establishing Period | 10 s or 15 s (selectable) |
| Pilot Flame Establishing Period | 4 s or 10 s (selectable) |
| Pilot Type | Interrupted |
| Second Stage Pilot Valve | Interrupted |
| Early Spark Termination | Yes (≈5 s) |
| Interlocks | Lockout on fault |
| Flame Supervision | Compatible with Honeywell flame detectors |
| Display | Integrated Keyboard Display Module (KDM) |
| Indicators | 5 LEDs for sequence and fault status |
| Memory | Non‑volatile (retains history/lockout data) |
| Operating Temperature | –40 °C to +60 °C |
| Mounting | Standard 7800 Series subbase |
| Dimensions (L × W × H) | 127 × 127 × 133 mm (with Q7800A subbase) |
| Weight | 0.7 kg (approx. net with display subbase) |
| Compliance | UL Listed, CSA Certified, CE Compliant |
Recommended Related Models
| Model | Description |
|---|---|
| Honeywell RM7800E2010 | Flame safeguard relay with grounding pin |
| Honeywell RM7800G1018 | 7800 Series control with selectable interlocks |
| Honeywell Q7800A | Universal wiring subbase |
| Honeywell R7847 | Flame amplifier for RM7800 |
| Honeywell ST7800A | Plug‑in purge timer card |
Popular Honeywell Combustion & Control Products
| Model | Product Type |
|---|---|
| Honeywell S7800A1001 | Replacement display module |
| Honeywell R7848 | Flame signal amplifier |
| Honeywell RM7800L1012 | Alternate burner control variant |
| Honeywell RM7800M1011 | Burner control with running interlock |
| Honeywell Q7800B | Subbase with extended connections |
