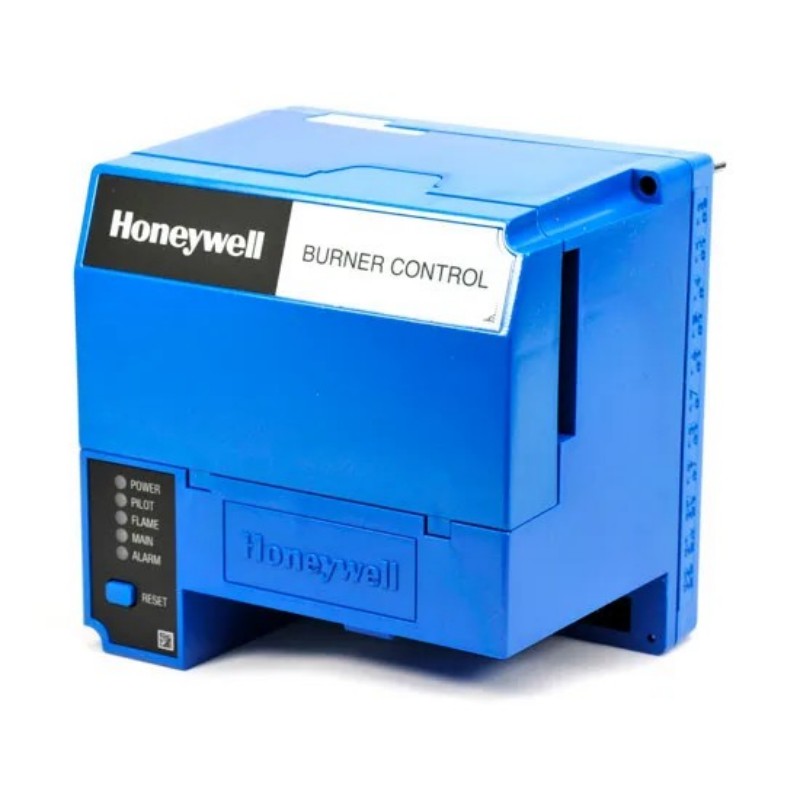

The Honeywell RM7800G1018 is a robust microprocessor‑based burner control module from the renowned Honeywell 7800 Series, engineered to deliver safe, sequenced combustion control with enhanced diagnostic and safety features. Ideal for industrial, commercial, and institutional combustion systems, this burner controller automates ignition, flame supervision, timing sequences, and safety interlocks with precise logic, helping protect equipment and personnel while improving operational reliability.

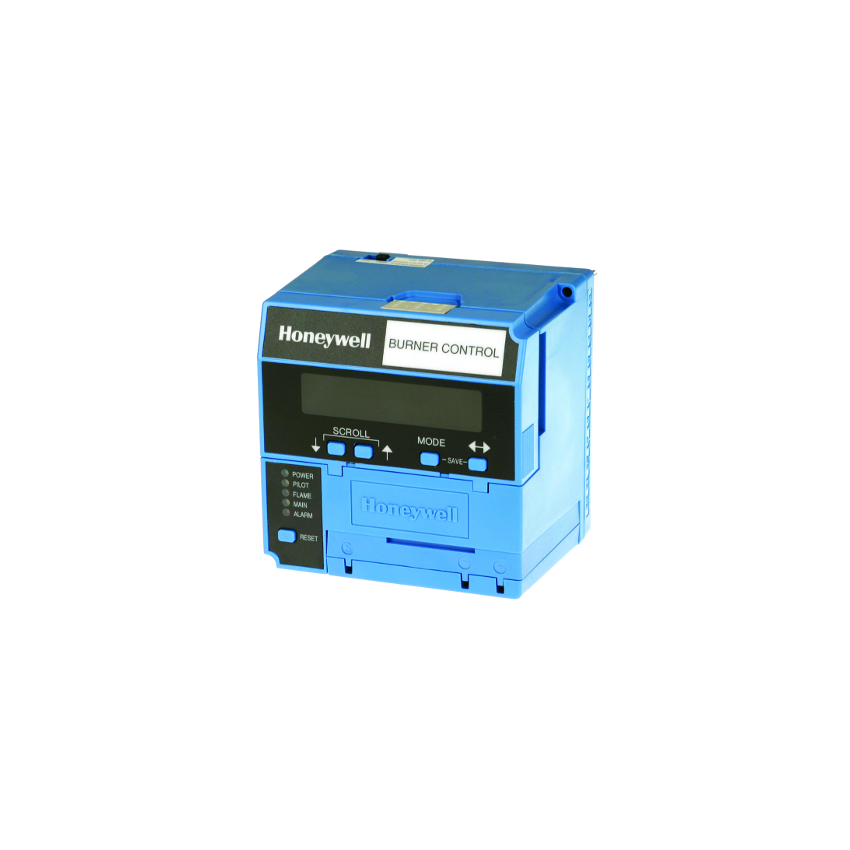

Equipped with an integrated Keyboard Display Module (KDM), the RM7800G1018 provides real‑time status monitoring, error codes, and programmable sequencing parameters. Its intelligent logic and rugged design help meet stringent safety standards in applications where consistent flame detection, purge control, and lockout protection are required.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | RM7800G1018 |
| Series | Honeywell 7800 Series Burner Controls |
| Product Type | Microprocessor‑Based Burner Control Module with Display |
| Power Supply | 120 VAC ±10 %, 50/60 Hz |
| Power Consumption | Approx. 10 W |
| Main Flame Establishing Period | 10 s or 15 s (selectable) |
| Pilot Flame Establishing Period | 4 s or 10 s (selectable) |
| Pilot Type | Interrupted Pilot |
| Safety Interlocks | Lockout on flame or sequence fault |
| Flame Supervision | Compatible with Honeywell flame detectors |
| Display | Integrated Keyboard Display Module (KDM) |
| Indicators | Multi‑LED status & fault indication |
| Memory | Non‑volatile fault history retention |
| Operating Temperature | –40 °C to +60 °C |
| Mounting | Standard 7800 Series subbase |
| Protection Class | IP20 (installed enclosure) |
| Dimensions (L × W × H) | 127 × 127 × 133 mm |
| Weight | 0.7 kg |
| Certifications | UL Listed, CSA Certified, CE Compliant |
The RM7800G1018 integrates logic sequencing, programmable delays, and full flame safeguard control into a single module, making it suitable for a wide range of burner automation applications.
