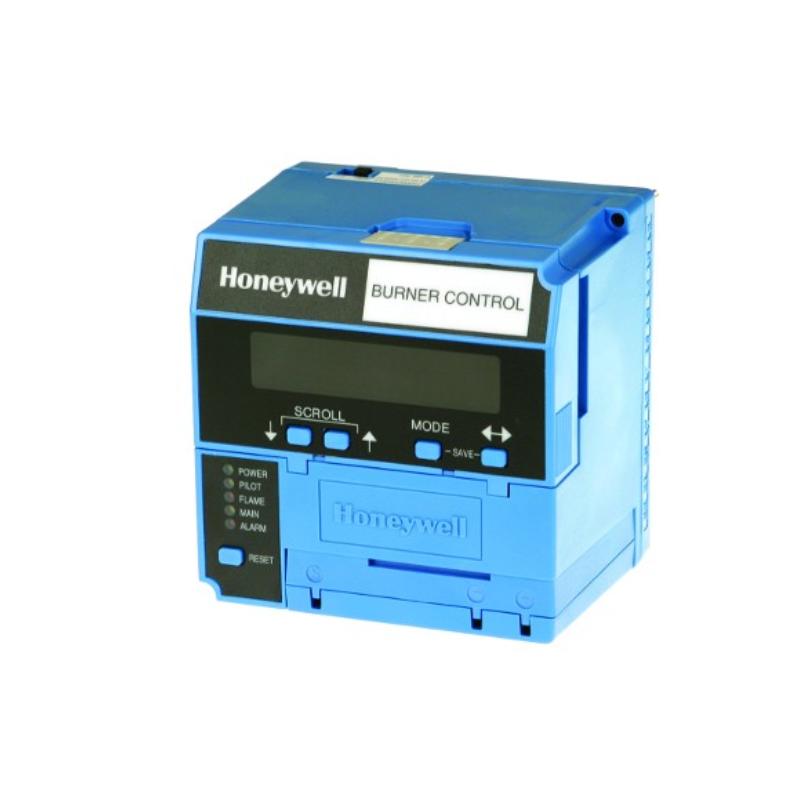

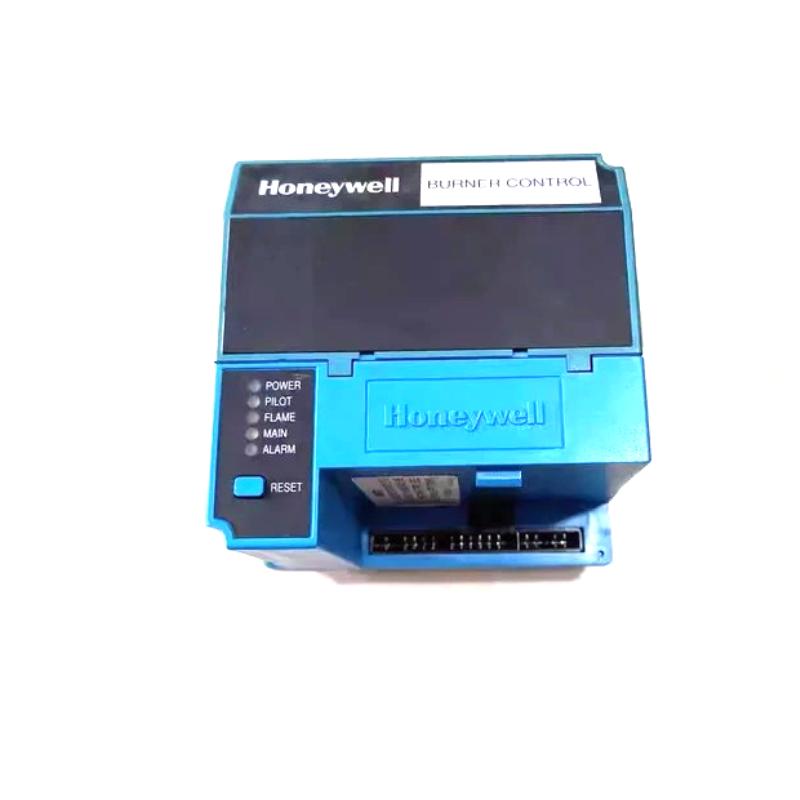

The Honeywell RM7800L1053 is an advanced microprocessor‑based burner management control module from Honeywell’s trusted 7800 Series, engineered for precise, safe, and automated combustion control in industrial and commercial combustion systems. It integrates sequenced ignition logic, flame supervision, advanced safety lockouts, and on‑board diagnostics — delivering dependable performance, rapid fault visibility, and flexible timing control for critical burner applications.

Equipped with an integrated diagnostic display and keypad, the RM7800L1053 enables installers and maintenance engineers to view sequence status and fault codes onsite without the need for external tools, simplifying commissioning and troubleshooting.

Technical Specifications

Parameter	Specification
Model	RM7800L1053
Series	Honeywell 7800 Series Burner Controls
Product Type	Microprocessor‑Based Burner Management Control
Power Supply	120 VAC ±10 %, 50/60 Hz
Power Consumption	Approx. 10 W
Flame Supervision	Continuous monitored flame status
Safety Interlocks	Automatic lockout on flame loss or timing faults
Display	Integrated diagnostic display with keypad
Indicators	Multi‑LED status & fault indicators
Timing	Programmable purge, ignition, flame verify, run sequences
Compatible Flame Detectors	Honeywell R7847 / R7848 and similar flame amplifiers
Memory	Non‑volatile fault and sequence history
Operating Temperature	–40 °C to +60 °C
Mounting	Standard 7800 Series base / subbase
Protection Class	IP20 (installed in enclosure)
Dimensions (L × W × H)	127 × 127 × 133 mm
Weight	0.70 kg
Certifications	UL Listed, CSA Certified, CE Compliant

The controller’s integrated display and logic sequencing help ensure safe combustion startup, steady flame supervision, and rapid diagnostics in critical heating applications.

Recommended Related Models

Model	Description
Honeywell RM7800G1018	Burner control with advanced interlocks and display
Honeywell RM7800L1012	Lockout burner control with display
Honeywell RM7800L1046	Lockout and diagnostics‑oriented burner control
Honeywell Q7800A	Standard wiring subbase
Honeywell R7847	Flame amplifier accessory

Popular Honeywell Combustion Control Products

Model	Product Type
Honeywell R7848	Flame signal amplifier
Honeywell ST7800A	Programmable purge timer card
Honeywell S7800A1001	Replacement display module
Honeywell RM7800M1011	Maintenance‑oriented burner control variant
Honeywell Q7800B	Subbase with extended terminal access

Typical Industrial Applications

The Honeywell RM7800L1053 is designed for automated burner control tasks where safety, flame monitoring, and sequenced combustion logic are essential:

Industrial boiler and furnace burner management
Process heaters in manufacturing facilities
Commercial HVAC combustion control systems
Auxiliary burners in power generation
Safety interlock and lockout systems
Industrial ovens and drying systems

Its integrated safety, diagnostics, and timing logic make it suitable for environments requiring high uptime and compliance with safety interlock standards.

Key Advantages

Programmable Burner Sequencing
Configure purge, ignition, flame verify, and run sequences to match system requirements.

Integrated Display and Diagnostics
On‑board display and keypad provide real‑time status and fault information, improving service visibility.

Advanced Safety Lockouts
Auto lockout on flame loss or sequence fault enhances system safety.

Industrial Reliability
Designed for use in demanding environments from –40 °C to +60 °C.

Modular Installation
Mounts easily on standard Honeywell 7800 Series bases, simplifying replacement and upgrades.

Technical FAQs

1. What is the Honeywell RM7800L1053?
It is a microprocessor‑based burner management control module with integrated lockout and diagnostics display for combustion systems.

2. What power supply does it require?
The module operates on 120 VAC, 50/60 Hz.

3. Does it include a display?
Yes — it features an integrated diagnostic display and keypad.

4. What are the physical dimensions?
127 × 127 × 133 mm.

5. What is the approximate weight?
0.70 kg.

6. What flame detectors are supported?
Compatible with standard Honeywell flame amplifiers such as R7847 / R7848.

7. What safety features are included?
Automatic lockout on flame loss or timing fault, with non‑volatile fault history memory.

8. What operating environments can it support?
From –40 °C to +60 °C, suitable for industrial combustion applications.

9. Where is it installed?
Installed on Honeywell 7800 Series bases within combustion control cabinets.

10. Why choose RM7800L1053?
Because it provides programmable safety sequencing, integrated diagnostics, and robust lockout features in a single, service‑friendly controller.
