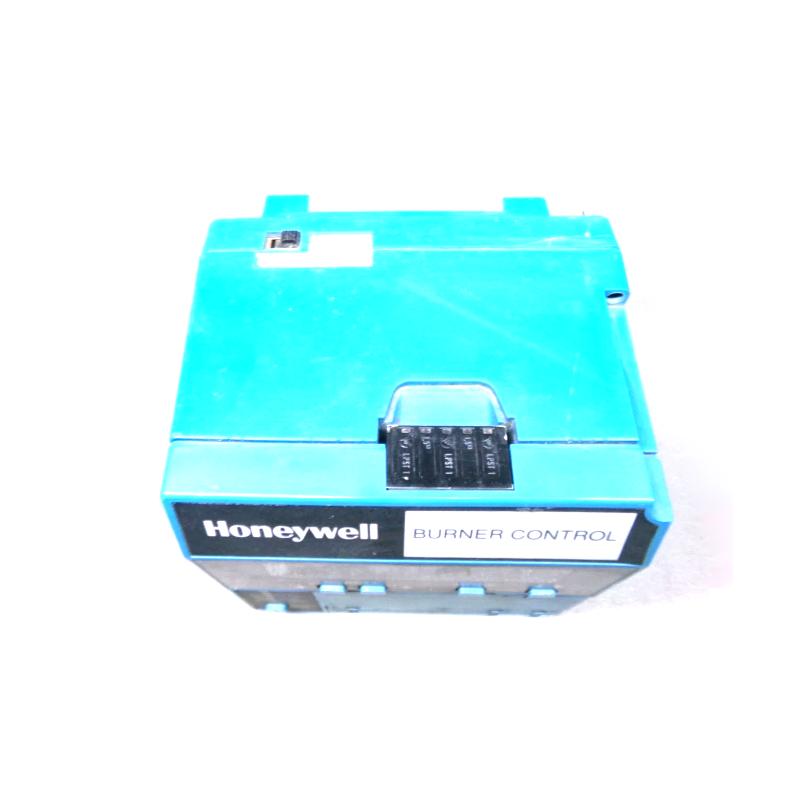

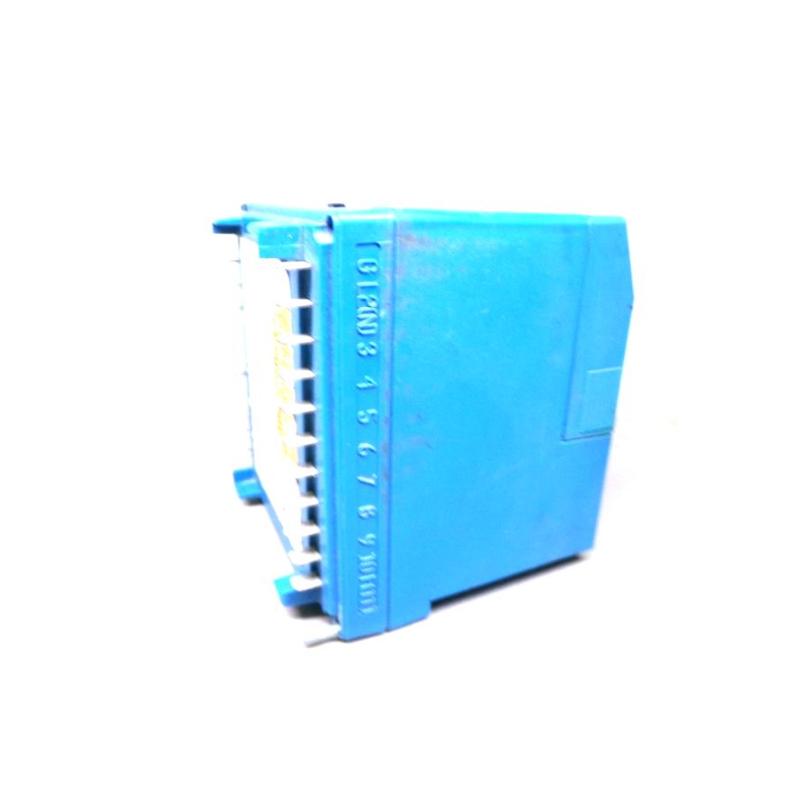

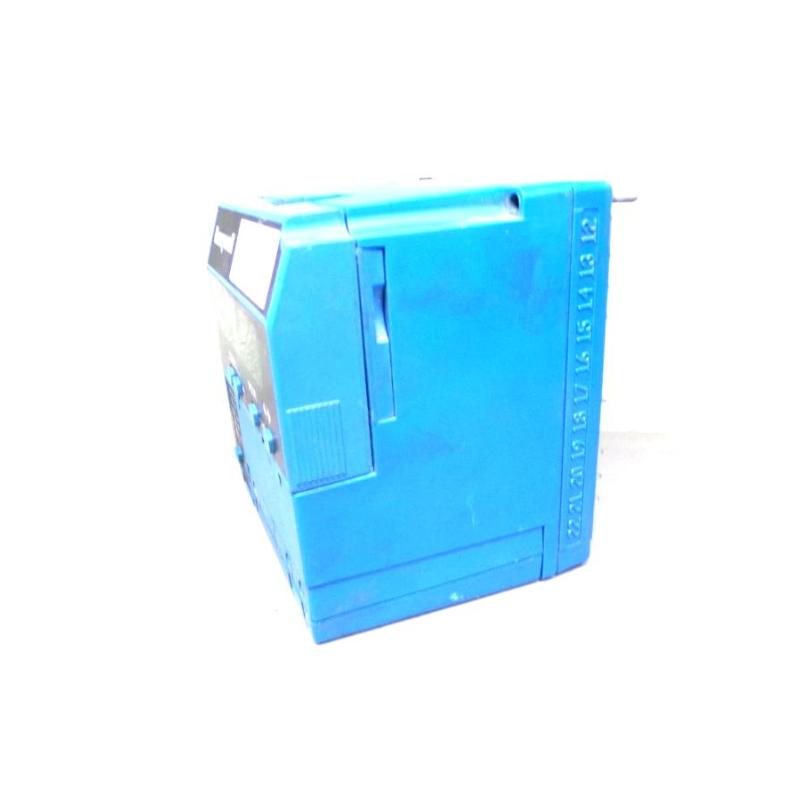

The Honeywell RM7800M1011 is a rugged microprocessor‑based burner management control from the Honeywell 7800 Series, designed for automated and safe combustion control in industrial, commercial, and institutional heating systems. Unlike basic burner controls, the RM7800M1011 incorporates enhanced maintenance logic, real‑time diagnostic feedback, and automated lockout protection, helping engineers monitor system status, view fault history, and maintain combustion equipment more efficiently.
Equipped with an integrated display and keypad, this module simplifies commissioning and troubleshooting by displaying status codes, timing sequences, and diagnostic information directly at the controller — eliminating the need for external interfaces during setup or service. The programmable sequencing logic supports purge timing, ignition control, flame verification, and multi‑stage lockout handling, making the RM7800M1011 a versatile choice for demanding combustion applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | RM7800M1011 |
| Series | Honeywell 7800 Series Burner Controls |
| Product Type | Microprocessor‑Based Burner Management Control |
| Power Supply | 120 VAC ±10 %, 50/60 Hz |
| Power Consumption | Approx. 10 W |
| Flame Supervision | Continuous flame monitoring |
| Safety Interlocks | Integrated automatic lockouts with maintenance logic |
| Display | Integrated diagnostic display with keypad |
| Indicators | Multi‑LED status & fault indicators |
| Sequencing | Programmable purge, ignition, flame establish, run |
| Flame Detector Support | Compatible with Honeywell flame amplifiers (R7847, R7848) |
| Memory | Non‑volatile fault and sequence history |
| Operating Temperature | –40 °C to +60 °C |
| Mounting | Standard 7800 Series base / subbase |
| Protection Class | IP20 (installed enclosure) |
| Dimensions (L × W × H) | 127 × 127 × 133 mm |
| Weight | 0.70 kg |
| Certifications | UL Listed, CSA Certified, CE Compliant |
The integrated display provides live sequence feedback and fault codes, improving serviceability, diagnostics, and maintenance turnaround time while ensuring safe and stable combustion control.
Recommended Related Models
| Model | Description |
|---|---|
| Honeywell RM7800G1018 | Advanced burner control with interlocks and diagnostics |
| Honeywell RM7800L1012 | Lockout logic burner control |
| Honeywell RM7800L1046 | Lockout & safety logic with display |
| Honeywell Q7800A | Standard wiring subbase accessory |
| Honeywell R7847 | Flame amplifier interface module |
Popular Honeywell Combustion & Control Products
| Model | Product Type |
|---|---|
| Honeywell R7848 | Flame signal amplifier |
| Honeywell ST7800A | Programmable purge timer card |
| Honeywell S7800A1001 | Replacement display unit |
| Honeywell RM7800E1010 | Primary burner control (discontinued) |
| Honeywell Q7800B | Subbase with extended connections |
