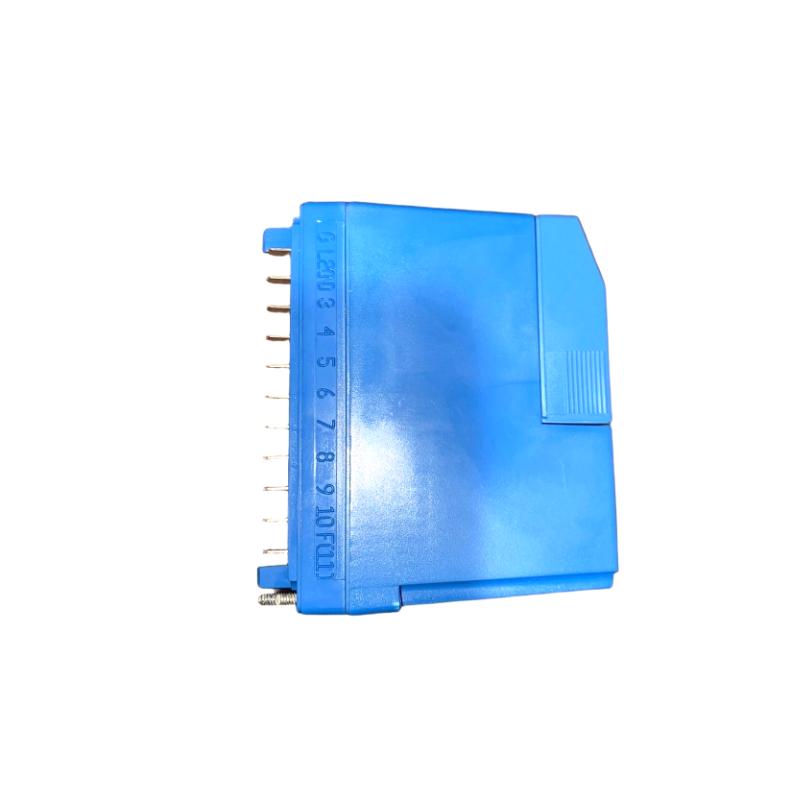

The Honeywell RM7800M1037 is an advanced microprocessor‑based burner management control module from the trusted Honeywell 7800 Series family. Engineered for automated combustion sequencing, flame supervision, and enhanced maintenance logic, this controller provides reliable safety interlocks, real‑time diagnostic feedback, and programmable timing functions critical to industrial and commercial combustion systems.
Ideal for applications such as industrial boilers, process heaters, furnaces, and HVAC burner systems, the RM7800M1037 integrates both safety and serviceability in a single module. Its built‑in display with keypad allows technicians to view status codes, timing information, and fault history on‑site — simplifying commissioning and troubleshooting without external diagnostic tools.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | RM7800M1037 |
| Series | Honeywell 7800 Series Burner Controls |
| Product Type | Microprocessor‑Based Burner Management Control |
| Power Supply | 120 VAC ±10 %, 50/60 Hz |
| Power Consumption | Approx. 10 W |
| Flame Supervision | Continuous monitored flame signal |
| Safety Interlocks | Automatic lockout on flame loss / sequence fault |
| Display | Integrated diagnostic display with keypad |
| Indicators | Multi‑LED status & fault indicators |
| Timing | Programmable purge, ignition, flame verify, run sequences |
| Flame Detector Support | Compatible with Honeywell flame amplifiers (R7847, R7848) |
| Memory | Non‑volatile fault and sequence history |
| Operating Temperature | –40 °C to +60 °C |
| Mounting | Standard Honeywell 7800 Series base / subbase |
| Protection Rating | IP20 (installed enclosure) |
| Dimensions (L × W × H) | 127 × 127 × 133 mm |
| Weight | 0.70 kg |
| Certifications | UL Listed, CSA Certified, CE Compliant |
The integrated display and maintenance logic make the RM7800M1037 particularly suitable for applications where service visibility and safety interlocks are priorities.
Recommended Related Models
| Model | Description |
|---|---|
| Honeywell RM7800G1018 | Advanced burner control with display |
| Honeywell RM7800L1012 | Lockout logic burner control |
| Honeywell RM7800L1046 | Lockout and diagnostics model |
| Honeywell Q7800A | Standard wiring subbase accessory |
| Honeywell R7847 | Flame amplifier interface |
Popular Honeywell Combustion Control Components
| Model | Product Type |
|---|---|
| Honeywell R7848 | Flame signal amplifier |
| Honeywell ST7800A | Programmable purge timer card |
| Honeywell S7800A1001 | Replacement display module |
| Honeywell RM7800E1010 | Primary burner control (discontinued) |
| Honeywell Q7800B | Subbase with extended terminal access |
