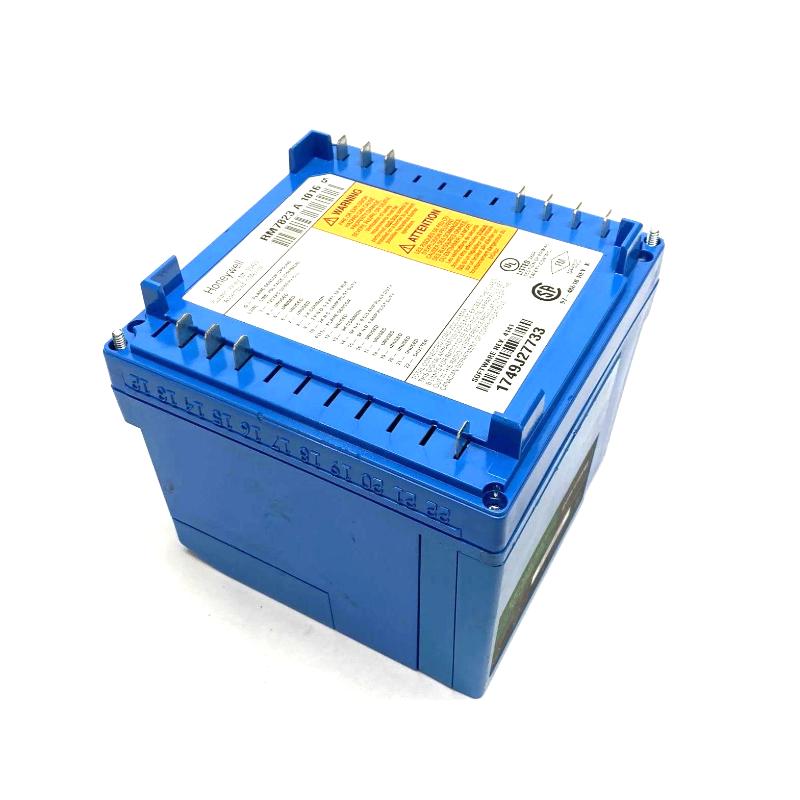

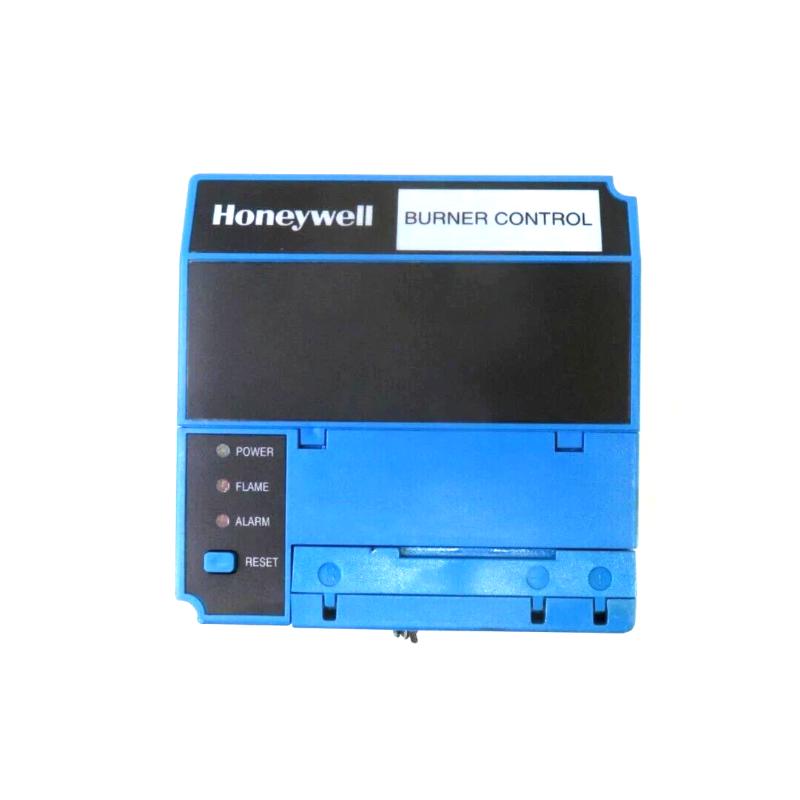

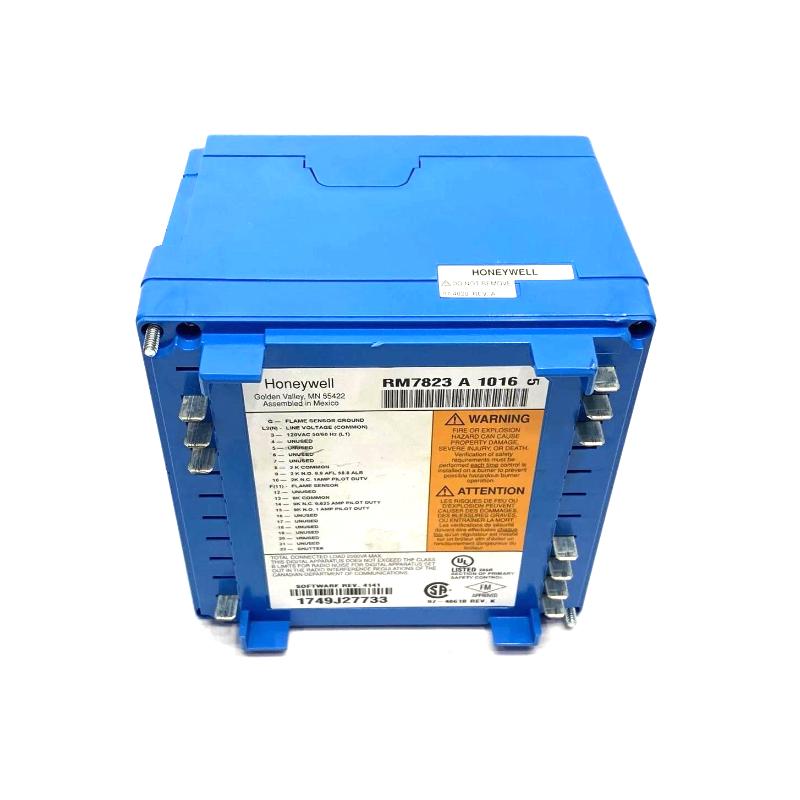

The Honeywell RM7823A1016 is a dedicated dual‑proof flame relay and amplifier module designed to interface with burner control systems in both industrial and commercial applications. Its primary function is to amplify low‑level flame signals from ultraviolet (UV) or infrared (IR) flame sensors and convert them into reliable logic level outputs for burner safety controls such as Honeywell RM78xx Series burner controllers.

This module is often used in boiler systems, furnace heaters, industrial ovens, and combustion control panels where accurate flame detection, signal conditioning, and relay output stability are essential. With robust design and proven Honeywell flame‑proofing characteristics, the RM7823A1016 helps ensure safe operation and dependable flame supervision within combustion automation systems.

Technical Specifications

Parameter	Specification
Model	RM7823A1016
Series	Honeywell RM78xx Flame Amplifier / Relay
Product Type	Dual‑Proof Flame Relay & Amplifier Module
Function	Amplifies flame sensor signal; provides relay logic output
Compatible Controllers	Honeywell RM7800 / IF Fault Interlock Controls
Input Flame Sensor Type	UV / IR flame sensors
Output Relays	Dual relay outputs for flame logic
Supply Voltage	120 VAC ±10 %, 50/60 Hz (typical)
Output Logic	Form‑C relay outputs (flame / fault / permissive)
Mounting	Control panel / cabinet mount
Operating Temp.	–20 °C to +60 °C
Storage Temp.	–40 °C to +85 °C
Protection Class	IP20 (installed within enclosure)
Dimensions (L × W × H)	160 × 100 × 50 mm
Weight	0.53 kg
Compliance	UL Listed, CSA Certified

The RM7823A1016 provides stable and reliable amplification and relay output for low‑level flame signals, improving safety performance in systems where precise flame confirmation is critical.

Recommended Related Models

Model	Description
Honeywell RM7800G1018	Burner control with integrated sequencer
Honeywell RM7800L1012	Lockout logic burner controller
Honeywell RM7800M1011	Maintenance‑oriented control
Honeywell R7847	Flame signal amplifier for 7800 Series
Honeywell ST7800A	Programmable purge timer card

Popular Honeywell Combustion & Control Components

Model	Product Type
Honeywell R7848	Flame signal amplifier module
Honeywell Q7800A	Standard wiring subbase accessory
Honeywell S7800A1001	Replacement display module
Honeywell RM7800E1010	Primary burner control (discontinued)

Typical Industrial Applications

The Honeywell RM7823A1016 flame relay and amplifier module is widely used across combustion and burner safety systems where accurate flame signal processing is crucial:

Industrial boiler flame supervision
Furnace and process heater flame detection
Combustion panel safety interlocks
HVAC system flame amplification
Commercial burner safety systems
Remote confirmation outputs in control panels

Its relay output logic provides clear permissive and fault signaling used by burner controllers and safety interlock circuits.

Key Advantages

Dual‑Proof Flame Signal Conditioning
Enhances low‑level UV/IR flame sensor signals for reliable logic input to burner controllers.

Stable Relay Outputs
Provides dual Form‑C relay outputs for flame permissive and fault logic, improving safety interfaces.

Broad Compatibility
Works with Honeywell RM78xx Series burner controllers and legacy combustion systems.

Industrial‑Grade Construction
Rated for operation up to 60 °C and built for continuous performance in combustion panels.

Clear Maintenance Indicators
Relay outputs and built‑in conditioning simplify integration and troubleshooting.

Technical FAQs

1. What is the Honeywell RM7823A1016?
A dual‑proof flame relay and amplifier module that processes flame sensor signals and provides relay outputs for burner control systems.

2. What types of flame sensors does it support?
It supports UV and IR flame sensors commonly used in industrial combustion systems.

3. What is the typical supply voltage?
The module typically runs on 120 VAC ±10 %, 50/60 Hz.

4. What outputs does the module provide?
It provides dual relay (Form‑C) outputs for flame permissive and fault logic.

5. What are its physical dimensions?
160 × 100 × 50 mm.

6. How much does it weigh?
About 0.53 kg.

7. Where is this module installed?
Mounted inside combustion control panels or cabinets where flame signal conditioning is required.

8. Can it be used with other burner controllers?
Yes — it integrates with Honeywell RM78xx Series burner controls and similar logic systems.

9. What operating temperatures does it support?
From –20 °C to +60 °C.

10. Why choose the RM7823A1016?
Because it delivers robust flame signal amplification and reliable relay logic output for enhanced combustion system safety.
