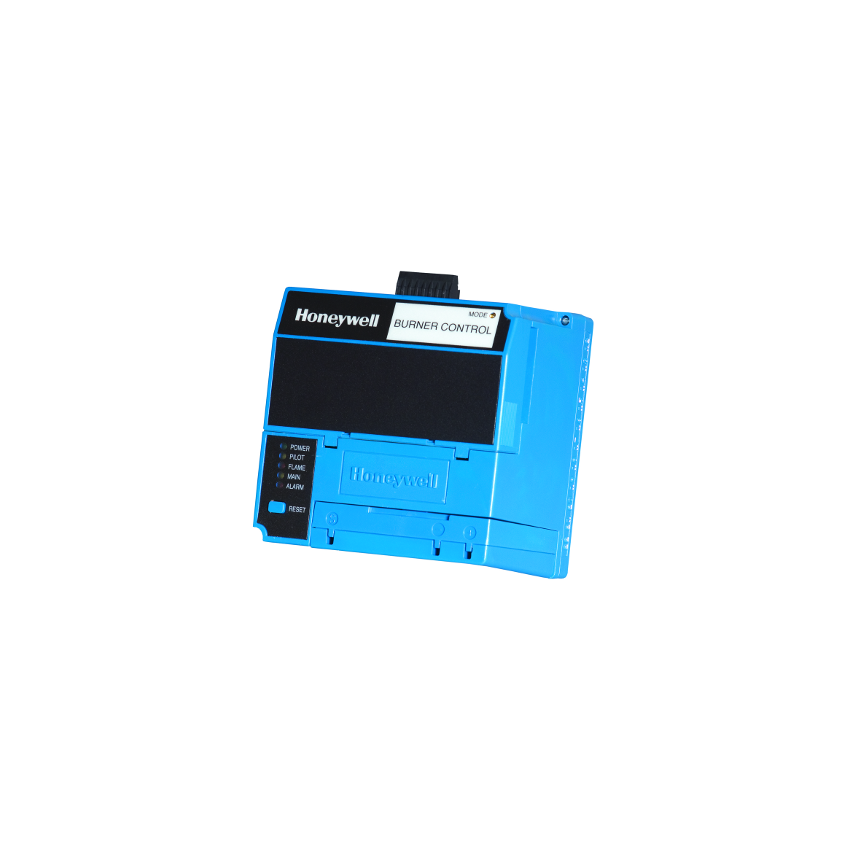

RM7824A1006

The Honeywell RM7824A1006 is a rugged dual‑channel flame proof relay and amplifier module engineered for industrial and commercial burner control panels. Designed to enhance safety and reliability in combustion systems, this module amplifies low‑level flame sensor signals — such as those from UV or IR flame detectors — and provides robust relay outputs for permissive and fault logic into safety interlock circuits.

Commonly integrated with Honeywell 7800 Series burner controllers and other combustion management systems, the RM7824A1006 supports stable flame signal conditioning and dual relay output performance in critical combustion control environments. Its industrial‑grade design ensures dependable operation within demanding temperature ranges and control cabinets.

Technical Specifications

Parameter	Specification
Model	RM7824A1006
Series	Honeywell RM78xx Flame Relay/Amplifier
Product Type	Dual‑Channel Flame Relay & Amplifier Module
Function	Amplifies flame sensor inputs and provides relay logic outputs
Compatible Controllers	Honeywell 7800 Series burner controls and safety interlock systems
Sensor Inputs Supported	UV / IR flame sensors
Output Relays	Dual Form‑C relay outputs (flame permissive and fault)
Supply Voltage	120 VAC ±10 %, 50/60 Hz
Power Consumption	~10 W
Relay Ratings	Typical industrial relay contact ratings
Installation	Control panel / combustion cabinet mounting
Operating Temp.	–20 °C to +60 °C
Storage Temp.	–40 °C to +85 °C
Protection Class	IP20 (installed enclosure)
Dimensions (L × W × H)	160 × 100 × 50 mm
Weight	0.53 kg
Certifications	UL Listed, CSA Certified

The RM7824A1006 delivers stable flame signal amplification and dual relay outputs that provide flame permissive and fault status indications to burner controllers and safety systems.

Recommended Related Models

Model	Description
Honeywell RM7823A1016	Dual‑proof flame amplifier and relay module
Honeywell RM7800G1018	Microprocessor burner controller with display
Honeywell RM7800L1012	Lockout logic burner controller
Honeywell R7847	Flame amplifier accessory
Honeywell Q7800A	Wiring subbase for burner controls

Popular Honeywell Combustion & Control Components

Model	Product Type
Honeywell R7848	Flame signal amplifier
Honeywell ST7800A	Programmable purge timer
Honeywell S7800A1001	Replacement display module
Honeywell RM7800M1011	Maintenance logic burner controller
Honeywell Q7800B	Subbase with extended terminal access

Typical Industrial Applications

The Honeywell RM7824A1006 is widely used in applications that require reliable flame signal conditioning and safety logic outputs:

Industrial boiler combustion panels
Process heater systems
Furnace and oven flame supervision
Commercial HVAC burner control
Safety interlock systems
Remote flame logic interfaces in combustion automation

By providing dual relay outputs, this module simplifies integration with flame permissive and fault circuits, enhancing safety and control robustness in combustion systems.

Key Advantages

Dual Relay Logic Outputs
Offers separate relay contacts for flame permissive and fault signals, improving safety interlock clarity.

Flame Signal Amplification
Amplifies low‑level signals from UV or IR flame sensors into stable logic inputs for controllers.

Reliable Industrial Design
Rated to operate from –20 °C to +60 °C, accommodating demanding combustion environments.

Broad Compatibility
Integrates with Honeywell 7800 Series burner controls and other safety interlock systems.

Simple Installation
Designed for mounting within combustion control cabinets and panels.

Technical FAQs

1. What type of module is the Honeywell RM7824A1006?
It is a dual‑channel flame relay and amplifier module that conditions flame sensor signals and provides relay outputs for permissive and fault logic.

2. What flame sensors does it support?
It supports UV and IR flame detectors typically used in combustion safety systems.

3. What power supply does it require?
The module operates on 120 VAC ±10 %, 50/60 Hz.

4. What outputs does it provide?
It provides dual Form‑C relay outputs for flame permissive and fault signaling.

5. What are its physical dimensions?
The module measures 160 × 100 × 50 mm.

6. How much does it weigh?
It weighs approximately 0.53 kg.

7. Where is this module installed?
Inside combustion control cabinets or burner safety panels.

8. What environments can it operate in?
It is designed for industrial temperature ranges between –20 °C and +60 °C.

9. Is it compatible with Honeywell burner controllers?
Yes — it integrates with Honeywell 7800 Series and similar combustion controller families.

10. Why choose the RM7824A1006?
Because it delivers stable flame signal amplification and dual safety relay outputs for enhanced combustion safety control.
