RM7840G1014

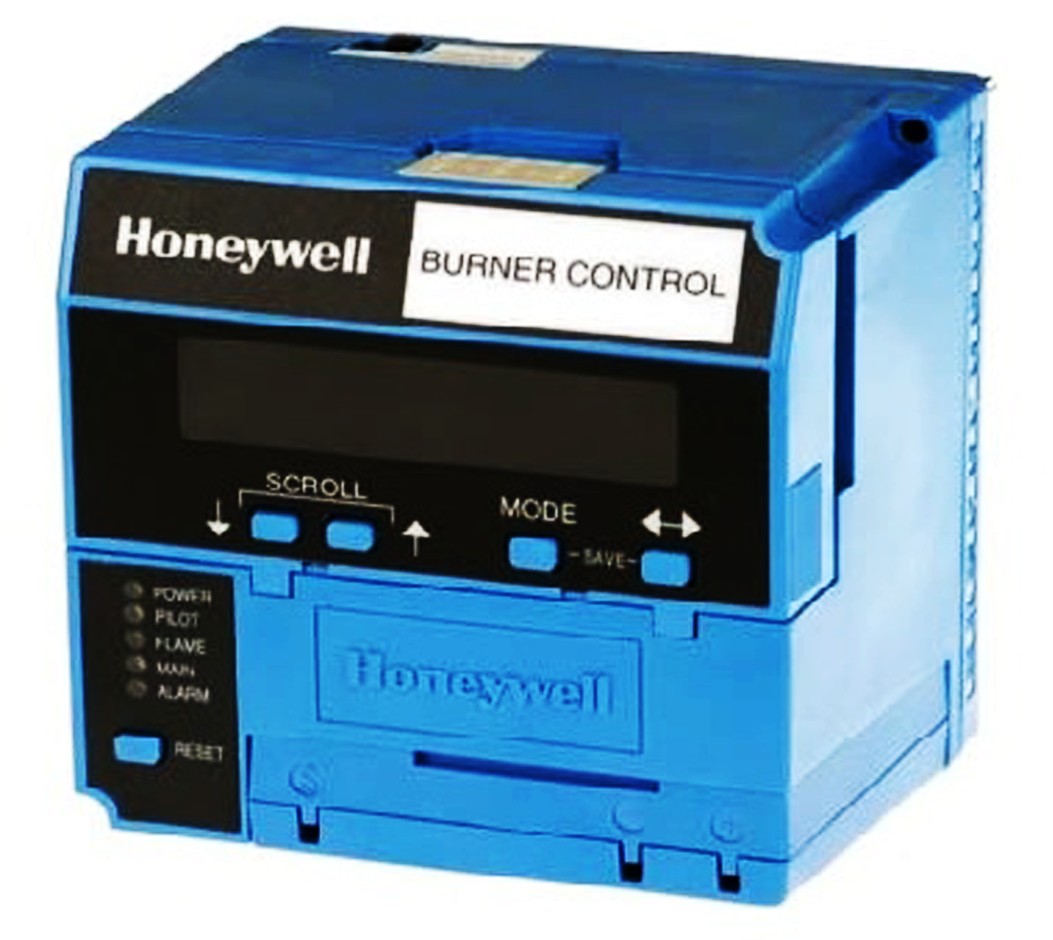

The Honeywell RM7840G1014 is an intelligent burner management control module from Honeywell’s 7800 Series, designed for reliable and safe operation in industrial and commercial combustion systems. This microprocessor‑based controller integrates advanced sequencing logic, continuous flame supervision, programmable safety interlocks, and an on‑board diagnostics display to deliver precise management of ignition, flame detection, purge timing, and fault response.

Engineered for environments where dependable flame control and rapid troubleshooting are critical, the RM7840G1014 simplifies maintenance and enhances combustion safety with real‑time status feedback and fault history. Its rugged industrial design ensures sustained performance in demanding applications.

Technical Specifications

Parameter	Specification
Model	RM7840G1014
Series	Honeywell 7800 Series Burner Controls
Product Type	Microprocessor‑Based Burner Management Control
Power Supply	120 VAC ±10 %, 50/60 Hz
Power Consumption	Approx. 10 W
Flame Supervision	Continuous flame monitoring and verification
Safety Interlocks	Automatic lockouts and fault interlocks
Display	Integrated diagnostic display and keypad
Indicators	Multi‑LED status & fault indicators
Timing	Programmable purge, ignition, flame verify, and run timing
Compatible Flame Detectors	Honeywell amplifiers (e.g., R7847, R7848)
Memory	Non‑volatile fault & event history
Operating Temperature	–40 °C to +60 °C
Mounting	Standard 7800 Series subbase
Protection Class	IP20 (installed enclosure)
Dimensions (L × W × H)	127 × 127 × 133 mm
Weight	0.70 kg
Certifications	UL Listed, CSA Certified, CE Compliant

The RM7840G1014 combines comprehensive safety logic with intuitive on‑board diagnostics, making it a strong choice for systems requiring both performance and service transparency.

Recommended Related Models

Model	Description
Honeywell RM7800G1018	Advanced burner control with interlocks and display
Honeywell RM7800L1012	Lockout logic burner control
Honeywell RM7800M1011	Maintenance logic burner control
Honeywell Q7800A	Wiring subbase accessory
Honeywell R7847	Flame amplifier interface

Popular Honeywell Combustion Control Products

Model	Product Type
Honeywell R7848	Flame signal amplifier
Honeywell ST7800A	Programmable purge timer card
Honeywell S7800A1001	Replacement display module
Honeywell RM7800E1010	Primary burner control (discontinued)
Honeywell Q7800B	Subbase with extended access

Typical Industrial Applications

The Honeywell RM7840G1014 is well suited for a variety of combustion control systems where safety, sequence reliability, and diagnostic clarity are priorities:

Industrial boiler and burner safety control
Furnace combustion automation
Process heater burn control
Commercial HVAC burner systems
Power plant auxiliary burner safety logic
Industrial oven and dryer flame supervision

Its combination of programmable timing and fault diagnostics provides a solid foundation for both performance — and serviceability — in demanding automation environments.

Key Advantages

Advanced Sequencing Logic
Supports programmable purge, ignition, flame verification, and run timing for flexible combustion control.

Integrated Diagnostics & Display
Built‑in display and keypad present real‑time status updates, fault history, and operational feedback.

Comprehensive Safety Lockouts
Automatic lockouts on flame loss or sequence errors improve system safety and compliance.

Industrial‑Grade Design
Rated to operate reliably in harsh environments from –40 °C to +60 °C.

Modular Installation
Mounts on Honeywell standard 7800 Series bases for straightforward assembly or replacement.

Technical FAQs

1. What is the Honeywell RM7840G1014 used for?
It is a microprocessor‑based burner management control module with advanced sequencing, integrated display, and safety lockouts for combustion systems.

2. What power does it require?
The module operates on 120 VAC, 50/60 Hz.

3. Does it have an integrated display?
Yes — it includes a built‑in diagnostic display and keypad for direct feedback.

4. What are its physical dimensions?
127 × 127 × 133 mm.

5. How much does it weigh?
0.70 kg.

6. What temperature range can it operate in?
From –40 °C to +60 °C.

7. What flame detectors does it support?
Compatible with Honeywell flame amplifiers such as R7847 and R7848.

8. Where is it installed?
It is mounted on a Honeywell 7800 Series subbase inside combustion control cabinets.

9. What safety features does it provide?
Automatic lockouts on flame failure and sequence faults with non‑volatile fault memory help ensure safe operation.

10. Why choose the RM7840G1014?
Because it delivers comprehensive safety sequencing, integrated diagnostics, and dependable automation in a rugged, industrial package.
