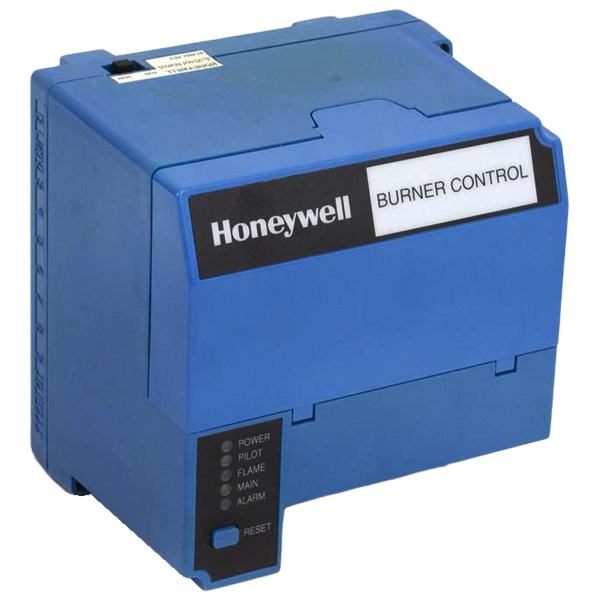

RM7840L1018

The Honeywell RM7840L1018 is a microprocessor-based burner management control module designed for reliable combustion control in industrial and commercial heating systems. As part of the proven Honeywell 7800 Series, this module manages the complete burner sequence including purge timing, ignition control, flame monitoring, and safety lockout protection.

Built for demanding environments, the RM7840L1018 delivers automatic burner sequencing, continuous flame supervision, and advanced diagnostic capabilities that help operators maintain safe and efficient combustion processes. With plug-in compatibility for Honeywell flame amplifiers and optional display modules, the controller provides flexible integration and improved system visibility for maintenance and troubleshooting.

Its microprocessor architecture also supports non-volatile memory, ensuring that operational history and lockout data are retained even after power loss—an essential feature for industrial burner diagnostics and safety compliance.

Technical Specifications

Parameter	Specification
Model	RM7840L1018
Brand	Honeywell
Series	7800 Series Burner Control
Product Type	Microprocessor Burner Management Control Module
Supply Voltage	120 VAC (±10–15%), 50/60 Hz
Control Function	Automatic burner sequencing, flame supervision, lockout safety
Flame Amplifier Compatibility	Plug-in Honeywell flame amplifiers (R7847, R7848, etc.)
Diagnostics	LED status indicators with fault memory
Memory	Non-volatile lockout and history storage
Pilot Flame Establishing Period	4 s or 10 s
Main Flame Establishing Period	10 s or 15 s
Early Spark Termination	5 s
Interlock Type	Lockout safety interlocks
Operating Temperature	–40 °C to +60 °C
Installation	Plug-in module for Honeywell 7800 subbase
Dimensions (L×W×H)	127 × 127 × 133 mm
Weight	0.80 kg
Certifications	UL, CSA, FM approvals

The RM7840L1018 integrates programmable burner sequencing and comprehensive diagnostic features within a compact module, making it suitable for modern combustion control systems.

Recommended Related Models

Model	Description
Honeywell RM7840G1014	Burner control with integrated display diagnostics
Honeywell RM7824A1006	Flame relay and amplifier module
Honeywell RM7823A1016	Dual-proof flame amplifier module
Honeywell R7847	Flame amplifier accessory
Honeywell Q7800A	Universal wiring subbase

Popular Honeywell Combustion Control Models

Model	Product Type
Honeywell RM7800G1018	Advanced burner controller
Honeywell RM7800M1011	Maintenance burner control
Honeywell S7800A1001	Keyboard display module
Honeywell ST7800A	Purge timer card
Honeywell R7848	Flame signal amplifier

Industrial Applications

The Honeywell RM7840L1018 is widely implemented in combustion automation environments where precise sequencing and safety supervision are required:

Industrial boiler burner management
Process heater combustion control
Furnace ignition systems
Commercial HVAC burner control panels
Industrial ovens and drying equipment
Oil, gas, and multi-fuel burner systems

Its microprocessor-based architecture allows operators to maintain consistent combustion control while improving operational safety and maintenance efficiency.

Key Advantages

Advanced Burner Sequencing
Automatically manages ignition, flame verification, and burner operation cycles for improved system stability.

Integrated Safety Logic
Provides flame monitoring and lockout protection to ensure safe burner operation.

Diagnostic LED Indicators
Five status LEDs provide clear sequence information and simplify troubleshooting.

Non-Volatile Memory
Retains fault history and lockout status even after power interruption.

Flexible System Integration
Compatible with Honeywell 7800 Series accessories including display modules, purge timers, and flame amplifiers.

Technical FAQs

1. What is the Honeywell RM7840L1018 used for?
It is a microprocessor-based burner management controller used to manage ignition sequences and flame safety in combustion systems.

2. What voltage does the module require?
The module operates on 120 VAC at 50/60 Hz.

3. What series does this controller belong to?
It is part of the Honeywell 7800 Series burner control platform.

4. What are the physical dimensions of the module?
127 × 127 × 133 mm.

5. What is the weight of the RM7840L1018?
Approximately 0.80 kg.

6. Does the module include diagnostics?
Yes, it includes LED status indicators and diagnostic memory for troubleshooting.

7. What flame amplifiers are compatible?
Typical compatible models include R7847 and R7848 flame amplifier modules.

8. What temperature range can it operate in?
The controller operates between –40 °C and +60 °C.

9. Does it store operational data?
Yes. It uses non-volatile memory to retain lockout and history data after power loss.

10. Why choose the RM7840L1018?
Because it provides advanced burner sequencing, safety supervision, and reliable industrial combustion control within a modular and service-friendly design.
