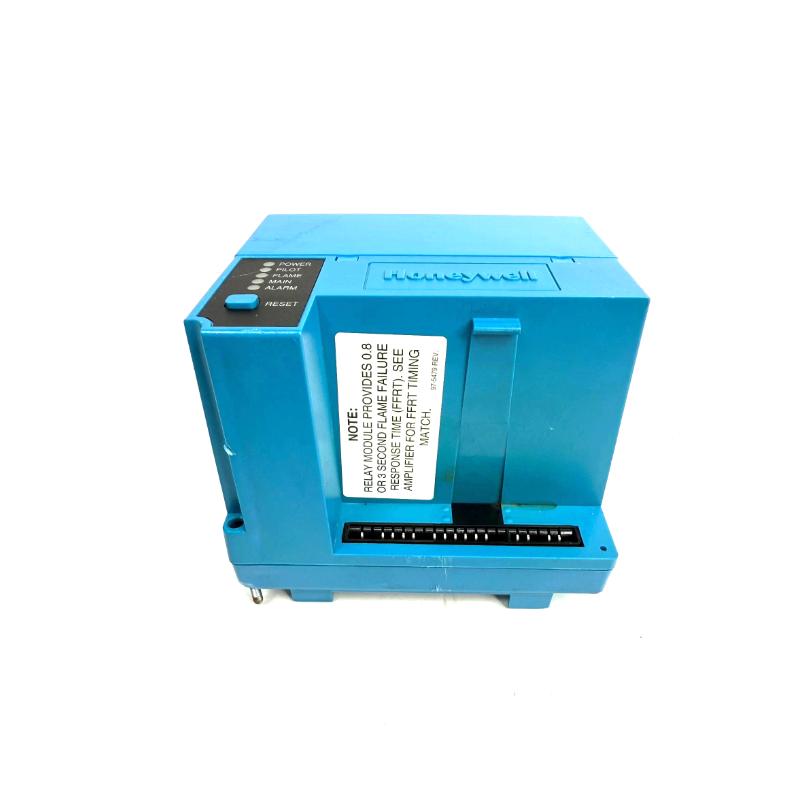

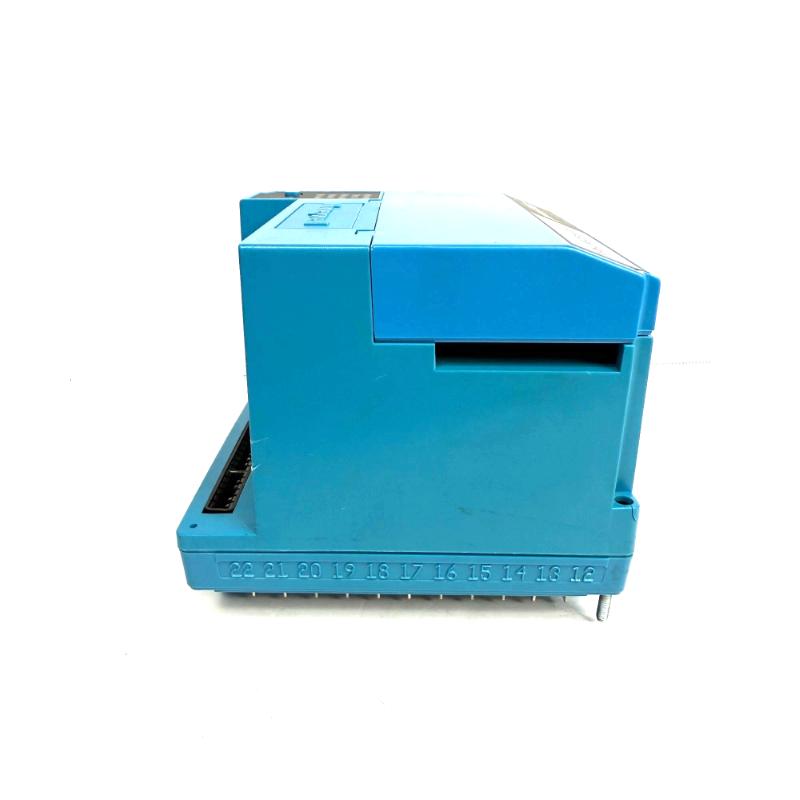

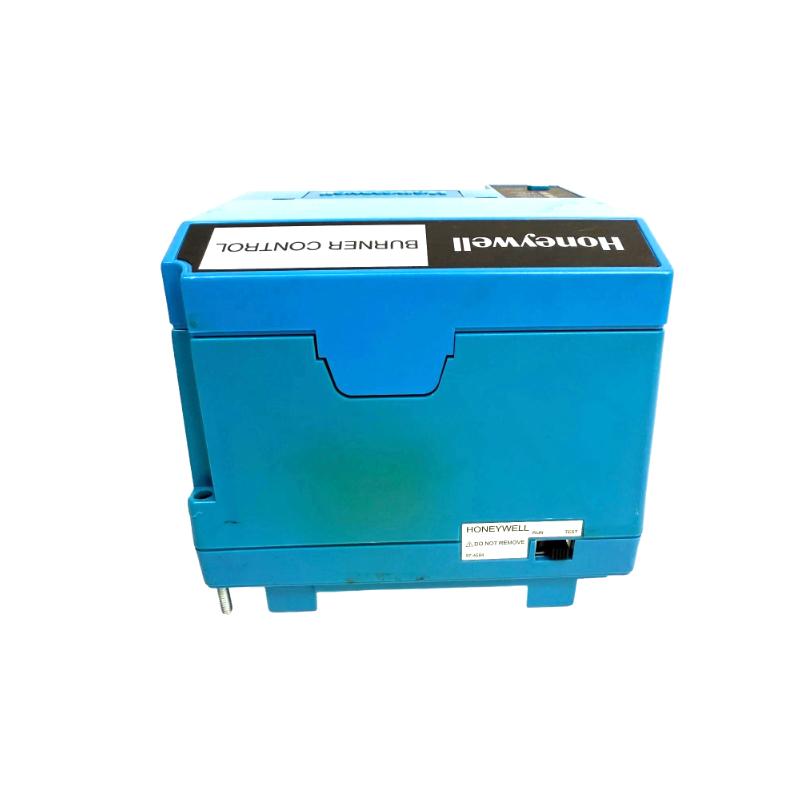

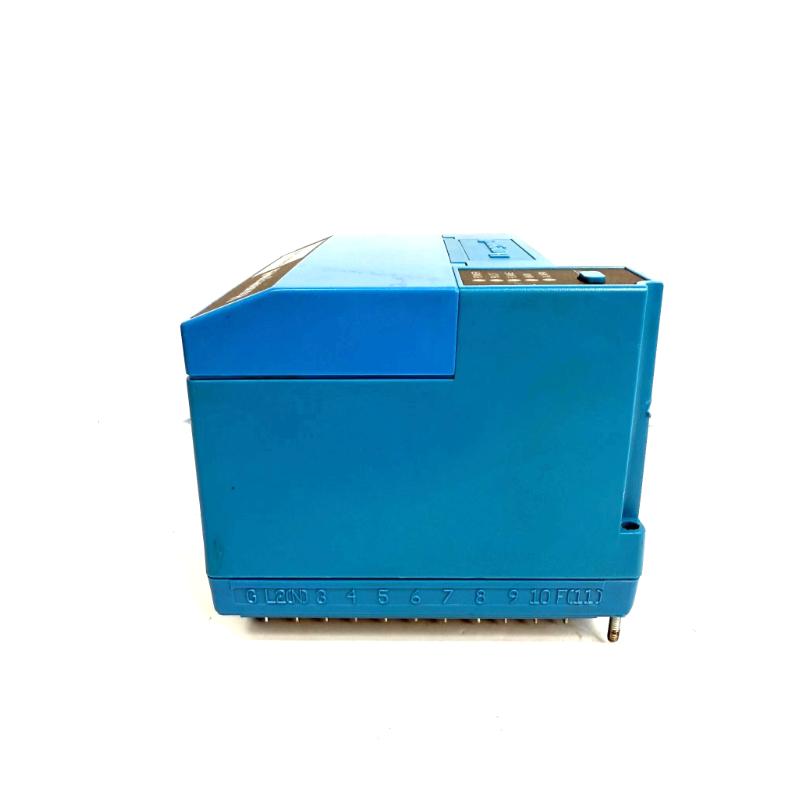

The Honeywell RM7840L1075 is a microprocessor-based burner management control module from Honeywell’s trusted 7800 Series, engineered to deliver precise burner sequencing, flame monitoring, and safety interlocks for industrial and commercial heating systems. It provides automatic ignition control, purge timing, flame verification, and lockout protection, ensuring safe and efficient operation of gas, oil, and combination-fuel burners.
With plug-in compatibility for Honeywell flame amplifiers and optional display modules, the RM7840L1075 enables enhanced system diagnostics, maintenance efficiency, and operational safety. Its non-volatile memory preserves operational and fault history even after power loss, which is critical for industrial burner troubleshooting and compliance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | RM7840L1075 |
| Brand | Honeywell |
| Series | 7800 Series Burner Control |
| Product Type | Microprocessor Burner Management Control Module |
| Supply Voltage | 120 VAC ±10–15%, 50/60 Hz |
| Application | Single-burner gas, oil, or combination fuel systems |
| Flame Detection | Plug-in flame amplifiers (UV, IR, flame rod) |
| Pilot Flame Establishing Period | 4 s or 10 s |
| Main Flame Establishing Period | 10 s or intermittent |
| Early Spark Termination | 5 s |
| Post-Purge Time | 15 s |
| Pilot Type | Interrupted pilot |
| Diagnostics | Five LED status indicators with fault memory |
| Run/Test Switch | Five-position run/test switch |
| Memory | Non-volatile operational and fault history |
| Mounting | Honeywell Q7800 Series wiring subbase |
| Operating Temperature | –40 °C to +60 °C |
| Dimensions (L × W × H) | 127 × 127 × 133 mm |
| Weight | 0.80 kg |
| Certifications | UL, CSA, FM approvals |
The RM7840L1075 combines reliable burner sequencing, safety lockouts, and advanced diagnostics into a compact module suitable for demanding industrial combustion environments.
