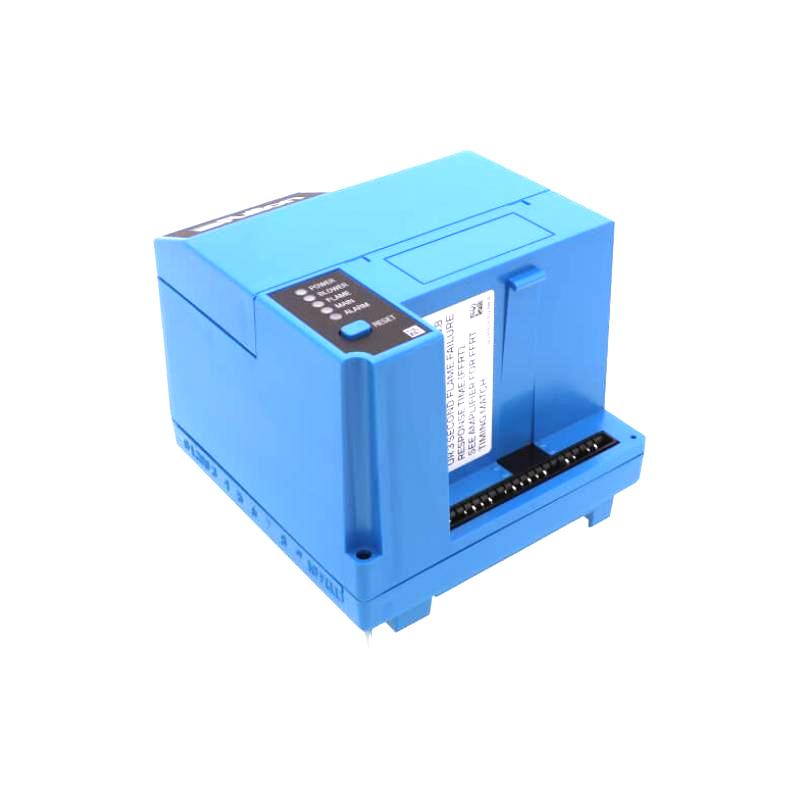

Honeywell RM7865C1007 Flame Relay and Amplifier Interface Module for Industrial Combustion Control Systems

Typical Industrial Applications

The Honeywell RM7865C1007 is designed for high‑reliability flame conditioning and logic interfacing in combustion automation environments:

• Industrial boiler flame supervision

• Furnace and kiln burner safety control

• Process heater combustion panels

• Commercial and industrial HVAC burner systems

• Power plant auxiliary burner safety logic

• Remote interface for flame permissive and fault circuits

Its ability to cleanly amplify sensor signals and provide stable multi‑relay outputs makes it suitable where safety and precise control logic integration are essential.

Key Advantages

Stable Flame Signal Conditioning
Amplifies low‑level UV, IR, or flame rod sensor inputs for reliable logic output performance.

Multi‑Relay Logic Outputs
Provides separate relay outputs for permissive, fault, and logic control roles in safety systems.

Broad Sensor Compatibility
Works with common flame detection methods for flexible integration in combustion control panels.

Industrial Reliability
Designed for continuous operation in demanding environments from –20 °C to +60 °C.

Compact, Panel‑Mountable Design
With dimensions of 160 × 100 × 50 mm, it fits easily into burner control cabinets.

Technical FAQs

1. What is the Honeywell RM7865C1007 used for?
It is a flame relay and amplifier interface module that processes flame sensor signals and provides stable relay outputs for combustion safety control.

2. What flame sensors does it support?
It supports UV, IR, and flame rod detectors commonly used in industrial flame supervision.

3. What voltage does it require?
The module operates on 120 VAC ±10 %, 50/60 Hz.

4. What outputs does it provide?
It provides multi‑contact relay outputs for flame permissive and fault logic.

5. What are its dimensions?
160 × 100 × 50 mm.

6. What is its approximate weight?
Approximately 0.55 kg.

7. Where is it installed?
Inside combustion control cabinets or burner safety panels where flame signal conditioning and logic output interfacing are needed.

8. What temperature range can it operate in?
From –20 °C to +60 °C operating conditions.

9. Is it compatible with Honeywell burner controllers?
Yes — it integrates with Honeywell 7800 Series and related combustion control systems.

10. Why choose the RM7865C1007?
Because it provides reliable flame signal amplification with stable relay logic outputs, improving safety and integration in combustion control applications.
