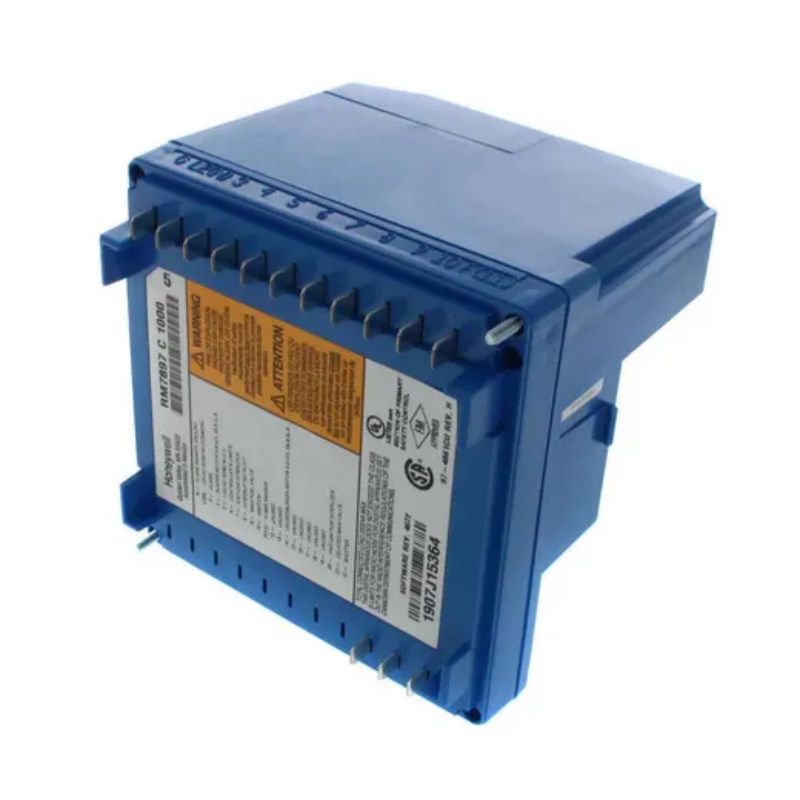

Honeywell RM7897C1000 On‑Off Primary Burner Control Module with Programmable Post‑Purge and Shutter Drive
Honeywell RM7897C1000 On‑Off Primary Burner Control Module with Programmable Post‑Purge and Shutter Drive
0.0
Points
Brand:Honeywell DCS Item No.:Honeywell RM7897C1000 Product Origin:USA Product Dimensions:184 × 178 × 140 mm Product Weight:1.20 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Honeywell RM7897C1000 is a microprocessor‑based on‑off primary burner control designed for industrial and commercial single‑burner combustion systems. Part of Honeywell’s 7800 Series, it provides automatic sequencing, flame supervision, and safety shutdown, along with a programmable post‑purge and delayed main valve feature. This module delivers reliable operation across gas, oil, and combination fuel systems while offering diagnostics, selectable interlocks, and modular integration for OEMs and system integrators who need robust, code‑compliant burner control.
Honeywell RM7895A1014 Primary Control with Pre‑Purge
Honeywell RM7895C1012 Primary Control with Diagnostics
Honeywell RM7890A1015 Basic Flame Safety Module
Honeywell RM7890A1031 Advanced Sequenced Control
Honeywell RM7850A1001 Standard Primary Control
Applications
The Honeywell RM7897C1000 is widely used in burner systems where comprehensive combustion safety and control precision are required:
Industrial steam and hot water boilers
Combustion furnaces and process heaters
HVAC burner management panels
Thermal oxidizers and ovens
OEM burner control systems
Chemical and petrochemical combustion installations
Its programmable post‑purge capability ensures optimal heat exchanger cooling and enhanced safety during shutdown sequences.
Advantages
Programmable Safety Sequencing
With programmable post‑purge via the S7800A1142 display module, this control enhances safety and performance across diverse combustion profiles.
Integrated Diagnostics & Memory
Non‑volatile memory retains sequence history and lockout data after power interruption, helping technicians troubleshoot more efficiently.
Delayed Main Valve Control
Ensures stable ignition and smoother transitions from pilot to main flame, improving reliability and reducing wear.
Modular Flexibility
Compatible with 7800 Series interchangeable flame amplifiers and optional remote interfaces, giving engineers configuration versatility.
Clear LED Feedback
Five LED indicators provide intuitive sequence visualization and fault annunciation for quick diagnostics.
Industrial‑Grade Durability
Designed to operate reliably in challenging industrial environments with wide temperature tolerance and robust construction.
Technical FAQs
What is the primary purpose of the RM7897C1000?
It manages full automatic burner sequencing with flame supervision and safety shutdown for industrial combustion systems.
What voltage and frequency does it need?
The module runs on 120 VAC at 50/60 Hz.
Can post‑purge timing be configured?
Yes — post‑purge is programmable using the S7800A1142 display module (not included).
Does it support both gas and oil burners?
Yes, it is suitable for gas, oil, or combination‑fuel single‑burner applications.
What flame establishing period options are available?
Pilot flame can be set at either 4 s or 10 s.
Are diagnostics available on the control?
Yes — non‑volatile memory records status and fault history, and LED indicators facilitate troubleshooting.
What happens in a loss of flame or airflow?
Selectable interlocks allow either recycle or lockout behavior on safety trips.
Is this control compatible with remote annunciators?
Optional remote or display modules can provide extended system feedback.
Can this module improve maintenance efficiency?
Yes — data memory and fault codes simplify error analysis and corrective actions.
Is the RM7897C1000 suitable for OEM integration?
Absolutely — modular design, programmable features, and broad compatibility make it ideal for custom combustion control solutions.
