Brand:ABB PLC Item No.:DO801 Product Origin:Sweden (SE) Product Dimensions:86.1 x 110 x 58.5 mm Product Weight:0.24 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

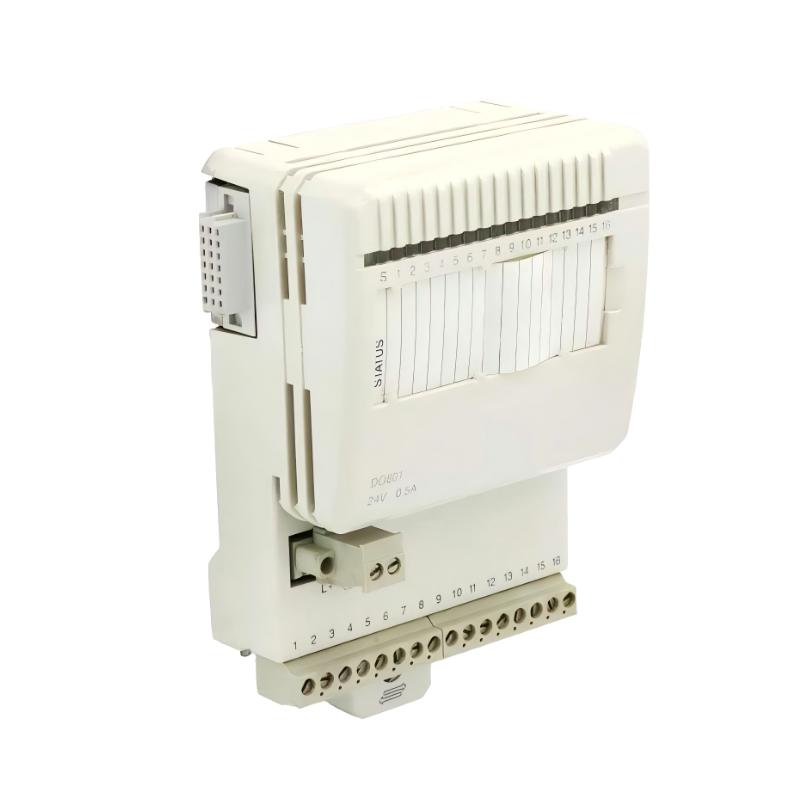

The ABB DO801 3BSE020510R1 Digital Output Module delivers reliable, fast, and accurate digital output control for industrial automation systems.
Its robust electrical isolation, high-speed switching, and industrial-grade durability ensure dependable operation even in harsh environments.
Compact and modular, the DO801 integrates seamlessly into high-density I/O racks, supporting distributed control, machinery automation, and auxiliary output circuits.
Technical Specifications
Parameter
Description
Module Type
Digital Output Module
Model
DO801 3BSE020510R1
Output Channels
16 digital outputs
Output Voltage
24 VDC
Isolation
Group-to-bus electrical isolation
System Compatibility
ABB AC800M, Advant Controller systems
Diagnostics
Output status & fault reporting
Installation
ABB I/O baseplate compatible
Dimensions
86.1 × 110 × 58.5 mm
Weight
0.24 kg
Recommended Related Models
Model
Description
DO810
Standard digital output module
DO814
High-density digital output module
AO810
Analog output module
AI810
Analog input module
DI810
Digital input module
DI820
High-speed digital input module
TU810
I/O base unit
CI854A
Communication interface module
PM861
AC800M CPU module
DI825
Digital input terminal module
Popular Related Models
Model
Description
DO801
16-channel digital output module for industrial control
DO810
Standard digital output module
DO814
High-density digital output module
AO810
Analog output module
DI820
High-speed digital input module
DI810
Standard digital input module
PM864
High-performance AC800M CPU
CI854A
PROFIBUS communication module
TU830
Base termination unit
DI828
High-speed digital input module
Applications
The ABB DO801 3BSE020510R1 is designed for precise digital output control in industrial automation systems.
Common applications include:
Control of actuators and relays in distributed control systems
Remote I/O stations in manufacturing and power plants
Signal driving for machinery automation and process control
Safety and auxiliary output circuits
Compact control cabinets requiring high-density modular output solutions
Advantages
Reliable 16-channel digital outputs for multiple devices
Fast switching response suitable for real-time control
Electrical isolation protects field devices and controllers
LED indicators for immediate channel status verification
Compact modular design for flexible rack installation
Seamless integration with ABB AC800M and Advant Controller systems
Industrial-grade construction, ensuring durability and low maintenance
High noise immunity, providing stable operation in harsh environments
