Introduction

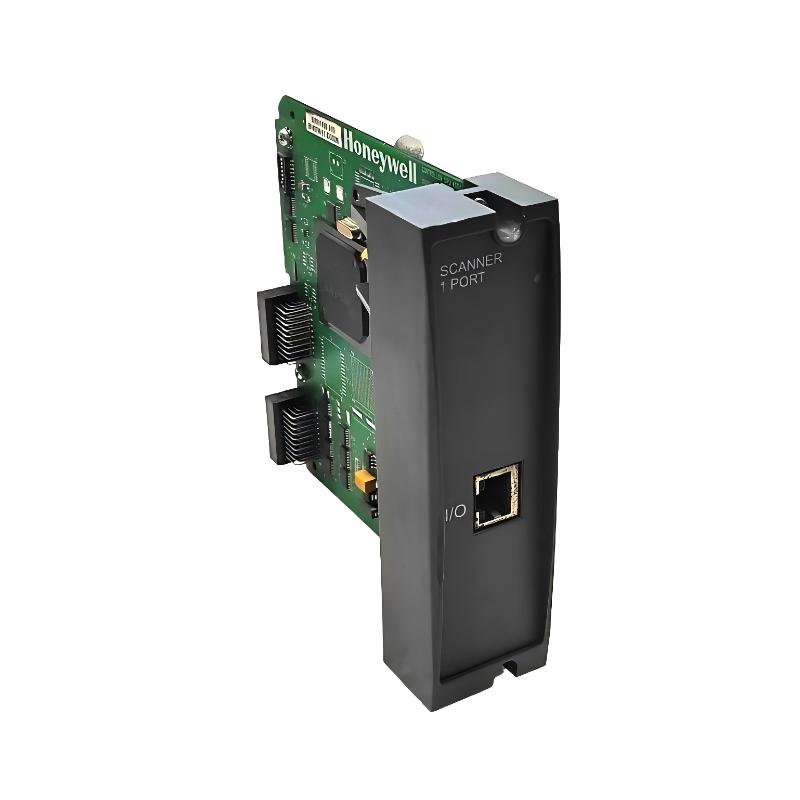

The Honeywell 900C53-0142-00 HC900 I/O Scanner provides reliable communication and polling for HC900 control systems. It centralizes data collection from multiple I/O modules, ensuring efficient and real-time monitoring of industrial processes.Its compact, robust design makes it ideal for panel installation, while built-in diagnostics enhance troubleshooting and system maintenance. The scanner supports system expansion, enabling operators to scale their automation solutions efficiently.

Technical Specifications

Feature	Specification
Module Type	I/O Scanner Module
Model	900C53-0142-00
Operating Temperature	-20°C to 60°C
Power Supply	24 VDC ±10%
Connectivity	Serial and fieldbus interfaces
MTBF	60,000 hours
Dimensions	137 × 38.1 × 137.16 mm
Weight	0.36 kg

Recommended Related Models

900C50-0101-00 — HC900 C50 Analog Input Module
900C50-0112-00 — HC900 C50 Digital Output Module
900C50-0120-00 — HC900 C50 Power Supply Module
900C50-0130-00 — HC900 C50 Communication Module
900C50-0140-00 — HC900 C50 Analog Output Module

Popular Related Models

900C50-0150-00 — HC900 C50 Expansion I/O Module
900C50-0160-00 — HC900 C50 Redundant CPU Module
900C50-0170-00 — HC900 C50 High-Speed Digital Module
900C50-0180-00 — HC900 C50 Fieldbus Interface Module
900C50-0190-00 — HC900 C50 Remote I/O Extension Module

Applications

Scanning and polling of HC900 system I/O modules
Centralized communication with digital and analog I/O devices
Integration in factory automation and process control systems
Real-time data acquisition and monitoring for industrial processes
Support for remote diagnostics and preventive maintenance

Advantages

Efficient I/O Management: Optimizes communication between CPU and multiple I/O modules
High Reliability: Designed for continuous operation in demanding industrial environments
Seamless Integration: Fully compatible with HC900 controllers and peripheral modules
Compact Design: Space-saving form factor suitable for panel mounting
Diagnostic Feedback: Built-in status indicators for quick identification of communication or module errors
Expandable Architecture: Supports system expansion with multiple input/output modules

Technical FAQs

What is the main function of the 900C53-0142-00?
It scans and polls I/O modules to facilitate data transfer between field devices and the HC900 CPU.
Is it compatible with all HC900 I/O modules?
Yes, it works with digital and analog input/output modules within the HC900 system.
What type of communication does it support?
Supports standard HC900 serial and fieldbus communication protocols.
Can it operate under high-temperature conditions?
Yes, its operating range is -20°C to 60°C.
Does it provide diagnostic feedback?
Yes, LEDs indicate scanner status, errors, and communication activity.
Can it handle multiple I/O racks simultaneously?
Yes, it supports full HC900 system configurations with multiple racks.
Is it hot-swappable?
Hot-swapping is not recommended; proper shutdown before replacement is advised.
Does it require external power?
Yes, it operates on the standard 24 VDC input specified for HC900 modules.
Can it support remote monitoring?
Yes, module status can be monitored through the HC900 control system interface.
Is firmware upgradeable?
Firmware updates are supported to maintain compatibility with system enhancements.
