Introduction

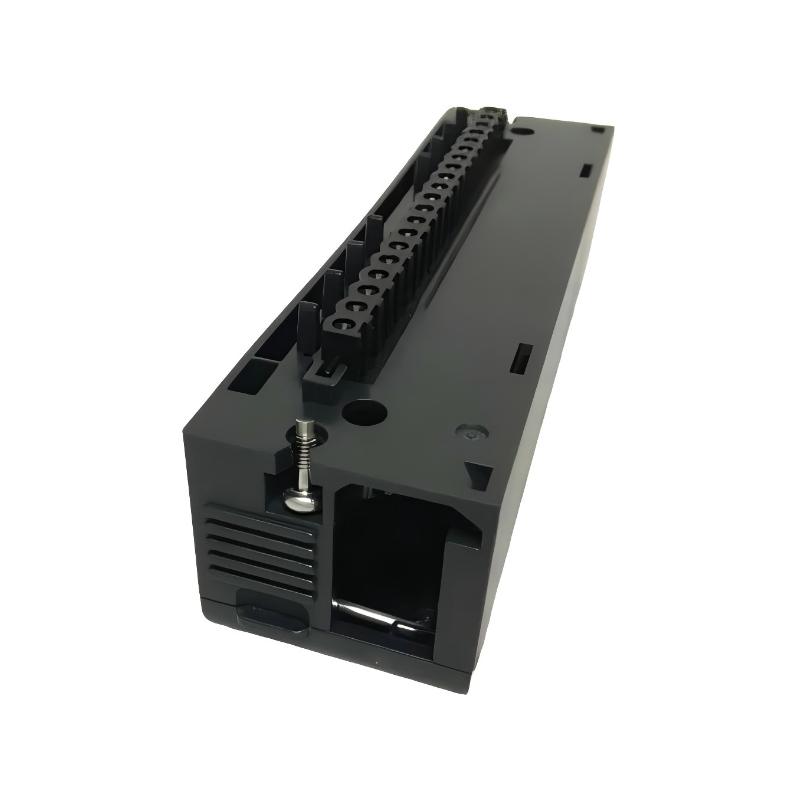

The Honeywell 900TEK-0001 HC900 Terminal Blocks provide a reliable, organized solution for connecting HC900 system modules to field devices. Designed for industrial automation panels, they simplify installation, maintenance, and system expansion.Its compact and robust construction ensures secure connections, supports both analog and digital wiring, and improves overall system reliability. Ideal for complex process control and factory automation applications.

Technical Specifications

Feature	Specification
Module Type	Terminal Block
Model	900TEK-0001
Operating Temperature	-20°C to 60°C
Connectivity	Screw-type terminals for analog and digital I/O
Dimensions	111 × 94 × 66 mm
Weight	0.129 kg

Recommended Related Models

900C50-0101-00 — HC900 C50 Analog Input Module
900C50-0112-00 — HC900 C50 Digital Output Module
900C50-0120-00 — HC900 C50 Power Supply Module
900C50-0130-00 — HC900 C50 Communication Module
900C50-0140-00 — HC900 C50 Analog Output Module

Popular Related Models

900C50-0150-00 — HC900 C50 Expansion I/O Module
900C50-0160-00 — HC900 C50 Redundant CPU Module
900C50-0170-00 — HC900 C50 High-Speed Digital Module
900C50-0180-00 — HC900 C50 Fieldbus Interface Module
900C50-0190-00 — HC900 C50 Remote I/O Extension Module

Applications

Providing secure and organized connections for HC900 system modules
Facilitating wiring of analog and digital I/O devices to the HC900 control system
Simplifying installation and maintenance in industrial automation panels
Supporting reliable signal transmission between field devices and CPU modules
Enabling quick replacement and expansion of I/O connections in complex control setups

Advantages

Secure Connections: Ensures reliable wiring for analog and digital signals
Simplified Installation: Easy-to-mount design reduces setup time
Durable Construction: Resistant to vibration, temperature variations, and industrial environments
Space-Efficient: Compact design fits neatly within control panels
Maintenance Friendly: Facilitates quick module replacement and system expansion
Enhanced Safety: Properly isolates and organizes multiple wiring connections

Technical FAQs

What is the purpose of the 900TEK-0001?
It provides secure and organized terminal connections for HC900 modules and field devices.
Is it compatible with all HC900 I/O modules?
Yes, it works with analog, digital, and hybrid input/output modules within the HC900 system.
What is the operating temperature range?
Rated for -20°C to 60°C, suitable for industrial panel installations.
Can it handle high-current connections?
Yes, it supports standard current ratings specified for HC900 modules.
Does it support both analog and digital connections?
Yes, it can connect analog and digital I/O signals to the system.
Is it suitable for use in harsh industrial environments?
Yes, it is designed to withstand vibration, temperature changes, and electrical interference.
Does it require any additional accessories for installation?
No, it is a standalone terminal block designed to fit HC900 panels and modules.
Can it be used for field wiring expansion?
Yes, it allows safe and organized expansion of module wiring.
Is it maintenance-friendly?
Yes, it simplifies inspection, replacement, and rewiring when needed.
Is it compatible with remote I/O extensions?
Yes, it can be used with HC900 remote I/O modules to ensure organized connections.
