Introduction

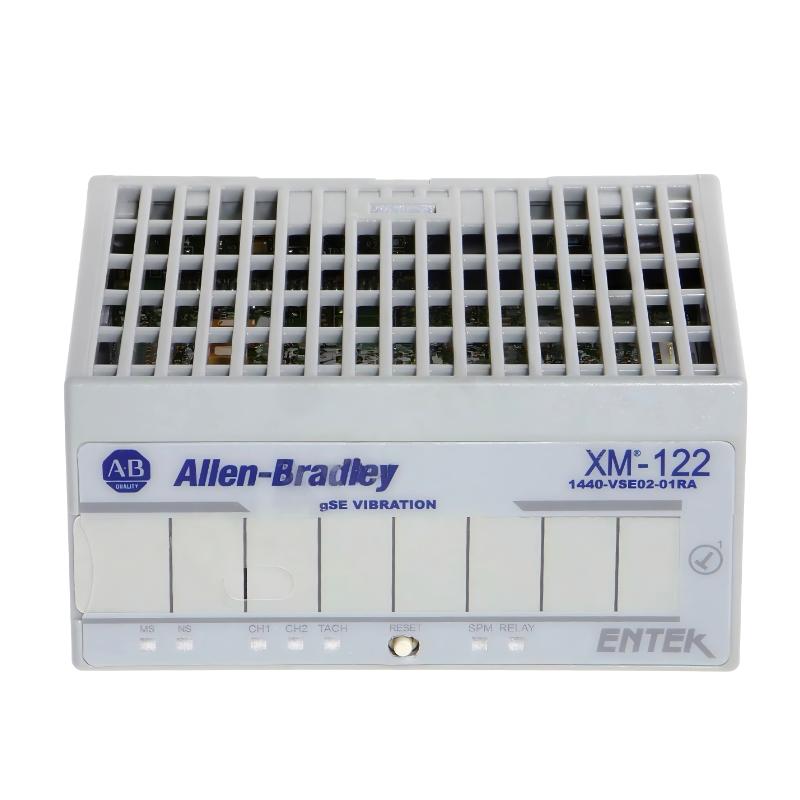

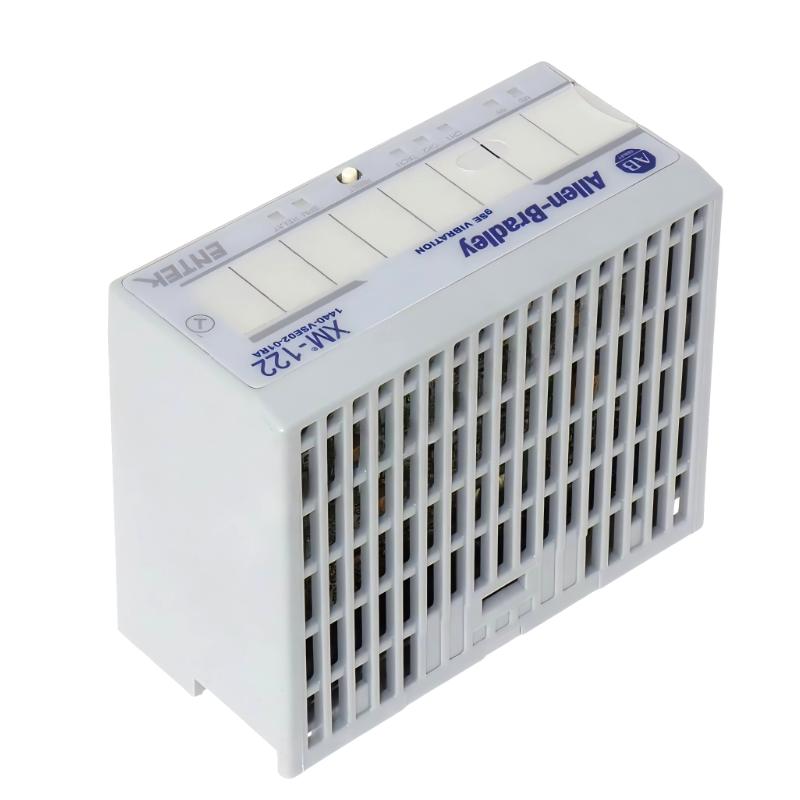

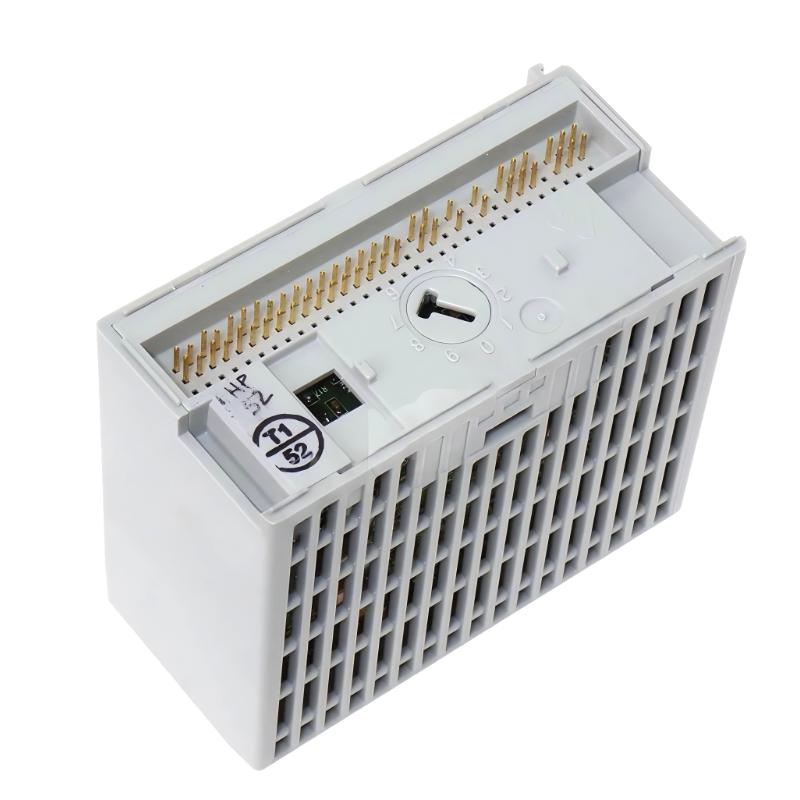

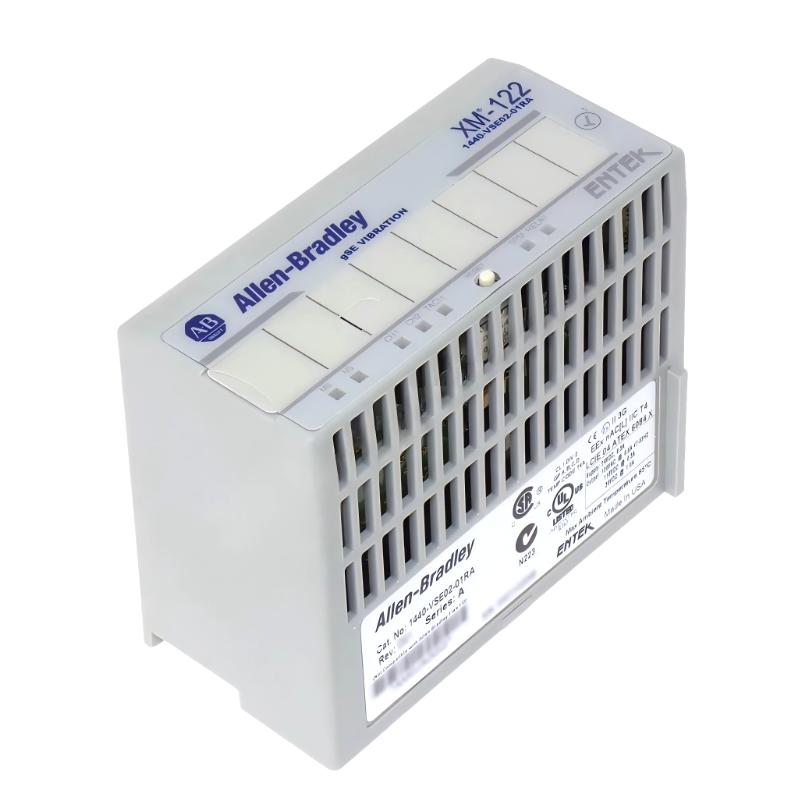

The Allen-Bradley 1440-VSE02-01RA Vibration Module is engineered for precise and reliable machinery condition monitoring. It integrates seamlessly with 1440-series control systems, enabling predictive maintenance and real-time fault detection to protect industrial assets.

Compact, durable, and easy to install, this module allows operators to maintain optimal equipment performance, reduce unplanned downtime, and improve overall system reliability.

Technical Specifications

Feature	Specification
Module Type	Vibration Monitoring Module
Model	1440-VSE02-01RA
Operating Temperature	-20°C to 60°C
Power Supply	24 VDC ±10%
Connectivity	Screw terminal input/output to 1440-series system
MTBF	60,000 hours
Dimensions	97 × 94 × 94 mm
Weight	0.34 kg

Recommended Related Models

1440-IB16 — 16-channel digital input module
1440-OB16 — 16-channel digital output module
1440-PS24 — 24 VDC power supply module for 1440-series I/O
1440-EXIO — Expansion I/O module for complex control networks
1440-TB-C — Terminal base for secure field connections

Popular Related Models

1440-IB32 — 32-channel input module for extended monitoring
1440-OB32 — 32-channel output module
1440-IB16H — High-speed digital input module
1440-OB16R — Relay output module for actuators
1440-VSE01-01RA — Vibration module for single-axis monitoring

Applications

Monitoring vibration levels in motors, pumps, and rotating machinery
Integration with Allen-Bradley 1440-series control systems for predictive maintenance
Detection of imbalance, misalignment, or bearing wear in industrial equipment
Real-time monitoring for early warning and machine protection
Supporting factory automation systems with condition-based maintenance strategies

Advantages

High-Sensitivity Detection: Accurately captures vibration signals for early fault detection
Robust Industrial Design: Withstands harsh factory conditions including vibration, dust, and temperature changes
Seamless Integration: Compatible with Allen-Bradley 1440-series I/O and control modules
Compact Form Factor: Space-efficient design for control panel installation
Diagnostic Feedback: Built-in LEDs and system communication provide real-time status and alerts
Maintenance Friendly: Facilitates predictive maintenance and reduces unplanned downtime

Technical FAQs

What is the function of the 1440-VSE02-01RA?
It monitors vibration in machinery and provides input signals to the 1440-series control system.
Is it compatible with all 1440-series modules?
Yes, it works with standard 1440-series PLC and I/O modules.
What types of machinery can it monitor?
Motors, pumps, compressors, fans, and other rotating equipment.
Does it provide diagnostic indicators?
Yes, LEDs indicate module status, faults, and vibration thresholds.
What is the operating temperature range?
Rated for -20°C to 60°C industrial environments.
Can it trigger alerts or shutdowns?
Yes, it can communicate with the control system to initiate alarms or machine shutdowns when thresholds are exceeded.
Does it require external power?
Yes, it operates on the standard 24 VDC supply used by 1440-series modules.
Is it suitable for continuous monitoring?
Yes, designed for 24/7 industrial operation.
Can it be used with remote I/O extensions?
Yes, compatible with 1440-series remote I/O modules for distributed monitoring.
Does it support predictive maintenance strategies?
Yes, it provides real-time data that can be used for trend analysis and early fault detection.
