Introduction

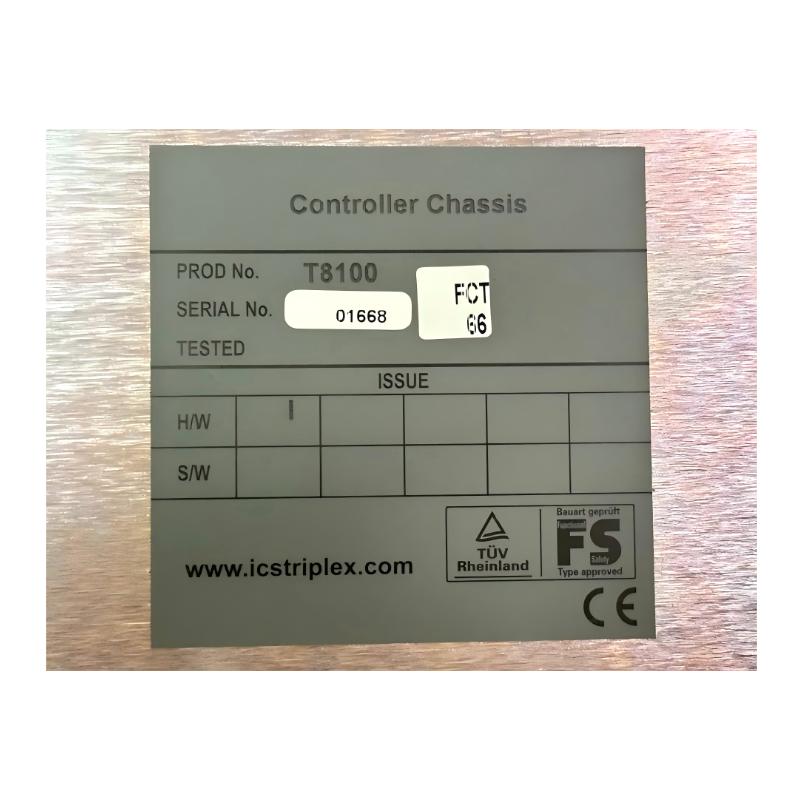

The ICS Triplex T8100 Controller Chassis is a robust and versatile housing solution designed for the Triplex T8100 safety and process control system. Engineered for industrial and critical infrastructure environments, this chassis provides a secure, organized platform for housing CPUs, I/O modules, power supplies, and communication components.
Its durable construction ensures long-term protection from vibration, dust, and other environmental hazards, while the modular design allows for easy installation, maintenance, and system expansion. Ideal for operators who require high reliability and operational flexibility, the T8100 chassis forms the backbone of safe and continuous automation operations.
Technical Specifications
|
Parameter |
Details |
|
Product Type |
Controller Chassis |
|
Compatible System |
ICS Triplex T8100 |
|
Module Slots |
12–16 configurable module bays (depending on configuration) |
|
Material |
Industrial-grade steel with powder-coated finish |
|
Cooling |
Passive ventilation; optional fan kits |
|
Mounting |
Rack or panel mount capable |
|
Dimensions (H × W × D) |
268 × 483 × 312 mm |
|
Weight |
5 kg |
|
Operating Temperature |
0°C to +55°C |
|
Storage Temperature |
–40°C to +70°C |
|
Humidity |
5–95% non-condensing |
|
Safety Standards |
Meets industrial electrical and mechanical safety requirements |
Recommended Related Models
|
Model |
Description |
|
T8100 CPU Module |
Core processing unit for T8100 safety systems |
|
T8100 Power Supply Module |
Redundant DC power for controller operation |
|
T8100 I/O Module |
Discrete and analog I/O for process signals |
|
T8100 Communication Module |
Network interface and field communication support |
|
T8100 Chassis Fan Kit |
Optional cooling solution for high-density configurations |
|
T8100 Rack Mount Kit |
Enables standard 19-inch panel or rack mounting |
|
T8100 Redundancy Controller |
Backup CPU module for fault-tolerant operation |
|
T8100 Terminal Block Set |
Facilitates organized field wiring connections |
|
T8100 Diagnostic Module |
System health and fault monitoring module |
|
T8100 Expansion Bays |
Additional slots for future system growth |
Popular ICS Triplex Models
|
Model |
Type |
|
T8100 CPU Module |
Main processing unit |
|
T8100 I/O Module |
Field signal input/output module |
|
T8100 Power Supply |
DC power distribution |
|
T8153 Controller |
High-performance T8153 CPU variant |
|
T8191 Safety Module |
Advanced triplex safety I/O |
|
T8100 Comm Module |
Ethernet and field network interface |
|
T8100 Redundant Chassis |
Dual-chassis fault-tolerant configuration |
|
T8100 Terminal Block |
Organized connection interface |
|
T8100 Expansion Module |
Additional I/O or functionality slots |
|
T8100 Diagnostic Panel |
Visual monitoring and system status panel |
