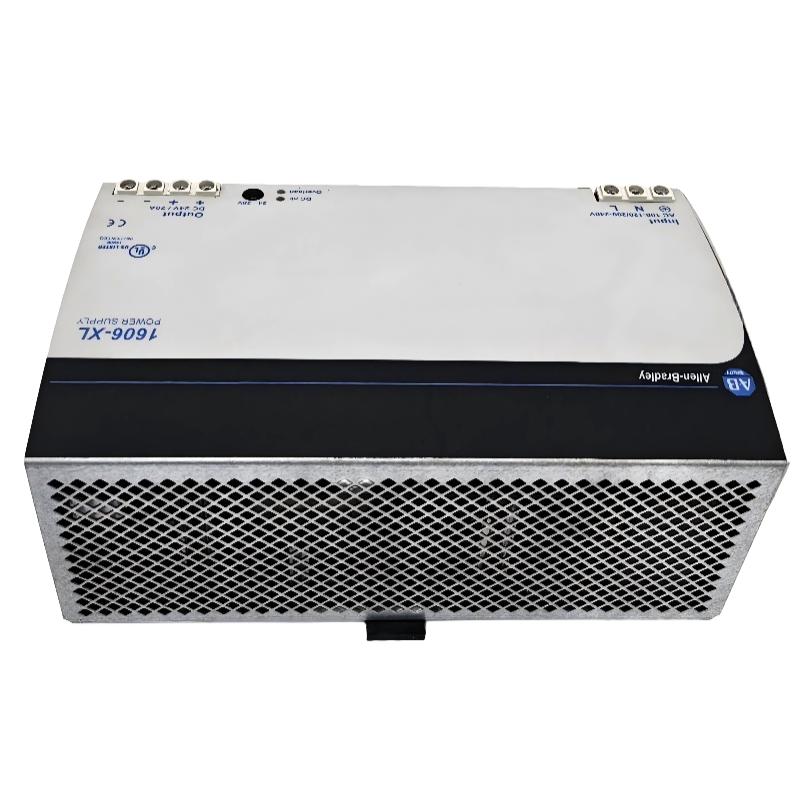

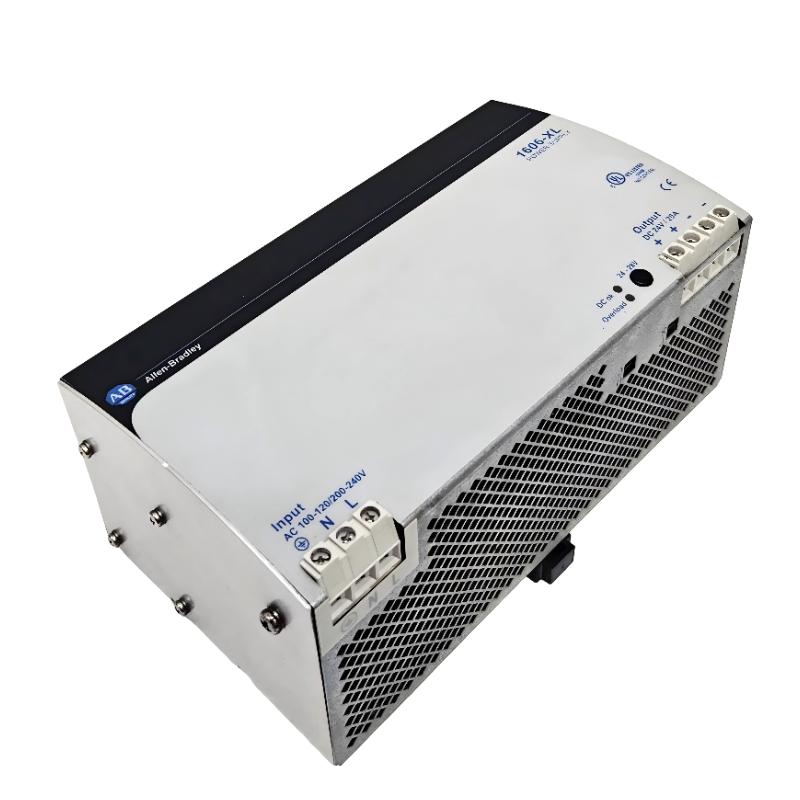

Name: Allen Bradley 1606-XL480EP Power Supply
Brand: Allen Bradley PLC
SKU: 6000
Availability: InStock
Rating: 5.0 (1 reviews)

Introduction

The Allen-Bradley 1606-XL480EP Power Supply delivers high-capacity, stable 24 VDC power for demanding industrial automation systems. Built for reliability and efficiency, it ensures continuous operation of PLCs, I/O modules, and control equipment even in challenging environments.

Technical Specifications

Feature	Specification
Module Type	Power Supply
Model	1606-XL480EP
Input Voltage	85–264 VAC / up to 370 VDC
Output Voltage	24 VDC
Output Current	20 A
Operating Temperature	-20°C to 70°C
Connectivity	Screw terminals
MTBF	100,000 hours
Dimensions	220 × 124 × 102 mm
Weight	2.5 kg

Recommended Related Models

1606-XL240E — 24 VDC, 10 A power supply for medium-load applications
1606-XL120E — 24 VDC, 5 A compact power supply
1606-XL360E — 24 VDC high-capacity power supply for industrial panels
1606-XL480E — Standard 24 VDC high-power supply variant
1606-XLS480E — Slim high-performance power supply for space-constrained systems

Popular Related Models

1606-XL240R — Redundant 24 VDC power supply for critical systems
1606-XL480R — Redundant high-capacity power supply
1606-XLP100E — Compact 24 VDC power solution for smaller applications
1606-XLS240E — Slim 24 VDC power supply with efficient heat dissipation
1606-XLS120E — Compact slim power supply for control cabinets

Applications

Supplying stable 24 VDC power to PLCs, I/O modules, and industrial control systems
Supporting high-load automation equipment in manufacturing and process industries
Integration in large-scale control panels requiring high-capacity power solutions
Enabling redundant power configurations for critical operations
Powering distributed control systems with consistent voltage output

Advantages

High Output Capacity: Designed to support demanding industrial loads with stable performance
Wide Input Range: Flexible AC/DC input compatibility for global installations
Industrial-Grade Reliability: Built to perform in harsh environments with continuous operation
Advanced Protection Features: Includes overload, short-circuit, and thermal protection
Efficient Heat Management: Optimized design reduces heat buildup and improves longevity
Scalable Power Solution: Suitable for both standalone and redundant system configurations

Technical FAQs

What is the main function of the 1606-XL480EP?
It converts AC input power into stable 24 VDC output for industrial automation equipment.
What input voltage range does this power supply support?
It supports a wide AC input range of 85–264 VAC and DC input up to 370 VDC.
What is the output current rating?
The module provides up to 20 A output at 24 VDC.
Is it suitable for high-load applications?
Yes, it is specifically designed for high-demand industrial systems requiring reliable power.
Does it include protection mechanisms?
Yes, it includes overload, overvoltage, short-circuit, and thermal protection.
Can it be used in redundant configurations?
Yes, it supports parallel operation for redundancy in critical systems.

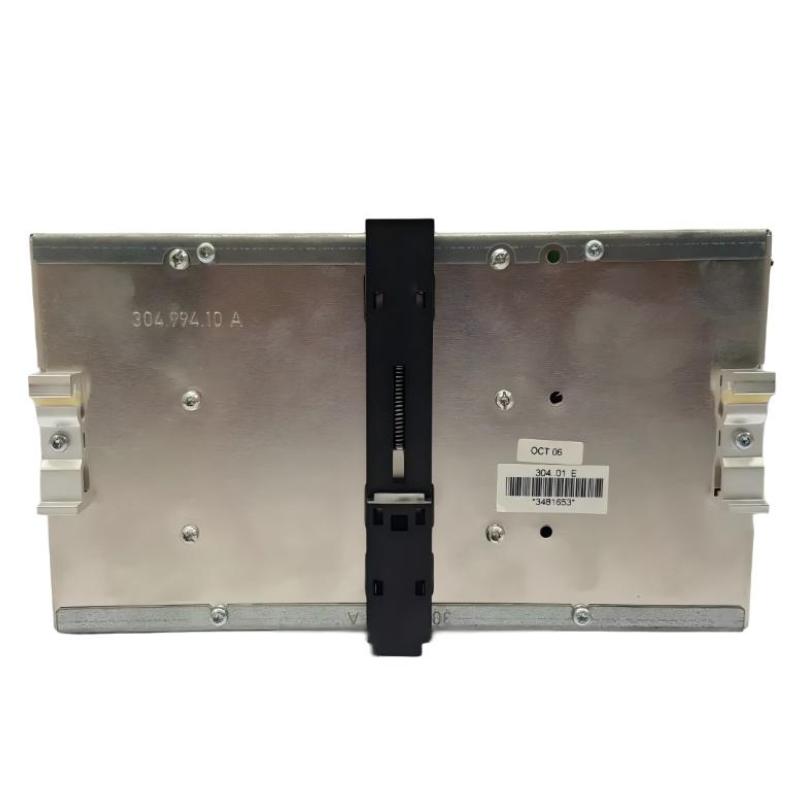

What mounting options are available?
It is designed for DIN rail mounting in industrial control panels.
Is it suitable for continuous operation?
Yes, it is engineered for 24/7 industrial use.
Does it provide diagnostic indicators?
Yes, LED indicators provide real-time status and fault information.
Can it operate in harsh industrial environments?
Yes, it is designed to withstand vibration, temperature variations, and electrical noise.
