Introduction

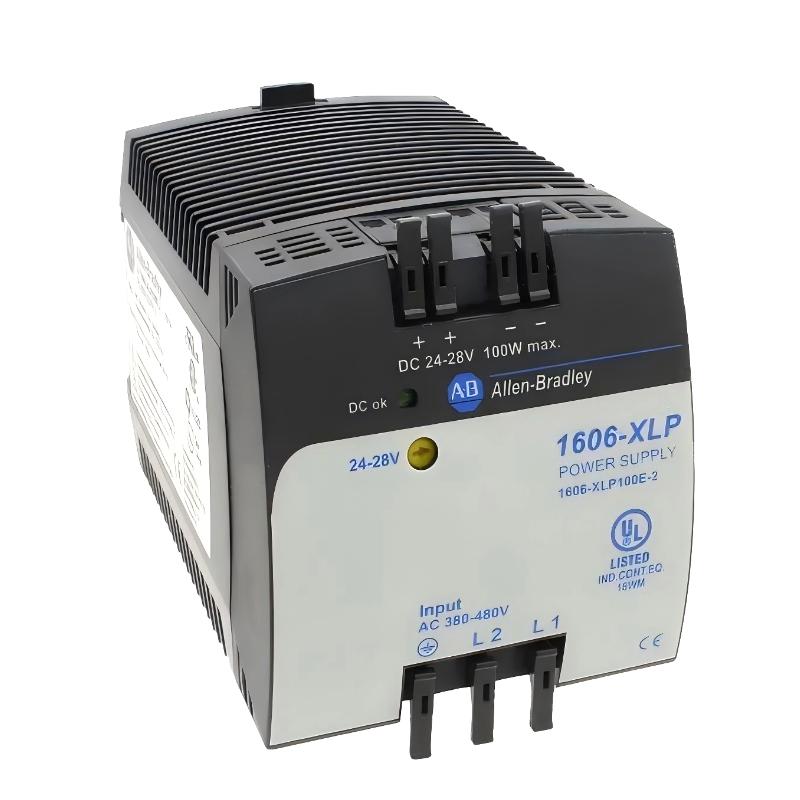

The Allen-Bradley 1606-XLP100E Power Supply is a compact and efficient solution for delivering stable 24 VDC power in industrial automation systems. Designed for smaller control panels and space-sensitive applications, it combines reliable performance with a streamlined form factor.With built-in protection features and high operational efficiency, this power supply ensures consistent system performance while reducing installation complexity and maintenance needs. It is an excellent choice for modern automation environments where space and reliability are equally critical.

Technical Specifications

Feature	Specification
Module Type	Power Supply
Model	1606-XLP100E
Input Voltage	85–264 VAC
Output Voltage	24 VDC
Output Current	4.2 A
Operating Temperature	-20°C to 70°C
Mounting	DIN rail
Connectivity	Screw terminals
Efficiency	Up to 90%
Dimensions	73 × 75 × 103 mm
Weight	0.36 kg

Recommended Related Models

1606-XLP50E — Compact 24 VDC power supply for lower load applications
1606-XLS120E — Slim power supply for narrow panel installations
1606-XL120E — 24 VDC, 5 A power supply for standard systems
1606-XLS240E — Slim 24 VDC power supply with higher output capacity
1606-XL240E — 24 VDC, 10 A industrial power supply

Popular Related Models

1606-XL480E — High-capacity 24 VDC power supply for large systems
1606-XL360E — Mid-to-high range power supply for industrial applications
1606-XLP80E — Compact power module for small automation systems
1606-XLS480E — Slim high-power supply for space-efficient panels
1606-XL240R — Redundant power supply for critical operations

Applications

Providing stable 24 VDC power for compact PLC and control systems
Powering sensors, actuators, and distributed I/O modules in automation setups
Integration into space-constrained control cabinets and panels
Supporting light to medium industrial loads in factory automation
Supplying reliable power for standalone machines and small systems

Advantages

Compact Design: Ideal for installations where panel space is limited
Reliable Output: Ensures consistent 24 VDC power for sensitive devices
High Efficiency: Optimized performance with low energy loss
Industrial Durability: Designed for stable operation in demanding environments
Integrated Protection: Safeguards against overload, short circuit, and overheating
Easy Integration: Quick DIN rail mounting and simple wiring

Technical FAQs

What is the main function of the 1606-XLP100E?
It converts AC input power into stable 24 VDC output for industrial automation devices.
What is the output current rating?
The module typically delivers up to 4.2 A at 24 VDC.
What input voltage range does it support?
It supports a wide AC input range of 85–264 VAC.
Is it suitable for compact control panels?
Yes, its small footprint makes it ideal for space-constrained installations.
Does it include protection features?
Yes, it includes overload, short-circuit, and thermal protection.
Can it be used for continuous operation?
Yes, it is designed for reliable 24/7 industrial use.
What mounting method is used?
It is designed for DIN rail mounting.
Does it provide diagnostic indicators?
Yes, LED indicators show operational status and faults.
Is it suitable for powering PLC systems?
Yes, it is commonly used for small PLCs and distributed I/O systems.
Can it operate in industrial environments?
Yes, it is built to handle temperature variations, vibration, and electrical noise.
