Introduction

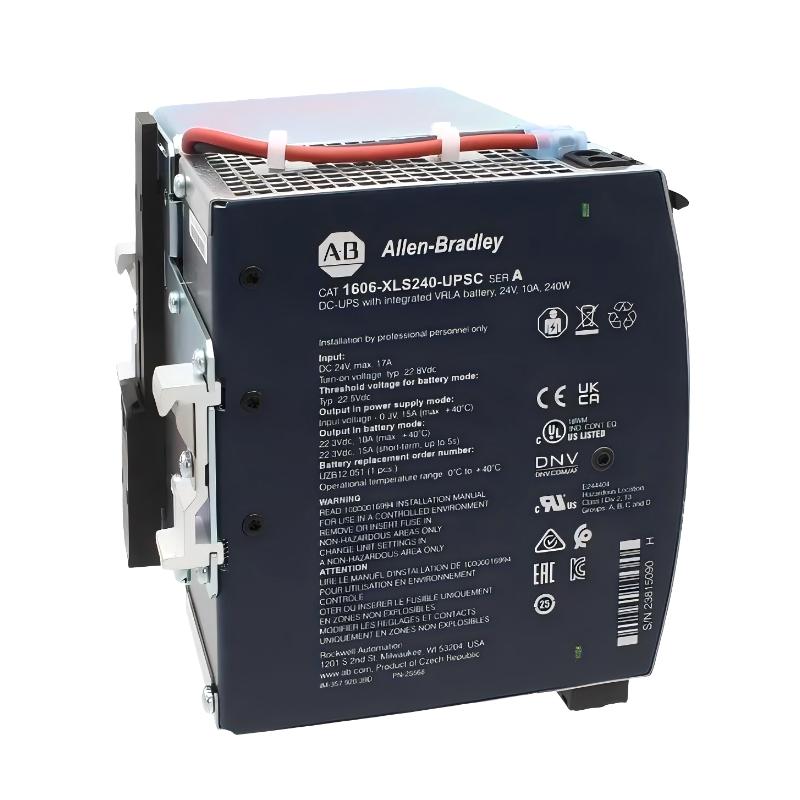

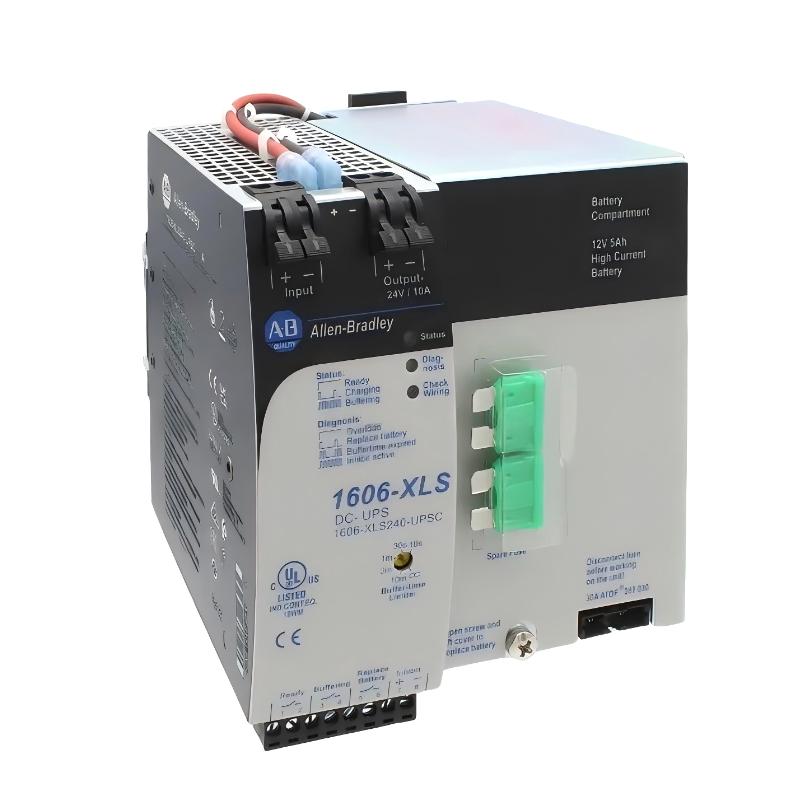

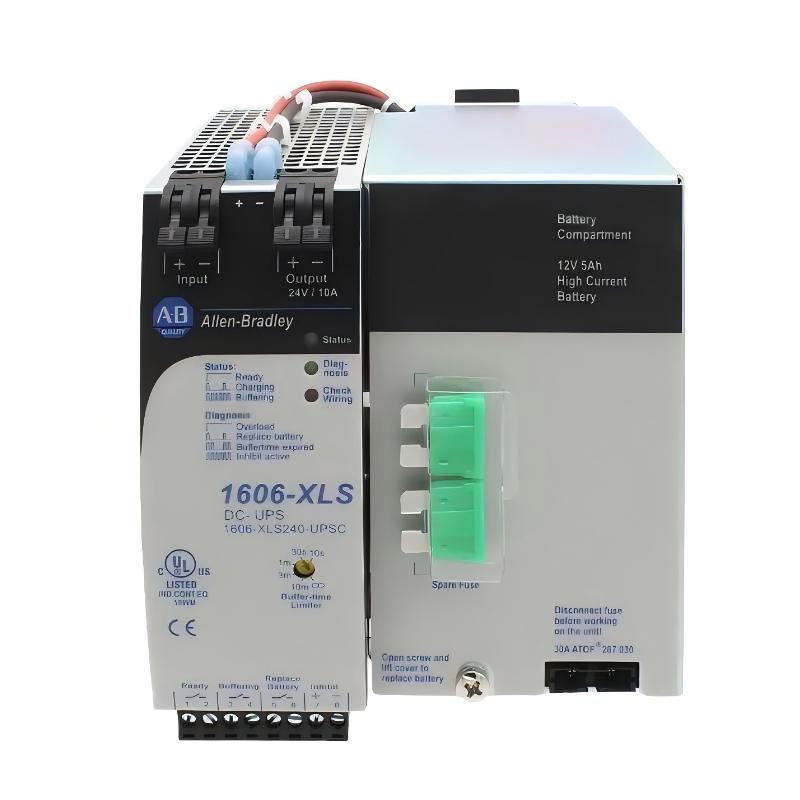

The Allen-Bradley 1606-XLS240-UPSC Power Supply is a high-performance solution that combines reliable 24 VDC power delivery with integrated UPS functionality. Designed for critical automation systems, it ensures uninterrupted operation even during power disturbances.Its compact and robust design simplifies system architecture by reducing the need for separate backup units, while advanced protection and monitoring features enhance overall system stability and efficiency. Ideal for applications where uptime is essential.

Technical Specifications

Feature	Specification
Module Type	Power Supply with Integrated DC UPS
Model	1606-XLS240-UPSC
Input Voltage	85–264 VAC
Output Voltage	24 VDC
Output Current	10 A
UPS Function	Yes (external battery required)
Operating Temperature	-20°C to 70°C
Mounting	DIN rail
Connectivity	Screw terminals
Protection Features	Overload, short-circuit, overvoltage, battery protection
Dimensions	124 × 119 × 123 mm
Weight	2.85 kg

Recommended Related Models

1606-XLS240E — Standard slim 24 VDC power supply without UPS function
1606-XLS180B — Slim power supply for medium-load applications
1606-XLP100E — Compact power supply for smaller systems
1606-XL240E — General-purpose 24 VDC industrial power supply
1606-XLS480E — High-capacity slim power supply for demanding applications

Popular Related Models

1606-XLS120E — Slim 24 VDC power supply for light loads
1606-XL480E — High-output power supply for large systems
1606-XL360E — Mid-to-high range industrial power module
1606-XLP50E — Compact low-power solution
1606-XL240R — Redundant power supply for critical operations

Applications

Providing uninterrupted 24 VDC power for PLCs and industrial control systems
Supporting critical automation processes requiring backup power capability
Integration into control panels for machines with high reliability demands
Powering I/O modules, communication devices, and field instruments
Ensuring system continuity during brief power interruptions or fluctuations

Advantages

Integrated UPS Functionality: Combines power supply and DC UPS in a single unit for enhanced system reliability
Seamless Power Transition: Maintains continuous output during input power loss
High Efficiency Design: Reduces energy consumption and thermal load in control cabinets
Compact Integration: Eliminates the need for separate UPS modules, saving space and wiring effort
Advanced Protection Features: Includes overload, short-circuit, and battery management protection
Industrial Durability: Built for long-term operation in demanding environments

Technical FAQs

What makes the 1606-XLS240-UPSC different from standard power supplies?
It integrates a DC UPS function, allowing continued operation during power interruptions.
What is the output voltage and current?
Provides 24 VDC output with a typical current rating of 10 A.
Does it require an external battery?
Yes, it works with external DC UPS battery modules for backup operation.
How does it handle power failures?
It automatically switches to battery mode without interrupting output voltage.
Is it suitable for critical systems?
Yes, it is designed for applications requiring high availability and uptime.
What input voltage range does it support?
Wide AC input range of 85–264 VAC.
Does it include protection features?
Yes, it includes overload, short-circuit, overvoltage, and battery protection.
Can it be mounted on a DIN rail?
Yes, it is designed for standard DIN rail installation.
Does it provide status monitoring?
Yes, LED indicators provide real-time system and battery status information.
Is it suitable for continuous industrial use?
Yes, it is engineered for 24/7 operation in automation environments.
