Introduction

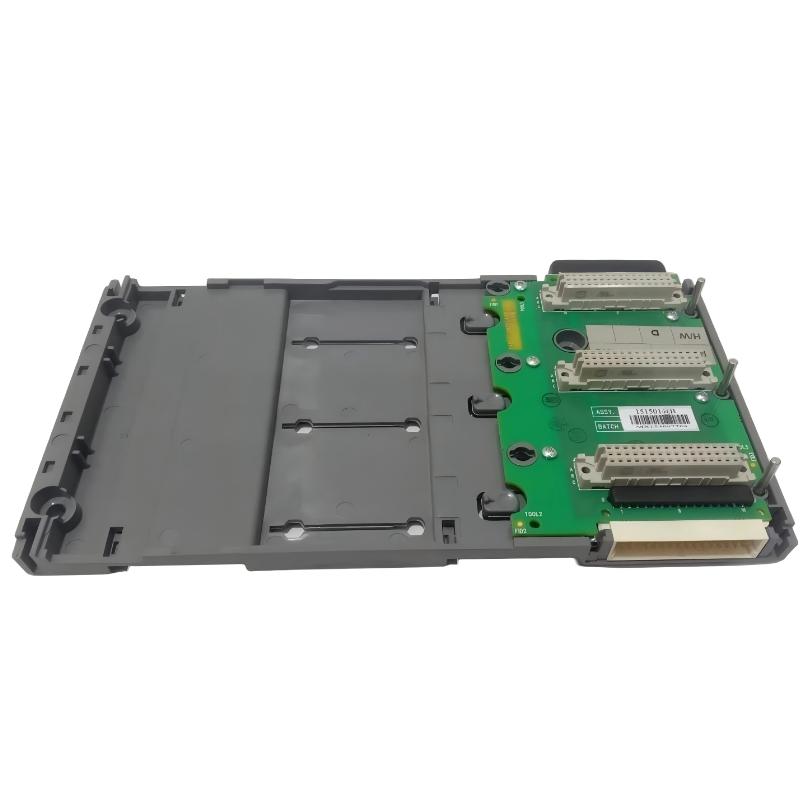

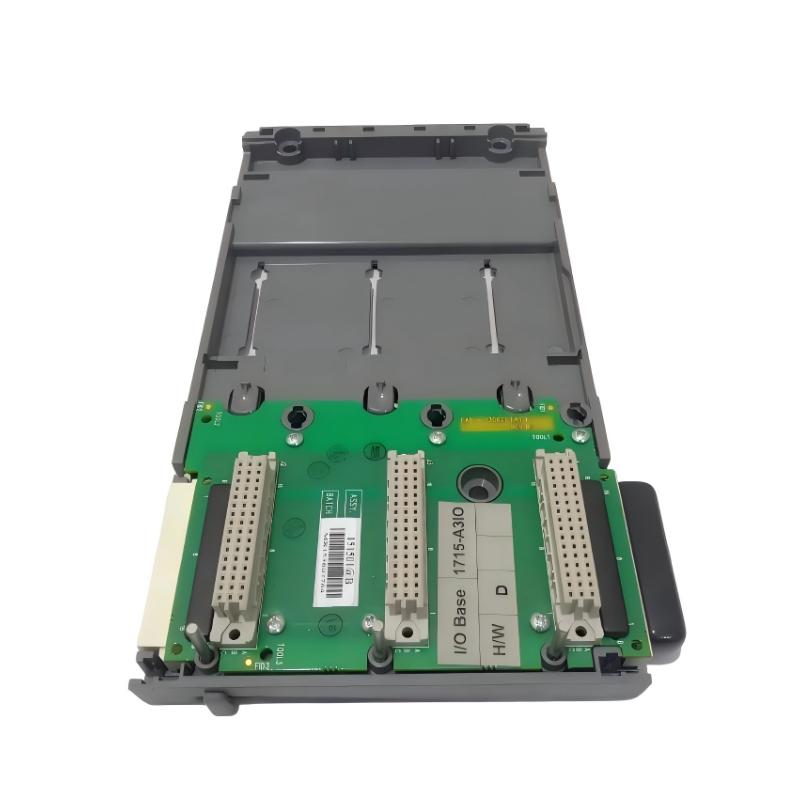

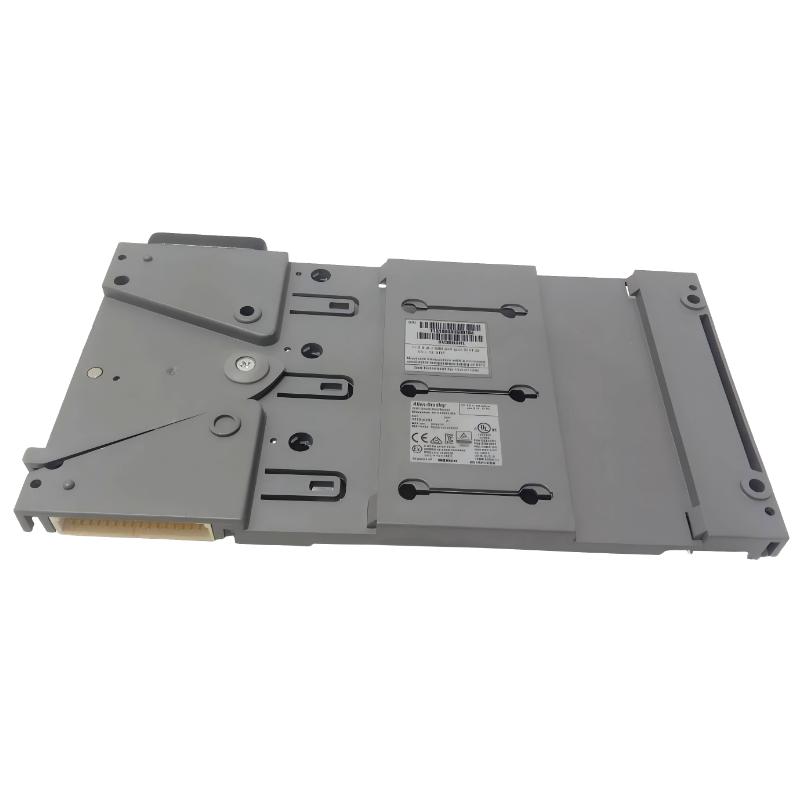

The Allen-Bradley 1715-A3IO Redundant I/O Module Base is engineered to support high-availability automation systems where uptime is critical. It provides a reliable platform for redundant I/O modules, ensuring continuous operation even in the event of component failure.

Designed for demanding industrial environments, this module base enhances system resilience while simplifying installation and maintenance. It is an essential component for industries that require uninterrupted control and monitoring capabilities.

Technical Specifications

Feature	Specification
Module Type	Redundant I/O Module Base
Model	1715-A3IO
System Compatibility	Redundant I/O systems
Mounting	Panel/Rack mounting
Connectivity	Backplane connections for I/O modules
Operating Temperature	-20°C to 60°C
Construction	Industrial-grade materials
Dimensions	233 × 126 × 18 mm
Weight	0.22 kg

Recommended Related Models

1715-A2IO — Redundant I/O module base for smaller configurations
1715-IB16D — Digital input module for redundant I/O systems
1715-OB16D — Digital output module for control applications
1715-TB8DE — Terminal base for field wiring connections
1715-IF16 — Analog input module for process monitoring

Popular Related Models

1715-OF8 — Analog output module for precise control applications
1715-IB32D — High-density digital input module
1715-OB32D — High-density digital output module
1715-TB16DE — Terminal base for extended I/O connections
1715-AENTR — Redundant EtherNet/IP adapter module

Applications

Providing a redundant mounting and connection platform for I/O modules in critical systems
Supporting high-availability control architectures in process automation
Integration into distributed control systems requiring fault tolerance
Enabling seamless operation in oil & gas, power generation, and chemical industries
Supporting system redundancy for minimized downtime and continuous operation

Advantages

Redundant Architecture Support: Designed to ensure uninterrupted operation in critical applications
High System Availability: Minimizes risk of failure through dual-path connectivity
Robust Industrial Design: Engineered for long-term use in demanding environments
Compact Form Factor: Efficient use of panel space while supporting redundancy
Simplified Maintenance: Enables quick module replacement without complex rewiring
Reliable Connectivity: Ensures stable communication between I/O modules and controllers

Technical FAQs

What is the function of the 1715-A3IO module base?
It provides a redundant mounting and connection platform for compatible I/O modules.
What systems is it designed for?
It is used within Allen-Bradley redundancy-enabled control and I/O systems.
Does it support hot-swapping of modules?
Yes, it is designed to allow module replacement with minimal system interruption.
Is it suitable for safety-critical applications?
Yes, it is commonly used in systems requiring high availability and reliability.
What type of redundancy does it support?
It supports redundant communication and power paths for I/O modules.
Can it be used in distributed control systems?
Yes, it is ideal for distributed and remote I/O configurations.
What mounting method is used?
It is designed for panel or rack mounting depending on system configuration.
Does it require additional accessories?
It may require compatible redundant I/O modules and connectors for full operation.
Is it suitable for harsh industrial environments?
Yes, it is built to withstand vibration, temperature variation, and electrical noise.
Can it improve system uptime?
Yes, redundancy significantly reduces downtime and enhances system reliability.
