Introduction

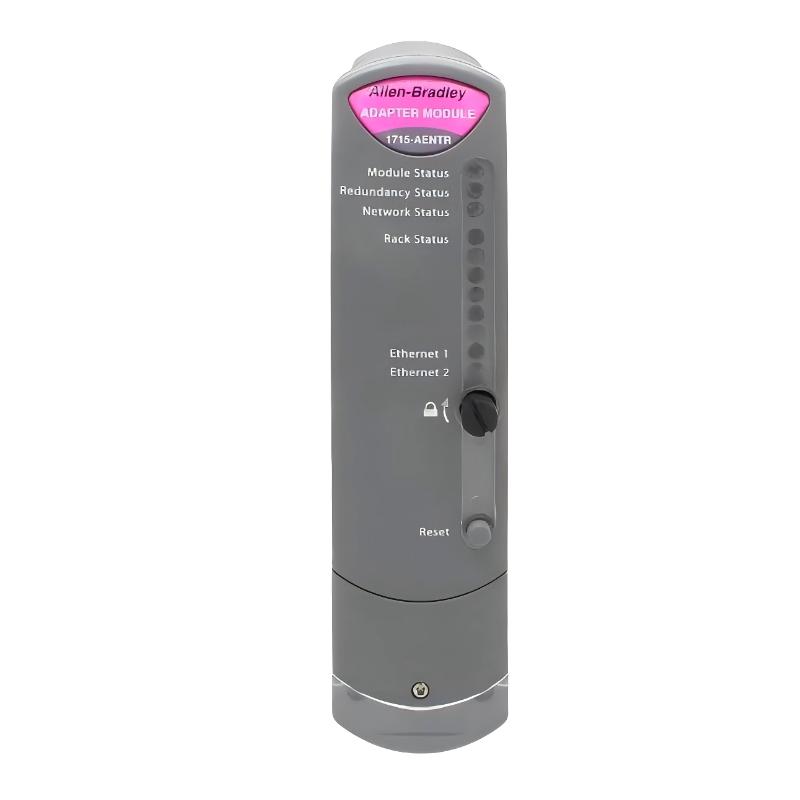

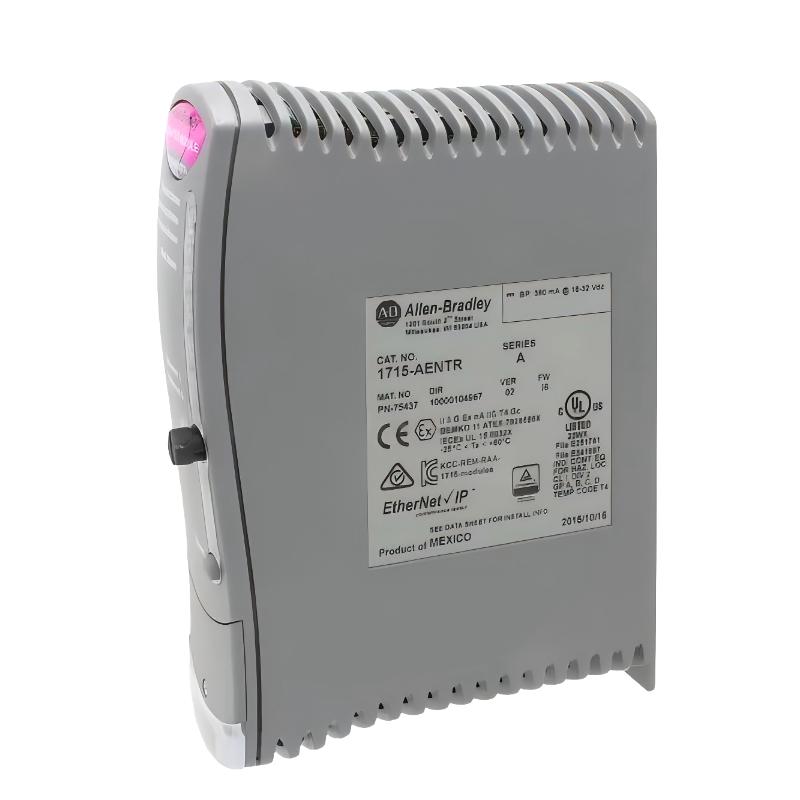

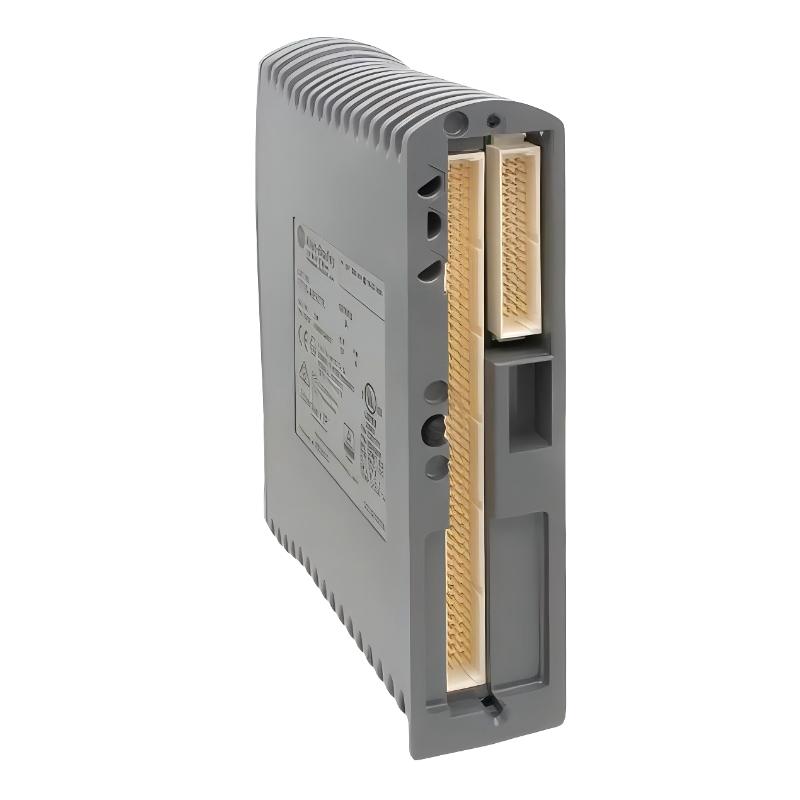

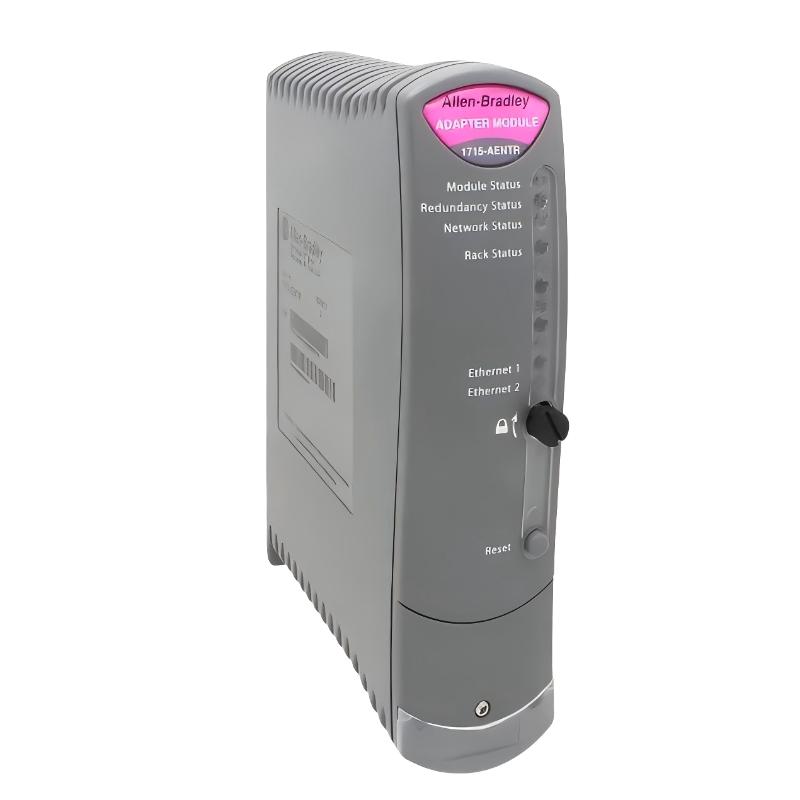

The Allen-Bradley 1715-AENTR Ethernet Adapter Module is designed to deliver reliable and high-speed communication for redundant I/O systems. By supporting EtherNet/IP connectivity with dual-port redundancy, it ensures uninterrupted data exchange in critical automation environments.

Its rugged construction and seamless integration with 1715 I/O platforms make it a dependable solution for distributed control systems, helping improve system uptime and operational efficiency in demanding industrial applications.

Technical Specifications

Feature	Specification
Module Type	Ethernet Adapter Module
Model	1715-AENTR
Communication Protocol	EtherNet/IP
Network Ports	Dual Ethernet ports (RJ45)
System Compatibility	1715 Redundant I/O System
Operating Temperature	-20°C to 60°C
Mounting	Panel/Rack mounting
Connectivity	Backplane and Ethernet interface
Dimensions	166 × 42 × 118 mm
Weight	0.42 kg

Recommended Related Models

1715-A3IO — Redundant I/O module base for high-availability systems
1715-A2IO — Compact redundant I/O base for smaller configurations
1715-IB16D — Digital input module for redundant I/O platforms
1715-OB16D — Digital output module for control applications
1715-TB8DE — Terminal base for field wiring connections

Popular Related Models

1715-IF16 — Analog input module for process monitoring
1715-OF8 — Analog output module for precision control
1715-IB32D — High-density digital input module
1715-OB32D — High-density digital output module
1715-TB16DE — Extended terminal base for I/O expansion

Applications

Enabling EtherNet/IP communication for redundant I/O systems
Connecting distributed I/O modules to central PLC controllers
Supporting high-availability network architectures in process industries
Integration into control systems requiring real-time data exchange
Providing reliable communication for critical automation applications

Advantages

Redundant Network Capability: Supports dual EtherNet/IP connections for enhanced system availability
High-Speed Communication: Ensures fast and reliable data exchange across industrial networks
Seamless Integration: Designed for compatibility with 1715 redundant I/O platforms
Robust Industrial Design: Performs reliably in harsh environmental conditions
Flexible Network Configuration: Supports distributed and scalable control system architectures
Improved System Uptime: Minimizes communication failures and enhances operational continuity

Technical FAQs

What is the main function of the 1715-AENTR module?
It acts as an EtherNet/IP adapter, enabling communication between I/O modules and control systems.
Does it support network redundancy?
Yes, it provides dual Ethernet ports for redundant network configurations.
What communication protocol does it use?
It uses the EtherNet/IP industrial communication protocol.
Is it compatible with all Allen-Bradley PLCs?
It is compatible with PLCs supporting EtherNet/IP communication.
Can it be used in distributed I/O systems?
Yes, it is designed for distributed and remote I/O applications.
What is the operating temperature range?
It typically operates within -20°C to 60°C industrial conditions.
Does it support real-time data exchange?
Yes, it enables real-time communication between field devices and controllers.
Is it suitable for critical applications?
Yes, it is ideal for systems requiring high availability and reliability.
What mounting method is used?
It is designed for panel or rack mounting within control cabinets.
Does it require additional modules for operation?
Yes, it works alongside redundant I/O bases and modules within the 1715 system.
