Introduction

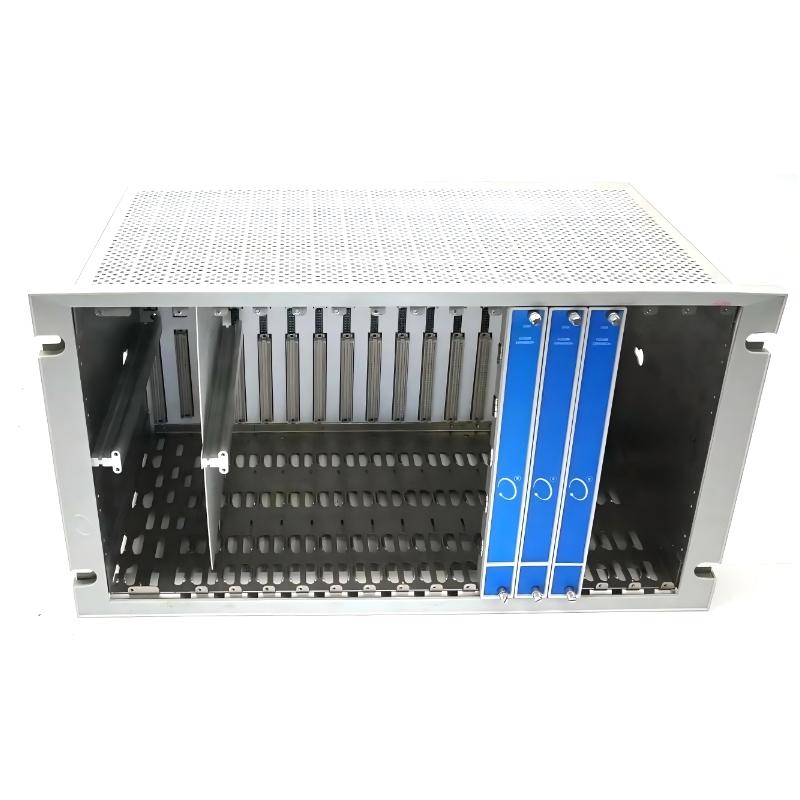

The Bently Nevada 3500/05-01-01-00-00 System Rack provides a secure and organized platform for up to 14 half-height 3500 Series modules.
Its industrial-grade design ensures robust performance in harsh plant environments, while facilitating airflow, module access, and system maintenance.
This rack serves as the backbone of 3500 Series monitoring systems, enabling flexible module placement, expansion, and a professional appearance for industrial monitoring applications.

Technical Specifications

Parameter	Description
Product Type	3500/05 System Rack
Model	3500/05-01-01-00-00
Module Capacity	14 half-height modules
Rack Size	19-inch standard
Material	Industrial-grade steel
Installation	Horizontal 19-inch rack mount
System Compatibility	Bently Nevada 3500 Series modules
Weight	4.5 kg

Recommended Related Models

Model	Description
3500/22	3500 Series Vibration Monitor Module
3500/23	3500 Series Vibration Monitor Module
3500/25	3500 Series Proximity Probe Module
3500/32	3500 Series Speed & Keyphasor Module
3500/45	3500 Series Overspeed Trip Module
3500/62	3500 Series Analog Output Module
3500/64	3500 Series Digital Output Module
3500/94M	10-inch Touchscreen Display
3500/05 125565-01	Half-height Module Card Guide Rack
3500/05 130768-01	Full-height Blank Monitor Cover Kit

Popular Related Models

Model	Description
3500/05-01-01-00-00	3500/05 System Rack
3500/05-01-00-00-01	3500/05 System Rack
3500/22	Vibration monitoring module
3500/32	Speed & Keyphasor module
3500/94M	Touchscreen display module
3500/62	Analog output module
3500/64	Digital output module
3500/25	Proximity probe module
3500/45	Overspeed trip module
3500/50	Power supply module

Applications

The Bently Nevada 3500/05-01-01-00-00 System Rack is designed to provide a robust and organized framework for housing 3500 Series monitoring modules.
Key applications include:

Hosting multiple 3500 Series modules for machinery monitoring
Centralizing I/O connections for vibration, speed, and process monitoring
Supporting industrial plants in power generation, oil & gas, and chemical sectors
Enabling organized and maintainable system setups
Allowing flexible expansion and reconfiguration of monitoring systems

Advantages

Accommodates up to 14 half-height modules in a standard 19-inch rack
Industrial-grade construction ensures stability and long-term reliability
Optimized layout promotes proper airflow and module cooling
Simplifies module installation and removal for efficient maintenance
Organized cable management reduces wiring errors and improves system clarity
Compatible with all 3500 Series modules, ensuring seamless integration
Lightweight yet durable, facilitating transport and installation
Professional design for a neat and structured monitoring system setup

FAQs

1. How many modules can this rack support?
The rack supports up to 14 half-height 3500 Series modules.

2. Can it house full-height modules?
No, it is specifically designed for half-height modules only.

3. What standard rack size is used?
This system rack follows the 19-inch standard.

4. Can modules be added or removed while powered?
No, installation or removal of modules should be done with the system powered down.

5. Does the rack provide active cooling?
No, but the design allows for proper airflow to maintain module temperature.

6. Is the rack suitable for environments with vibration?
Yes, it is built to withstand typical industrial vibration and mechanical stress.

7. Can it be mounted both horizontally and vertically?
It is designed primarily for horizontal 19-inch rack installation.

8. Are power and signal connections included?
Power and signal connections are made via the module backplanes; the rack provides guides and slots.

9. Is it compatible with previous Bently Nevada 3500 modules?
Yes, all half-height 3500 Series modules are supported.

10. What materials are used in the construction?
The rack is constructed from industrial-grade steel for durability and long-term reliability.
